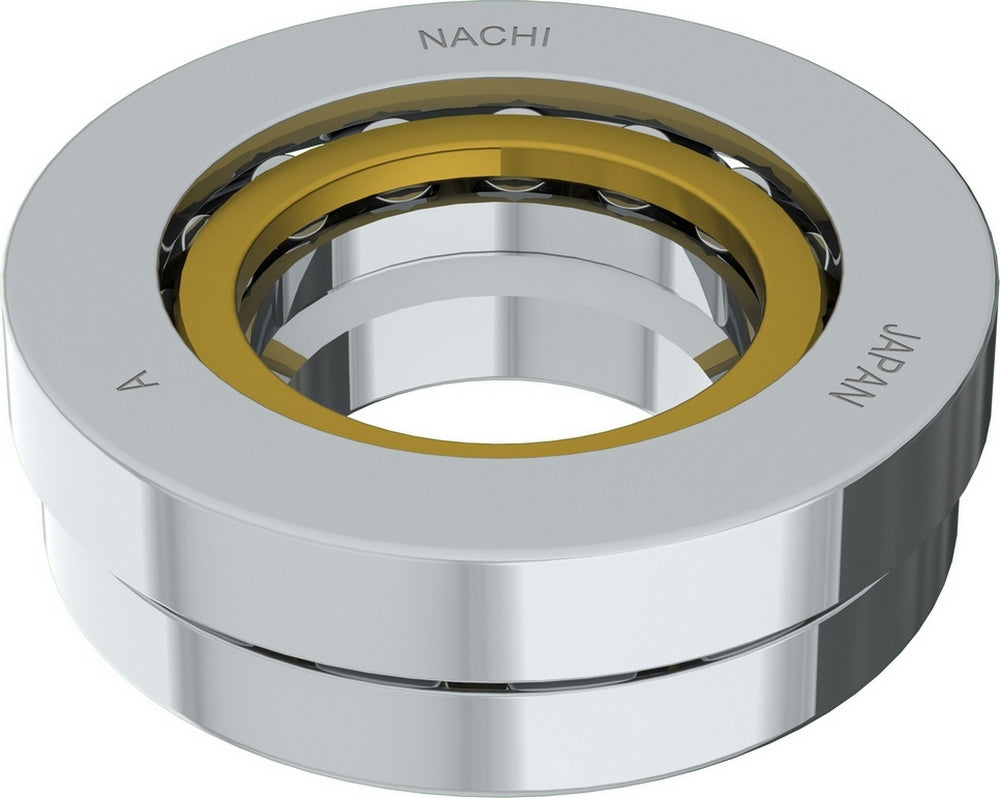

Nachi America 29330EN Spherical Roller Bearings

Nachi America 29330EN Spherical Roller Bearings

Dropship

SKU kpi113-29330EN

$1,529.28 USD
$1,529.28 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Ball Bearings
country_of_origin: Japan
inner_diameter: 150 mm
manufacture: Nachi America
mpn: 29330EN
outer_diameter: 250 mm
subcategory: Spherical Roller Bearings
upc: 4991893856583
weight: 25.79
width: 60 mm

Product Description

NACHI Spherical Roller Thrust Bearings utilize barrel shaped rollers to manage extreme thrust loads while rotating with low friction and allowing for up to 2° of angular misalignment. There are two basic designs

  • A conventional “E-Type” design uses a machined brass cages while the “EX-Type” design uses an optimized internal design, larger rollers and a stamped steel cage for higher loads and longer life.

    Additional Information

    Inner Ring Material Steel
    Dynamic Load Rating 735000 N
    Bearing Type Thrust
    ISO Precision Class P0
    Limiting Speed - Oil 1600 rpm
    Cage Material Machined Brass
    Bore Type Cylindrical Bore
    Family Name Spherical Roller Bearings
    Outer Ring Material Steel
    Radial Internal Clearance CN/C0
    Static Load Rating 2840000 N
    Rolling Element Material Steel
    Temperature Range [Max] 392 °F
    EAN or UPC 4991893856583
