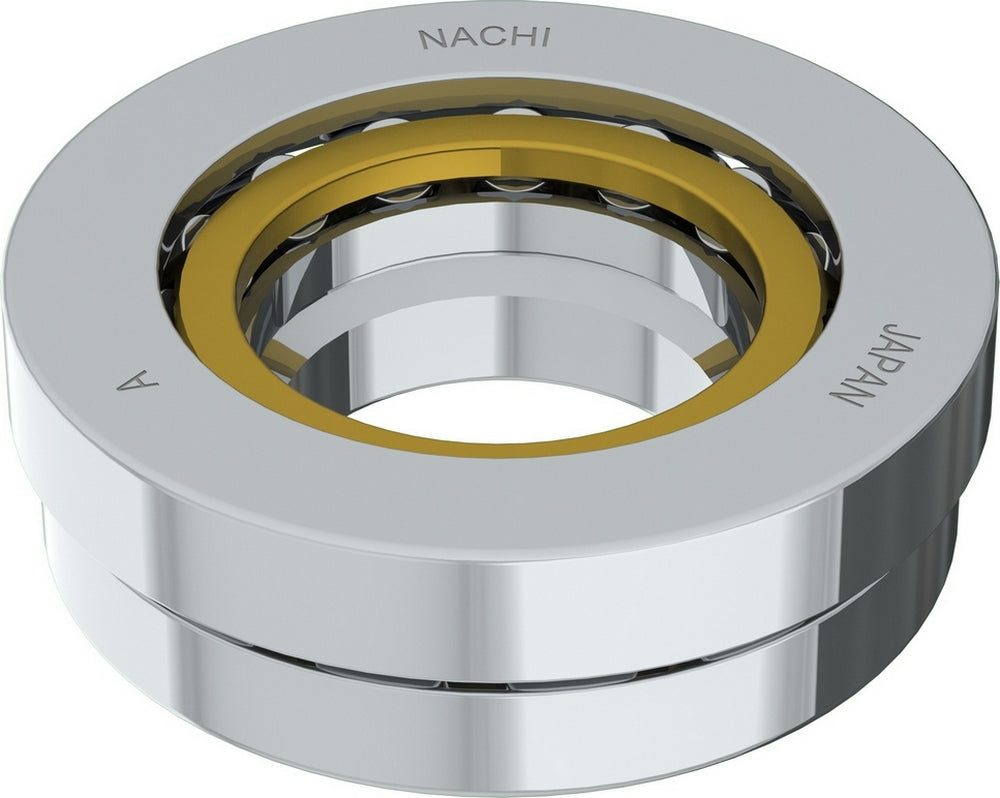

Nachi America 29336EMY Spherical Roller Bearings

Nachi America 29336EMY Spherical Roller Bearings

Dropship

SKU kpi113-29336EMY

$3,278.25 USD
$3,278.25 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Ball Bearings
country_of_origin: Japan
inner_diameter: 180 mm
manufacture: Nachi America
mpn: 29336EMY
outer_diameter: 300 mm
subcategory: Spherical Roller Bearings
upc: 4991893557060
weight: 45.59
width: 73 mm

Product Description

NACHI Spherical Roller Thrust Bearings utilize barrel shaped rollers to manage extreme thrust loads while rotating with low friction and allowing for up to 2° of angular misalignment. There are two basic designs

  • A conventional “E-Type” design uses a machined brass cages while the “EX-Type” design uses an optimized internal design, larger rollers and a stamped steel cage for higher loads and longer life.

    Additional Information

    Rolling Element Material Steel
    Outer Ring Material Steel
    Temperature Range [Max] 392 °F
    Radial Internal Clearance CN/C0
    Bore Type Cylindrical Bore
    Bearing Type Thrust
    Family Name Spherical Roller Bearings
    Static Load Rating 3950000 N
    Limiting Speed - Oil 1300 rpm
    Dynamic Load Rating 1020000 N
    ISO Precision Class P0
    Inner Ring Material Steel
    Cage Material Machined High Strength Brass Cage
    EAN or UPC 4991893557060
