category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
40 mm
manufacture:
Nachi America
mpn:
40TAB09DUP4
outer_diameter:
90 mm
subcategory:
Ball Screw Support Bearing
upc:
4991893584271
weight:
2.74
width:
20 mm

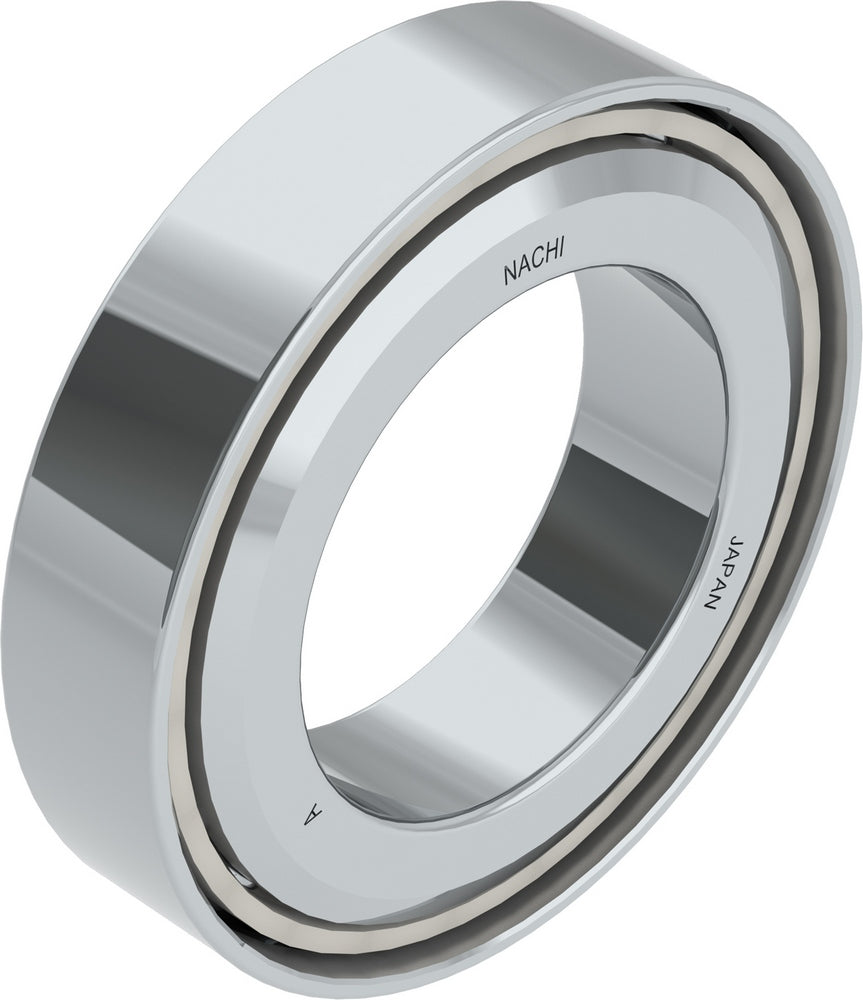

Product Description
This bearing type is used for supporting the ball screws that are used as actuators of high precision and high speed machines, precision measurement equipment, robots, etc. This is a precision and high ability bearing.
Features
NACHI's TAB Series Ball Srew Support Bearings are availible open, contact sealed, or non-contact sealed.
Additional Information
Ball Material Steel
Contact Angle 60°
Rolling Element Material Steel
Limiting Speed - Grease 1984.5 rpm
Outer Ring Material Steel
Seals or Shields No
Inner Ring Material Steel
Bore Type Cylindrical Bore
ISO Precision Class P4
Universally (Flush) Ground Yes
Preload Level Medium
Dynamic Load Rating 106600 N
Bearing Type Ball Screw Support Bearing
Cage Material Polyamide Resin
Static Load Rating [Max] 202000 N
Temperature Range [Max] 248 °F
Limiting Speed - Oil 2520 rpm
Inch/Metric Metric
EAN or UPC 4991893584271
