category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
40 mm
manufacture:
Nachi America
mpn:
40TAB09UP4
outer_diameter:
90 mm
subcategory:
Ball Screw Support Bearing
upc:
4991893584783
weight:
1.37
width:
20 mm
Product Description

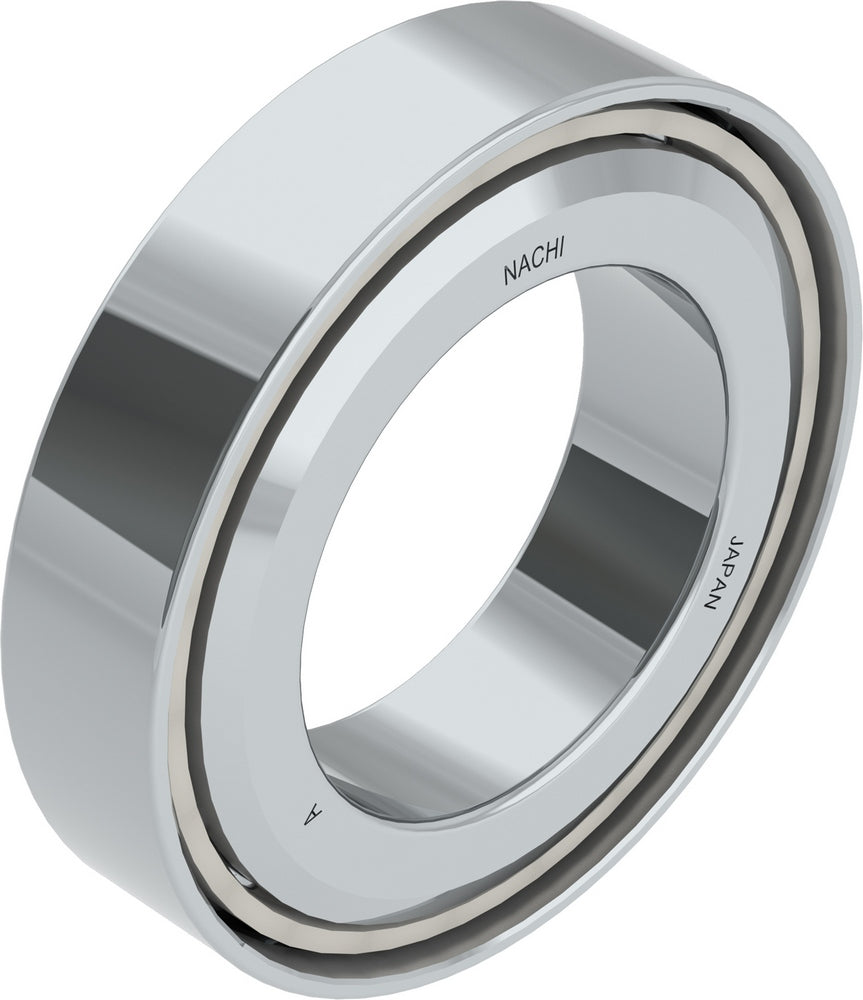

Nachi America - 40TAB09UP4 This bearing type is used for supporting the ball screws that are used as actuators of high precision and high speed machines, precision measurement equipment, robots, etc. This is a precision and high ability bearing.
Features
NACHI's TAB Series Ball Srew Support Bearings are availible open, contact sealed, or non-contact sealed.
Additional Information
Contact Angle 60°
Inner Ring Material Steel
Bore Type Cylindrical Bore
Inch/Metric Metric
Universally (Flush) Ground Yes
Temperature Range [Max] 248 °F
Ball Material Steel
Cage Material Polyamide Resin
Dynamic Load Rating 65000 N
Seals or Shields No
Bearing Type Ball Screw Support Bearing
ISO Precision Class P4
Preload Level Medium
Static Load Rating [Max] 101000 N
Limiting Speed - Oil 4000 rpm
Rolling Element Material Steel
Outer Ring Material Steel
Limiting Speed - Grease 3150 rpm
EAN or UPC 4991893584783
