category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
45 mm
manufacture:
Nachi America
mpn:
45TAB10DUP4
outer_diameter:
100 mm
subcategory:
Ball Screw Support Bearing
upc:
4991893587425
weight:
3.48
width:
20 mm
Product Description

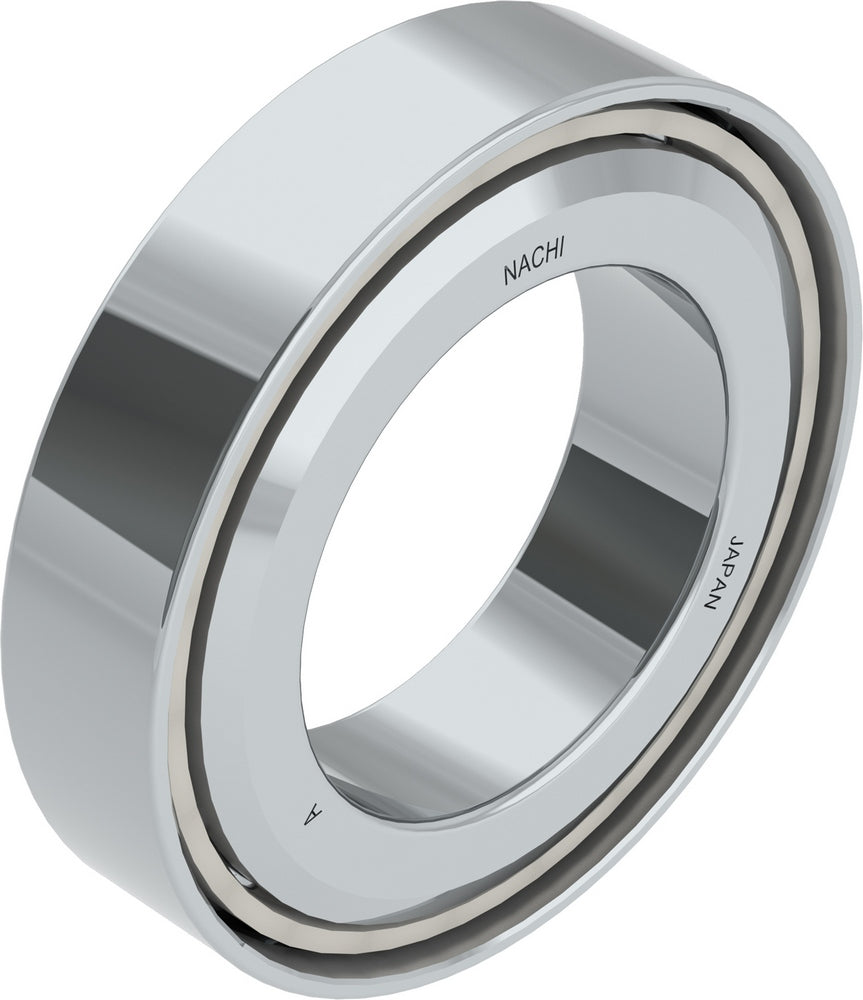

Nachi America - 45TAB10DUP4 This bearing type is used for supporting the ball screws that are used as actuators of high precision and high speed machines, precision measurement equipment, robots, etc. This is a precision and high ability bearing.
Features
NACHI's TAB Series Ball Srew Support Bearings are availible open, contact sealed, or non-contact sealed.
Additional Information
Inner Ring Material Steel
Static Load Rating [Max] 226000 N
ISO Precision Class P4
Preload Level Medium
Limiting Speed - Grease 1795.5 rpm
Inch/Metric Metric
Universally (Flush) Ground Yes
Contact Angle 60°
Bearing Type Ball Screw Support Bearing
Dynamic Load Rating 111520 N
Rolling Element Material Steel
Limiting Speed - Oil 2205 rpm
Ball Material Steel
Bore Type Cylindrical Bore
Cage Material Polyamide Resin
Temperature Range [Max] 248 °F
Outer Ring Material Steel
Seals or Shields No
EAN or UPC 4991893587425
