category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
45 mm
manufacture:
Nachi America
mpn:
45TAB10UP4
outer_diameter:
100 mm
subcategory:
Ball Screw Support Bearing
weight:
1.74
width:
20 mm
Product Description

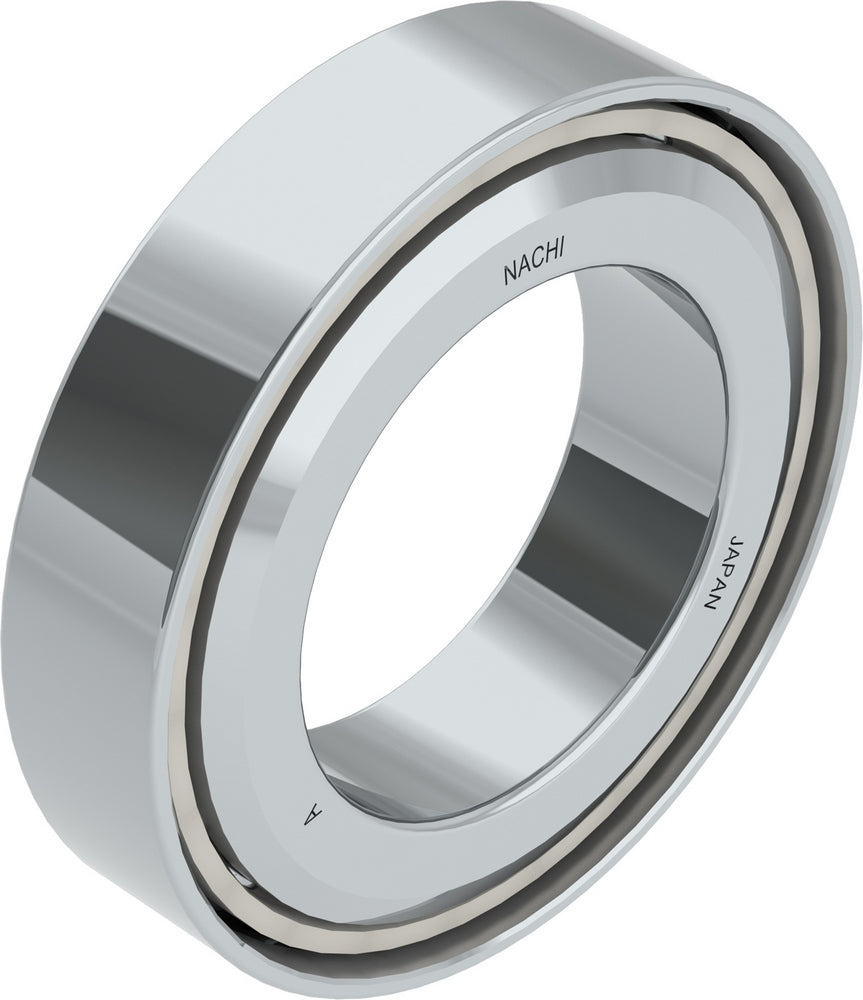

Nachi America - 45TAB10UP4 This bearing type is used for supporting the ball screws that are used as actuators of high precision and high speed machines, precision measurement equipment, robots, etc. This is a precision and high ability bearing.
Features
NACHI's TAB Series Ball Srew Support Bearings are availible open, contact sealed, or non-contact sealed.
Additional Information
Ball Material Steel
Seals or Shields No
Preload Level Medium
Contact Angle 60°
Cage Material Polyamide Resin
Bore Type Cylindrical Bore
Limiting Speed - Grease 2850 rpm
Inch/Metric Metric
Limiting Speed - Oil 3500 rpm
Inner Ring Material Steel
Static Load Rating [Max] 113000 N
Universally (Flush) Ground Yes
Outer Ring Material Steel
Temperature Range [Max] 248 °F
Rolling Element Material Steel
ISO Precision Class P4
Dynamic Load Rating 68000 N
Bearing Type Ball Screw Support Bearing
