category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
50 mm
manufacture:
Nachi America
mpn:
50TAB10UP4
outer_diameter:
100 mm
subcategory:
Ball Screw Support Bearing
upc:
4991893593457
weight:
1.59
width:
20 mm
Product Description

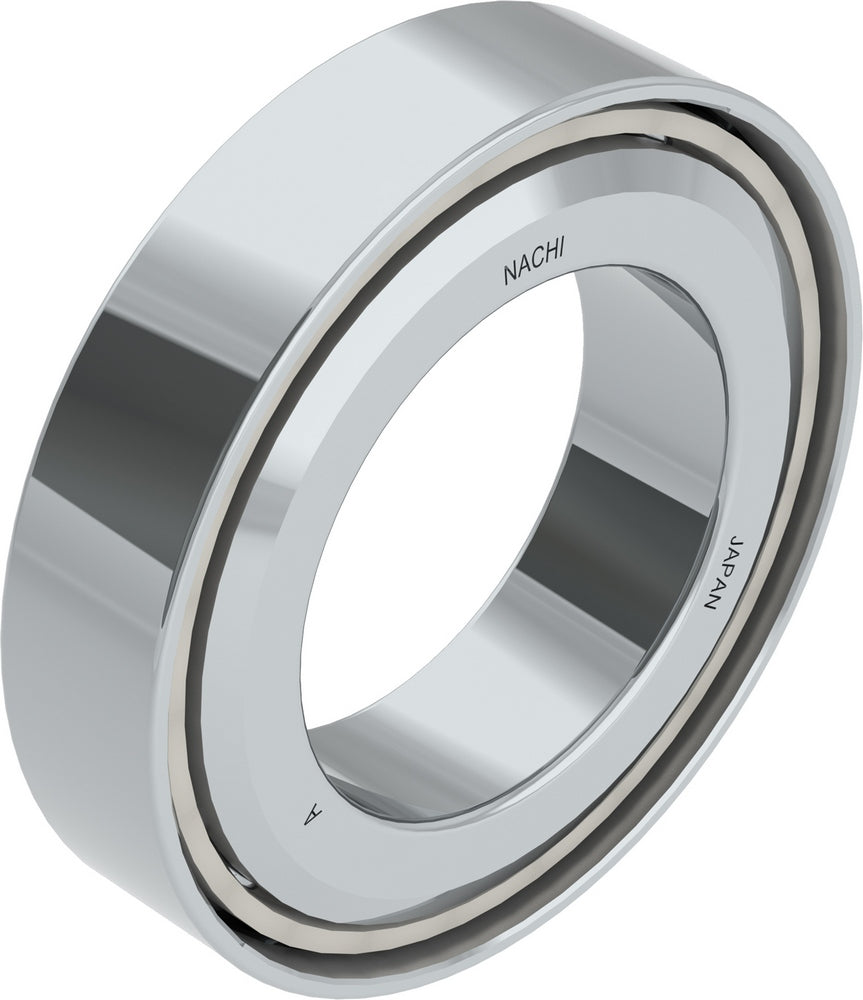

This bearing type is used for supporting the ball screws that are used as actuators of high precision and high speed machines, precision measurement equipment, robots, etc. This is a precision and high ability bearing.
Features
NACHI's TAB Series Ball Srew Support Bearings are availible open, contact sealed, or non-contact sealed.
Additional Information
Limiting Speed - Grease 2800 rpm
Bearing Type Ball Screw Support Bearing
Ball Material Steel
Universally (Flush) Ground Yes
Cage Material Polyamide Resin
Seals or Shields No
Rolling Element Material Steel
Contact Angle 60°
Limiting Speed - Oil 3500 rpm
Preload Level Medium
ISO Precision Class P4
Temperature Range [Max] 248 °F
Inch/Metric Metric
Outer Ring Material Steel
Inner Ring Material Steel
Dynamic Load Rating 69500 N
Static Load Rating [Max] 119000 N
Bore Type Cylindrical Bore
EAN or UPC 4991893593457
