category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
20 mm
manufacture:
Nachi America
mpn:
51204G
outer_diameter:
40 mm
subcategory:
Thrust Ball Bearing
upc:
4991893595963
weight:
0.18
width:
14 mm

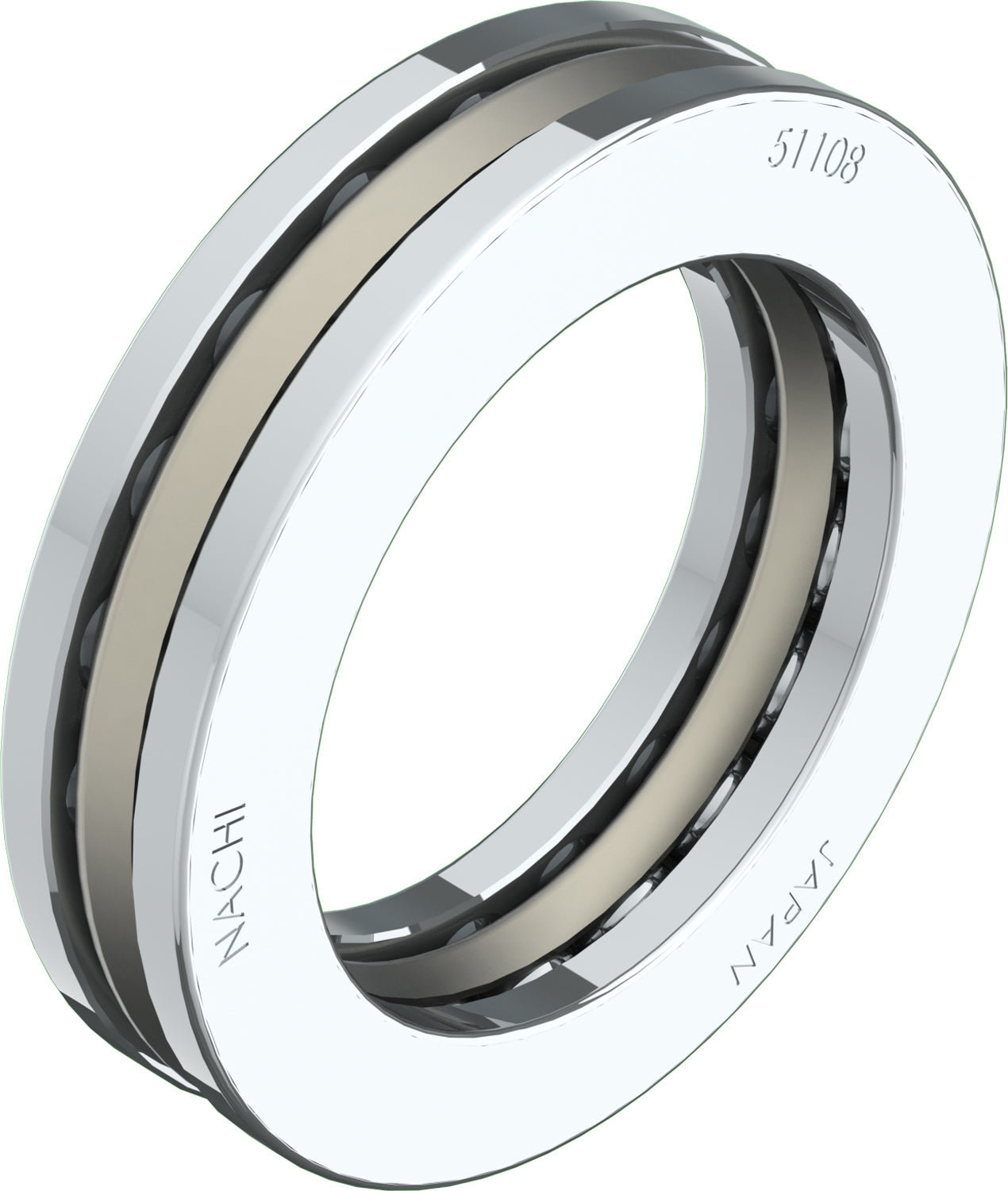

Product Description
Thrust Ball Bearings are made as single-direction and double-direction bearings. Single-direction Thrust Ball Bearings can sustain an axial load in only one direction, whereas Double-direction Thrust Ball Bearings can sustain bi-directional thrust load. Both types of Thrust Ball Bearings cannot sustain a radial load.
Features
(G) = PA66 Polyamide cage
Additional Information
Bearing Type Thrust
Limiting Speed - Oil 6300 rpm
Dynamic Load Rating 22200 N
Static Load Rating [Max] 37500 N
Width 14 mm
Temperature Range [Max] 248 °F
Limiting Speed - Grease 4200 rpm
Inner Ring Material Steel
Outer Ring Material Steel
ISO Precision Class P0
Ball Material Steel
Bore Type Cylindrical Bore
Cage Material Polyamide Resin
Seals or Shields No
Rolling Element Material Steel
EAN or UPC 4991893595963
