category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
30 mm
manufacture:
Nachi America
mpn:
51206G
outer_diameter:
52 mm
subcategory:
Thrust Ball Bearing
upc:
4991893596106
weight:
0.33
width:
16 mm

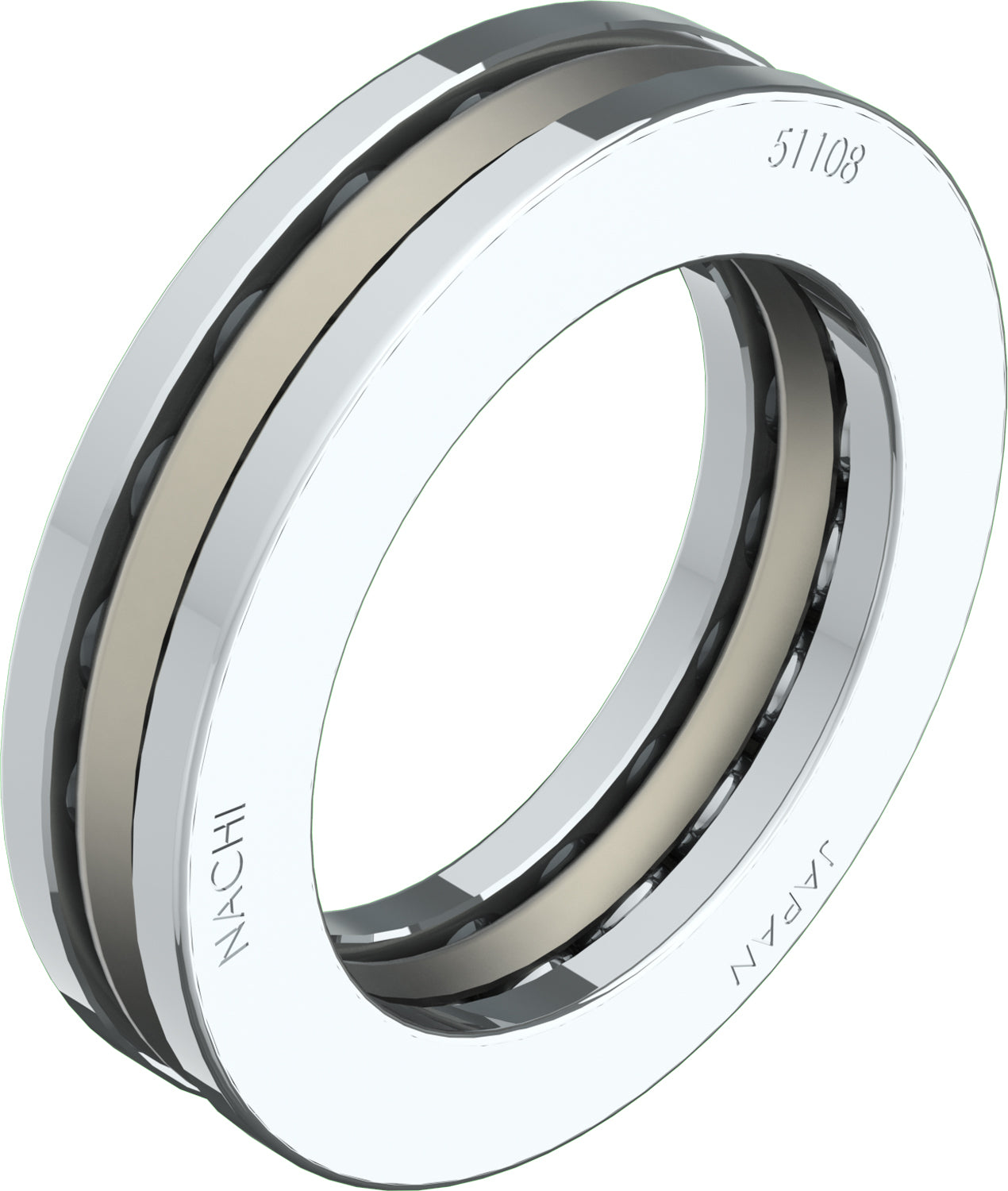

Product Description
Thrust Ball Bearings are made as single-direction and double-direction bearings. Single-direction Thrust Ball Bearings can sustain an axial load in only one direction, whereas Double-direction Thrust Ball Bearings can sustain bi-directional thrust load. Both types of Thrust Ball Bearings cannot sustain a radial load.
Features
(G) = PA66 Polyamide cage
Additional Information
Outer Ring Material Steel
Inner Ring Material Steel
Seals or Shields No
Dynamic Load Rating 29300 N
Ball Material Steel
Bearing Type Thrust
Static Load Rating [Max] 58000 N
Limiting Speed - Oil 5200 rpm
Width 16 mm
Cage Material Polyamide Resin
Rolling Element Material Steel
Temperature Range [Max] 248 °F
Bore Type Cylindrical Bore
Limiting Speed - Grease 3400 rpm
ISO Precision Class P0
EAN or UPC 4991893596106
