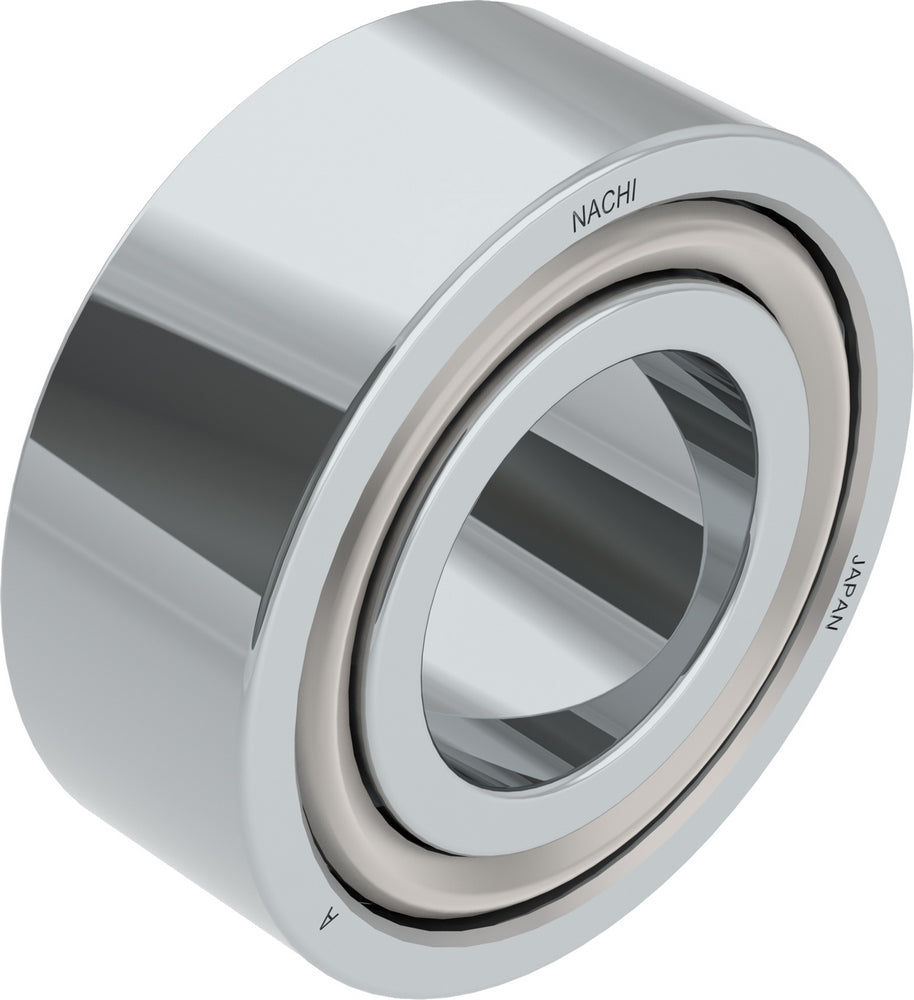

Nachi America - 5201 Double-Row Angular Contact Ball Bearings have a thinner width than 2 stacked Deep-Groove bearings can sustain combined loads of simultaneously acting radial and axial loads because they have a contact angle (α). The contact angle is defined as the angle between the line joining the points of contact between the ball and the raceways in the radial plane.
Features
(-2NS) = 2 NBR Contact Seals, (ZZ) = 2 Shields, (NR) = Snap Ring Snap Ring Groove on OD, (C3) = C3 Radial Clearance
Additional Information
Temperature Range [Max] 248 °F
Cage Material Steel
Width 15.9 mm
Outer Ring Material Steel
Rolling Element Material Steel
Dynamic Load Rating 10700 N
Rows of Balls Double
Static Load Rating [Max] 5950 N
Seals or Shields No
Bearing Type Angular Contact
Ball Material Steel
ISO Precision Class P0
Bore Type Cylindrical Bore
Limiting Speed - Oil 22000 rpm
Inner Ring Material Steel
Contact Angle 20°
Limiting Speed - Grease 16000 rpm
Snap Ring No
EAN or UPC 4991893598209
CategoryBall Bearings
Country of originJapan
Inner diameter12 mm
ManufactureNachi America
Mpn5201
Outer diameter32 mm
SubcategoryDouble Row Angular Contact Ball Bearing
Upc4991893598209
Weight0.13
Width15.9 mm
