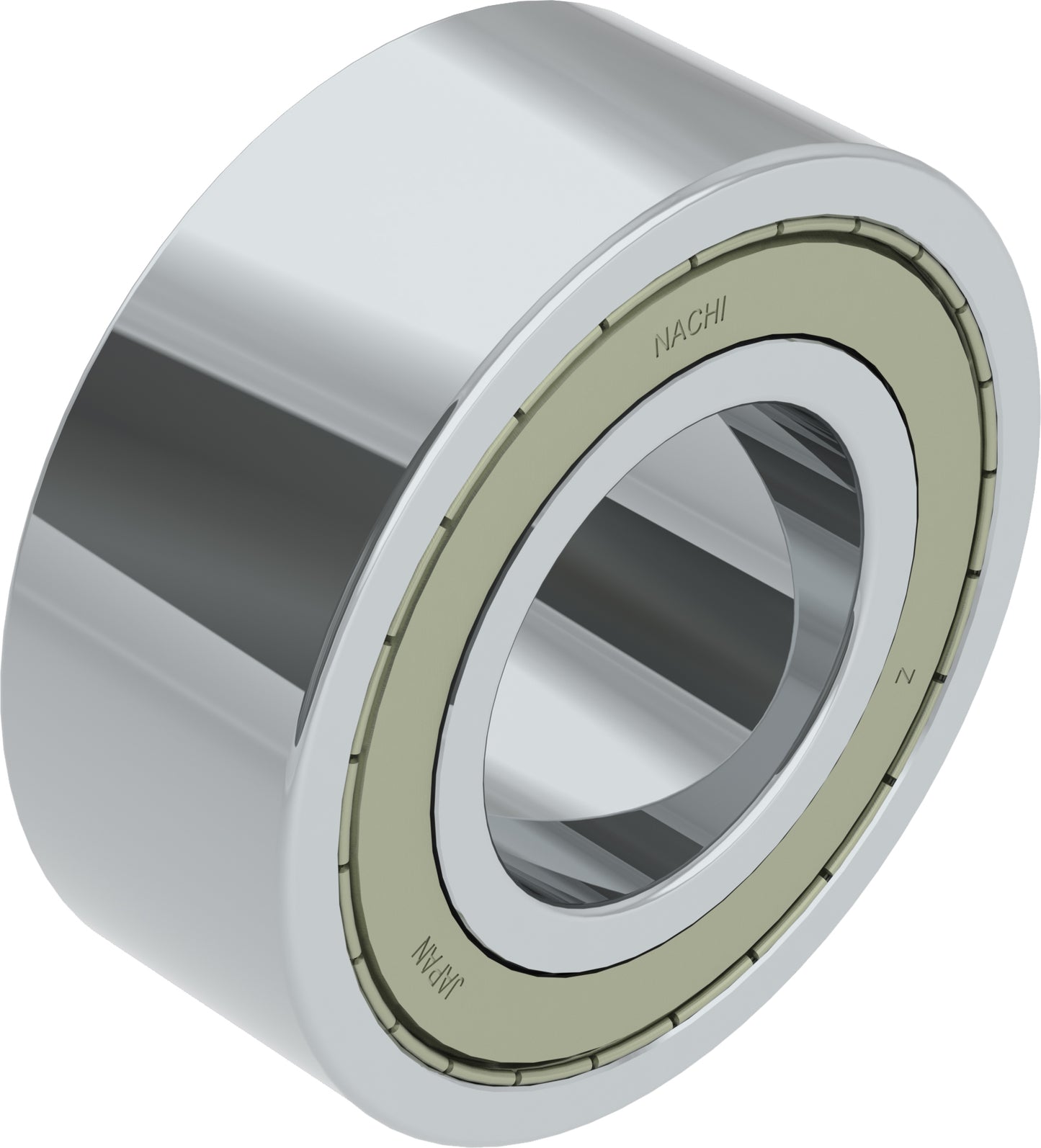

Nachi America - 5201ZZ Double-Row Angular Contact Ball Bearings have a thinner width than 2 stacked Deep-Groove bearings can sustain combined loads of simultaneously acting radial and axial loads because they have a contact angle (α). The contact angle is defined as the angle between the line joining the points of contact between the ball and the raceways in the radial plane.
Features
(-2NS) = 2 NBR Contact Seals, (ZZ) = 2 Shields, (NR) = Snap Ring Snap Ring Groove on OD, (C3) = C3 Radial Clearance
Additional Information
Limiting Speed - Grease 16000 rpm
Outer Ring Material Steel
Grease Fill Alvania 2
Rolling Element Material Steel
Inner Ring Material Steel
Dynamic Load Rating 10700 N
Bore Type Cylindrical Bore
ISO Precision Class P0
Seals or Shields 2 Shields
Static Load Rating [Max] 5950 N
Width 15.9 mm
Ball Material Steel
Contact Angle 20°
Temperature Range [Max] 248 °F
Cage Material Steel
Bearing Type Angular Contact
Rows of Balls Double
Snap Ring No
EAN or UPC 4991893598391
CategoryBall Bearings
Country of originJapan
Inner diameter12 mm
ManufactureNachi America
Mpn5201ZZ
Outer diameter32 mm
SubcategoryDouble Row Angular Contact Ball Bearing
Upc4991893598391
Weight0.13
Width15.9 mm
