category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
35 mm
manufacture:
Nachi America
mpn:
5207ZZ
outer_diameter:
72 mm
subcategory:
Double Row Angular Contact Ball Bearing
upc:
4991893601046
weight:
0.95
width:
27 mm

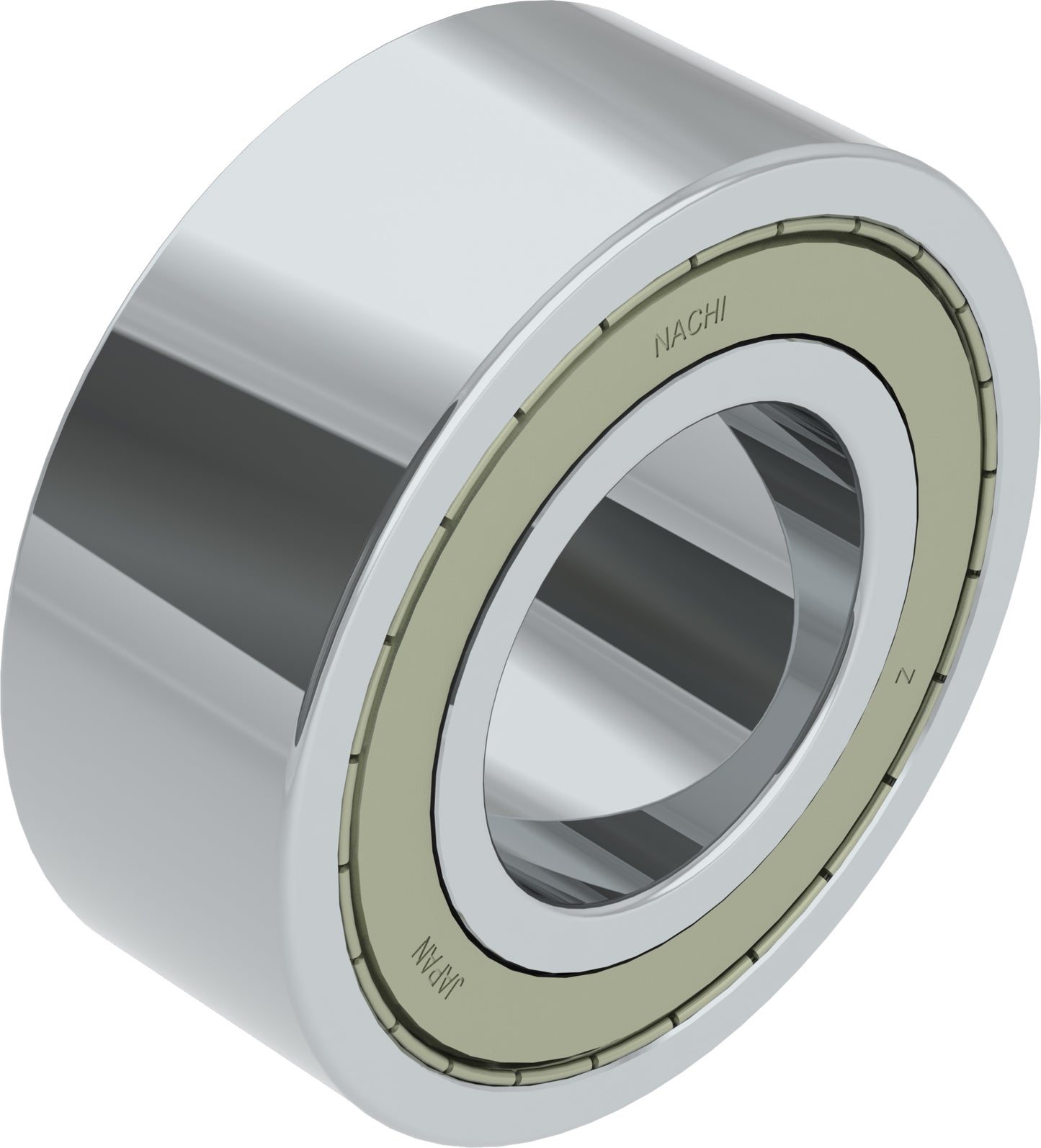

Product Description
Double-Row Angular Contact Ball Bearings have a thinner width than 2 stacked Deep-Groove bearings & can sustain combined loads of simultaneously acting radial and axial loads because they have a contact angle (α). The contact angle is defined as the angle between the line joining the points of contact between the ball and the raceways in the radial plane.
Features
(-2NS) = 2 NBR Contact Seals, (ZZ) = 2 Shields, (NR) = Snap Ring & Snap Ring Groove on OD, (C3) = C3 Radial Clearance
Additional Information
Width 27 mm
Rolling Element Material Steel
ISO Precision Class P0
Cage Material Steel
Bearing Type Angular Contact
Bore Type Cylindrical Bore
Outer Ring Material Steel
Seals or Shields 2 Shields
Contact Angle 20°
Grease Fill Alvania 2
Temperature Range [Max] 248 °F
Dynamic Load Rating 35000 N
Static Load Rating [Max] 25900 N
Snap Ring No
Inner Ring Material Steel
Limiting Speed - Grease 7000 rpm
Rows of Balls Double
Ball Material Steel
EAN or UPC 4991893601046
