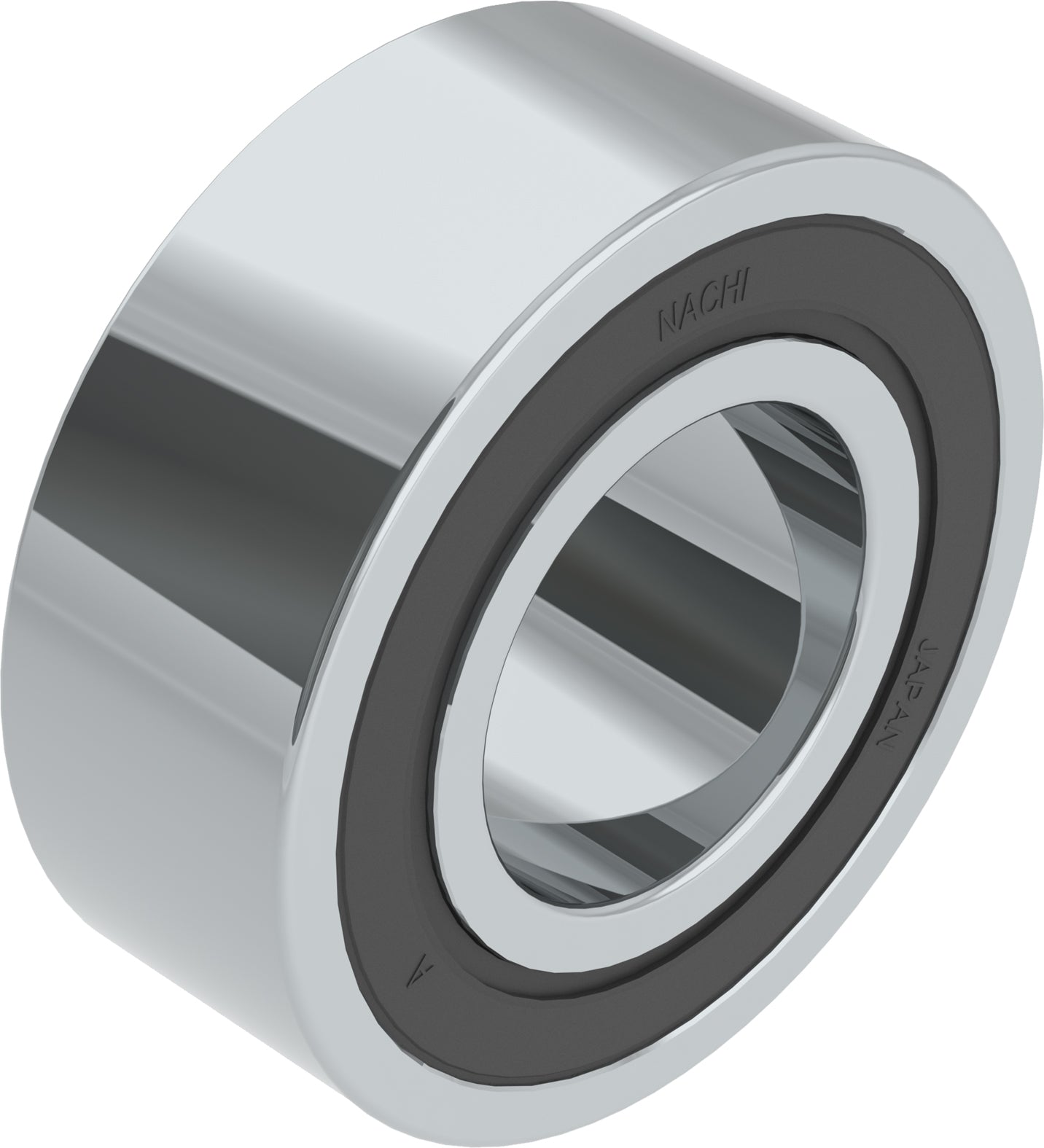

Nachi America - 5209-2NS Double-Row Angular Contact Ball Bearings have a thinner width than 2 stacked Deep-Groove bearings can sustain combined loads of simultaneously acting radial and axial loads because they have a contact angle (α). The contact angle is defined as the angle between the line joining the points of contact between the ball and the raceways in the radial plane.
Features
(-2NS) = 2 NBR Contact Seals, (ZZ) = 2 Shields, (NR) = Snap Ring Snap Ring Groove on OD, (C3) = C3 Radial Clearance
Additional Information
Bore Type Cylindrical Bore
Dynamic Load Rating 42500 N
Snap Ring No
Contact Angle 20°
Grease Fill Chevron SRI#2
Inner Ring Material Steel
Temperature Range [Max] 248 °F
Cage Material Steel
Seals or Shields 2 Contact Seals
Rolling Element Material Steel
Static Load Rating [Max] 34500 N
Ball Material Steel
Rows of Balls Double
Width 30.2 mm
Bearing Type Angular Contact
Outer Ring Material Steel
ISO Precision Class P0
Limiting Speed - Grease 5500 rpm
EAN or UPC 4991893601510
CategoryBall Bearings
Country of originJapan
Inner diameter45 mm
ManufactureNachi America
Mpn5209-2NS
Outer diameter85 mm
SubcategoryDouble Row Angular Contact Ball Bearing
Upc4991893601510
Weight1.37
Width30.2 mm
