category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
55 mm
manufacture:
Nachi America
mpn:
5211-2NS
outer_diameter:
100 mm
subcategory:
Double Row Angular Contact Ball Bearing
upc:
4991893602326
weight:
2.12
width:
33.3 mm

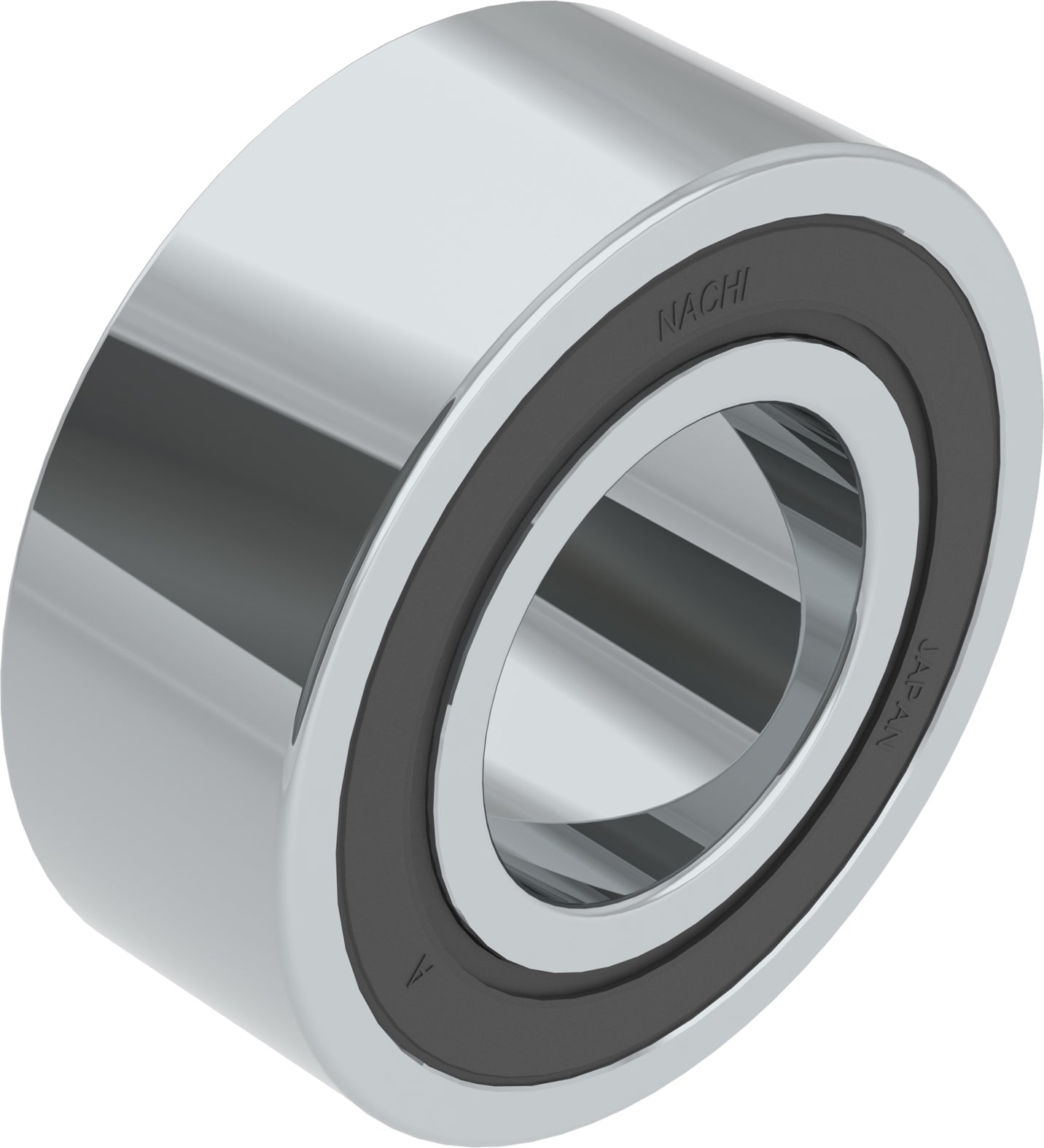

Product Description
Double-Row Angular Contact Ball Bearings have a thinner width than 2 stacked Deep-Groove bearings & can sustain combined loads of simultaneously acting radial and axial loads because they have a contact angle (α). The contact angle is defined as the angle between the line joining the points of contact between the ball and the raceways in the radial plane.
Features
(-2NS) = 2 NBR Contact Seals, (ZZ) = 2 Shields, (NR) = Snap Ring & Snap Ring Groove on OD, (C3) = C3 Radial Clearance
Additional Information
Ball Material Steel
ISO Precision Class P0
Cage Material Steel
Dynamic Load Rating 57500 N
Limiting Speed - Grease 4500 rpm
Contact Angle 20°
Grease Fill Chevron SRI#2
Outer Ring Material Steel
Width 33.3 mm
Bore Type Cylindrical Bore
Static Load Rating [Max] 50500 N
Seals or Shields 2 Contact Seals
Rows of Balls Double
Bearing Type Angular Contact
Rolling Element Material Steel
Inner Ring Material Steel
Snap Ring No
Temperature Range [Max] 248 °F
EAN or UPC 4991893602326
