category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
60 mm
manufacture:
Nachi America
mpn:
5212-2NS
outer_diameter:
110 mm
subcategory:
Double Row Angular Contact Ball Bearing
upc:
4991893602722
weight:
3.00
width:
36.5 mm

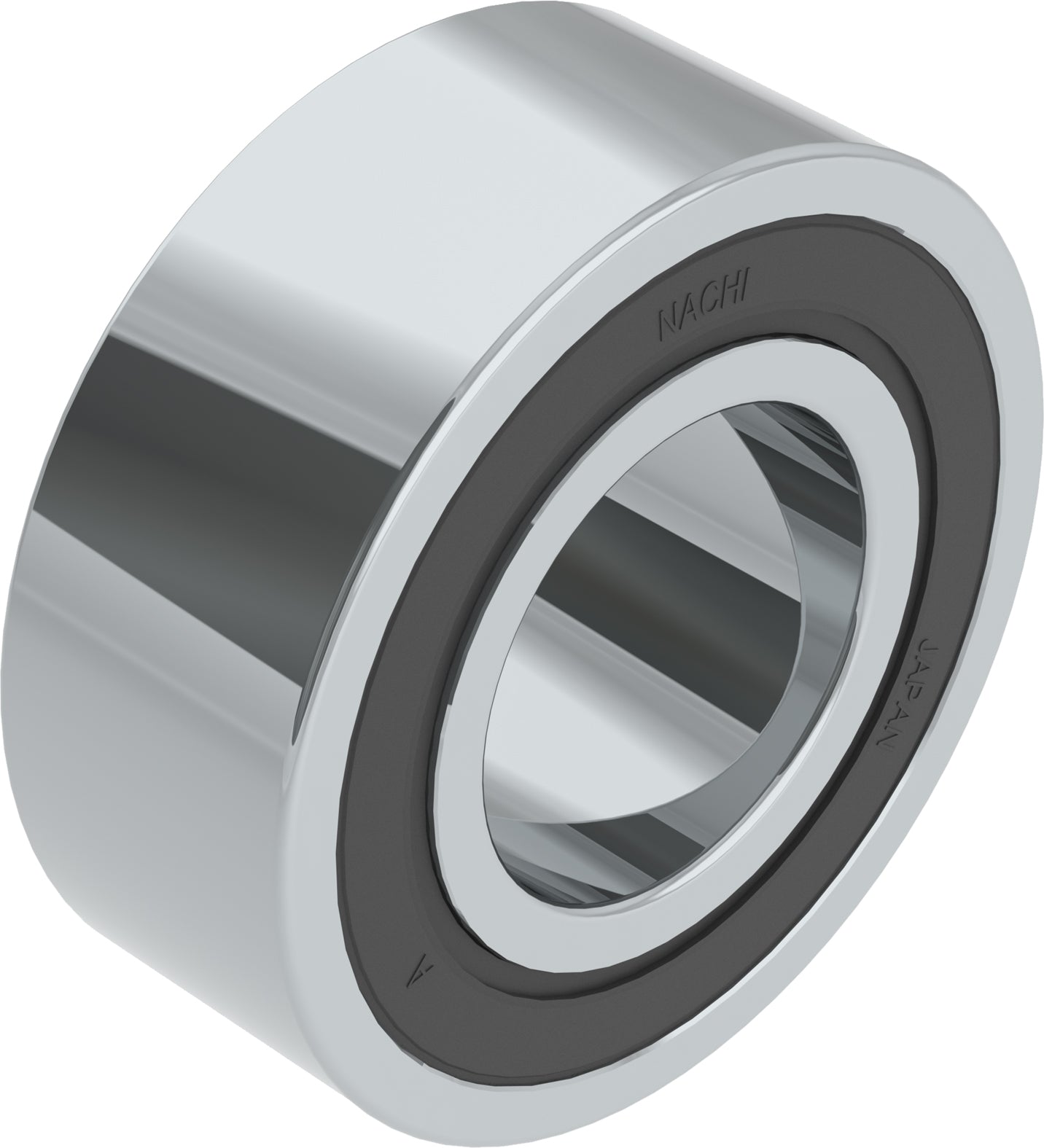

Product Description
Double-Row Angular Contact Ball Bearings have a thinner width than 2 stacked Deep-Groove bearings & can sustain combined loads of simultaneously acting radial and axial loads because they have a contact angle (α). The contact angle is defined as the angle between the line joining the points of contact between the ball and the raceways in the radial plane.
Features
(-2NS) = 2 NBR Contact Seals, (ZZ) = 2 Shields, (NR) = Snap Ring & Snap Ring Groove on OD, (C3) = C3 Radial Clearance
Additional Information
Static Load Rating [Max] 57500 N
Contact Angle 20°
Bore Type Cylindrical Bore
Outer Ring Material Steel
Bearing Type Angular Contact
Cage Material Steel
Grease Fill Alvania 2
Rows of Balls Double
ISO Precision Class P0
Width 36.5 mm
Inner Ring Material Steel
Rolling Element Material Steel
Seals or Shields 2 Contact Seals
Dynamic Load Rating 67000 N
Snap Ring No
Ball Material Steel
Limiting Speed - Grease 4300 rpm
Temperature Range [Max] 248 °F
EAN or UPC 4991893602722
