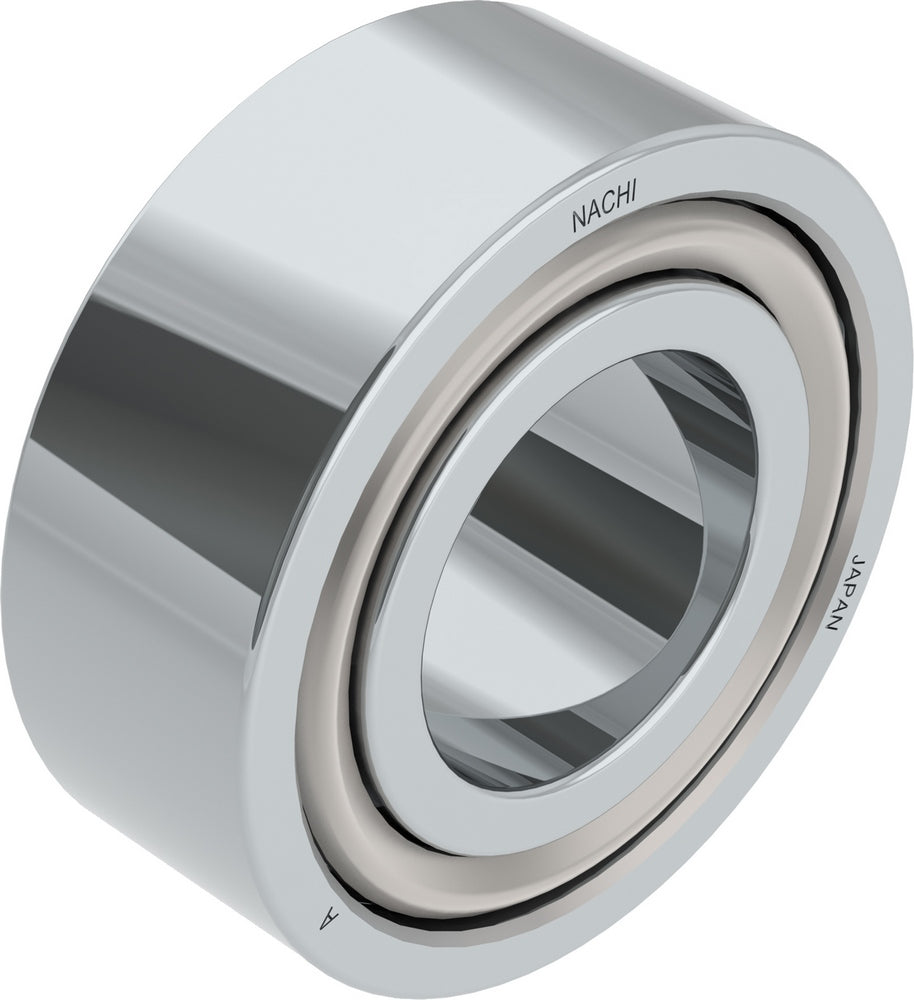

Nachi America - 5307 Double-Row Angular Contact Ball Bearings have a thinner width than 2 stacked Deep-Groove bearings can sustain combined loads of simultaneously acting radial and axial loads because they have a contact angle (α). The contact angle is defined as the angle between the line joining the points of contact between the ball and the raceways in the radial plane.
Features
(-2NS) = 2 NBR Contact Seals, (ZZ) = 2 Shields, (NR) = Snap Ring Snap Ring Groove on OD, (C3) = C3 Radial Clearance
Additional Information
Outer Ring Material Steel
ISO Precision Class P0
Limiting Speed - Oil 8500 rpm
Inner Ring Material Steel
Limiting Speed - Grease 6300 rpm
Rows of Balls Double
Bearing Type Angular Contact
Seals or Shields No
Width 34.9 mm
Contact Angle 20°
Ball Material Steel
Dynamic Load Rating 52000 N
Snap Ring No
Bore Type Cylindrical Bore
Static Load Rating [Max] 37000 N
Temperature Range [Max] 248 °F
Rolling Element Material Steel
Cage Material Steel
EAN or UPC 4991893604771
CategoryBall Bearings
Country of originJapan
Inner diameter35 mm
ManufactureNachi America
Mpn5307
Outer diameter80 mm
SubcategoryDouble Row Angular Contact Ball Bearing
Upc4991893604771
Weight1.74
Width34.9 mm
