category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
45 mm
manufacture:

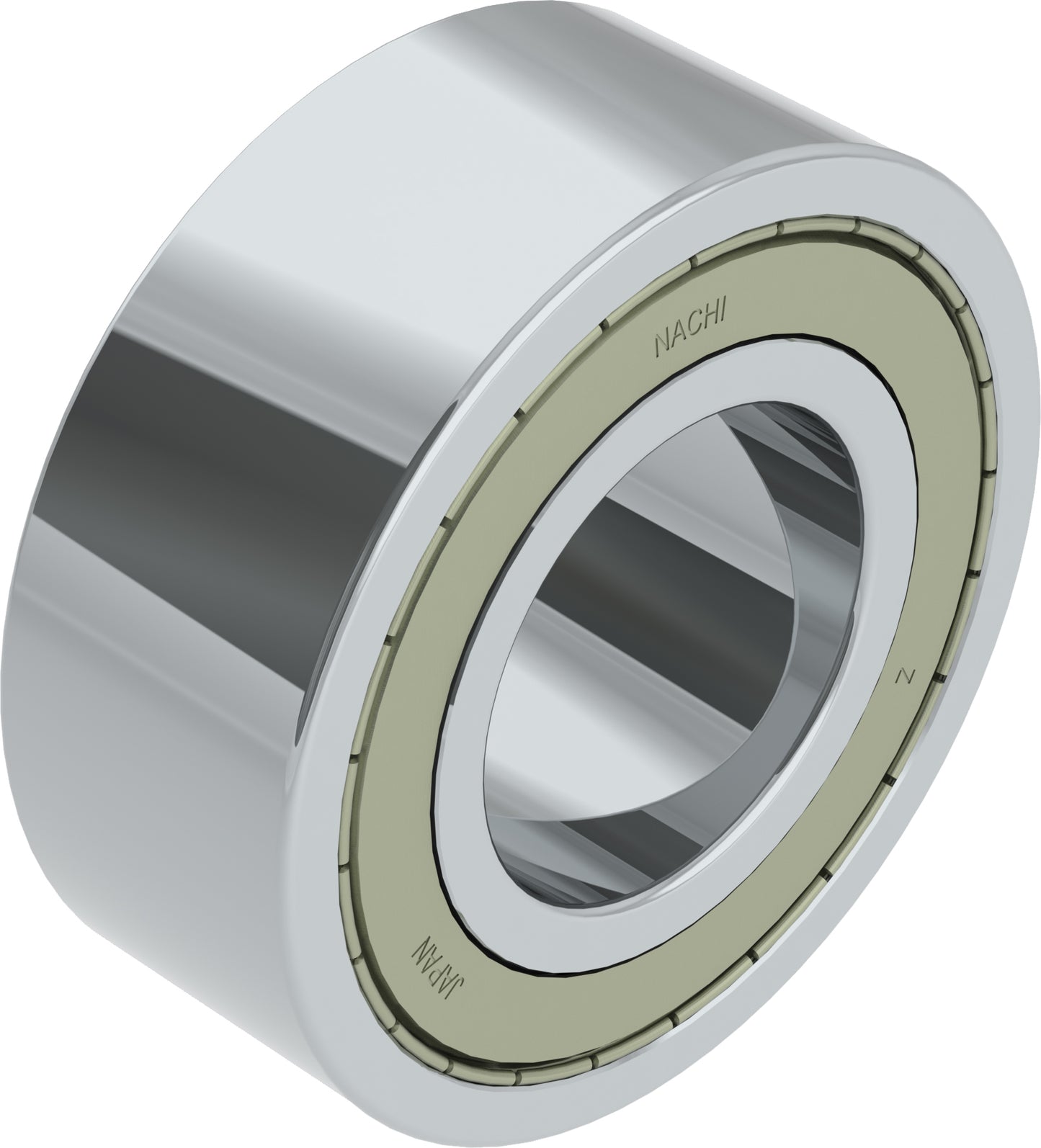

Nachi America
mpn:
5309ZZC3JAF-V2
outer_diameter:
100 mm
subcategory:
Double Row Angular Contact Ball Bearing
weight:
3.13
width:
39.7 mm
Product Description
Double-Row Angular Contact Ball Bearings have a thinner width than 2 stacked Deep-Groove bearings & can sustain combined loads of simultaneously acting radial and axial loads because they have a contact angle (α). The contact angle is defined as the angle between the line joining the points of contact between the ball and the raceways in the radial plane.
Features
(-2NS) = 2 NBR Contact Seals, (ZZ) = 2 Shields, (NR) = Snap Ring & Snap Ring Groove on OD, (C3) = C3 Radial Clearance
Additional Information
Seals or Shields 2 Shields
Limiting Speed - Oil 6700 rpm
Rolling Element Material Steel
Static Load Rating [Max] 56500 N
Temperature Range [Max] 248 °F
Cage Material Steel
Outer Ring Material Steel
Snap Ring No
Bore Type Cylindrical Bore
Inner Ring Material Steel
Width 39.7 mm
Grease Fill Alvania 2
Contact Angle 20°
Bearing Type Angular Contact
Rows of Balls Double
ISO Precision Class P0
Ball Material Steel
Limiting Speed - Grease 5000 rpm
Dynamic Load Rating 76500 N
