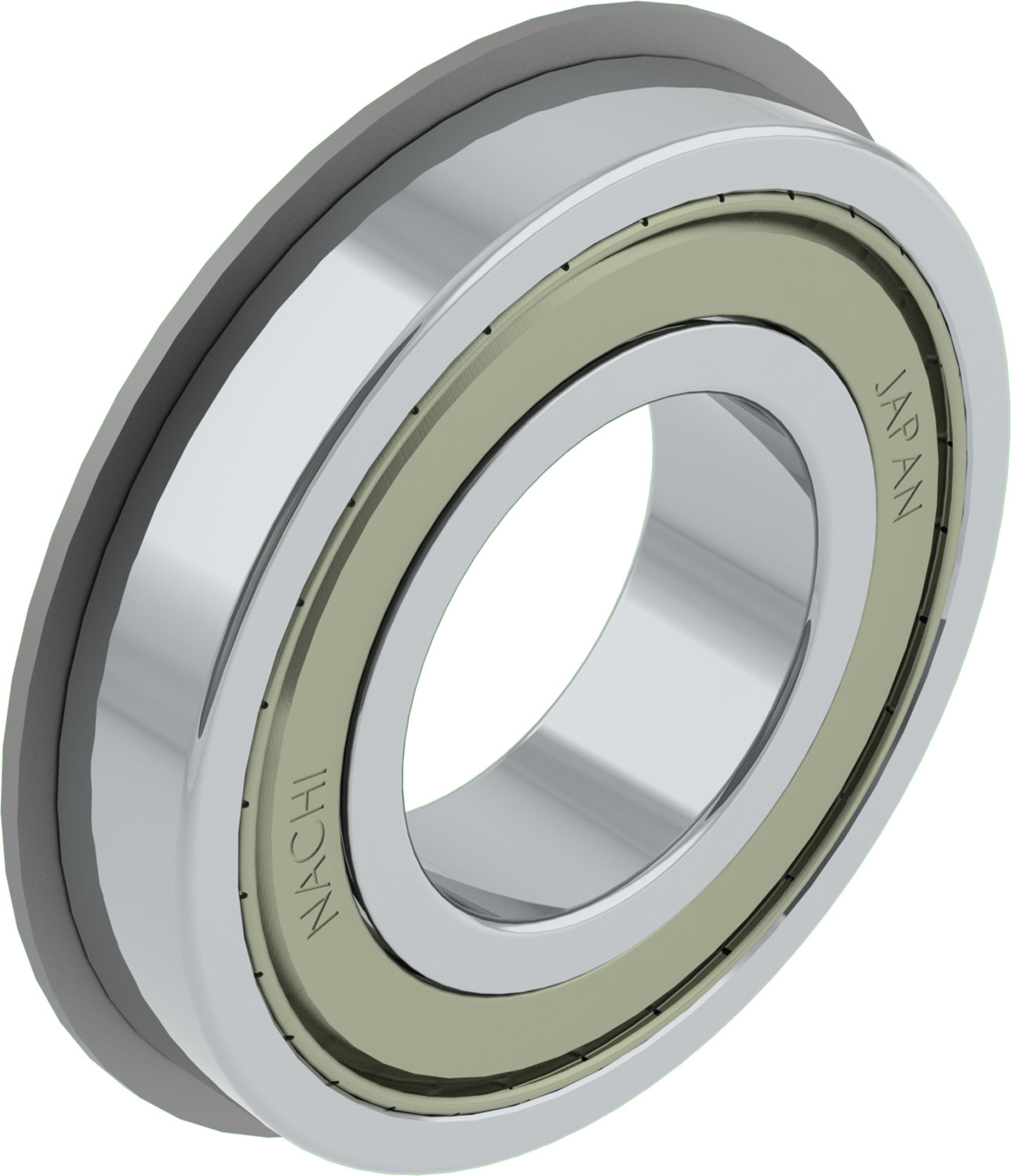

Nachi America - 6002ZZENR Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Outer Ring Material Steel
Width 9 mm
Dynamic Load Rating 5600 N
Seals or Shields 2 Shields
Snap Ring Yes
ISO Precision Class P0
Grease Fill Chevron SRI#2
Rolling Element Material Steel
Bearing Type Deep Groove
Temperature Range [Max] 248 °F
Cage Material Steel
Inner Ring Material Steel
Bore Type Cylindrical Bore
Limiting Speed - Grease 24000 rpm
Ball Material Steel
Static Load Rating [Max] 2840 N
EAN or UPC 4991893620801
CategoryBall Bearings
Country of originJapan
Inner diameter15 mm
ManufactureNachi America
Mpn6002ZZENR
Outer diameter32 mm
SubcategoryDeep Groove Ball Bearing
Upc4991893620801
Weight0.07
Width9 mm
