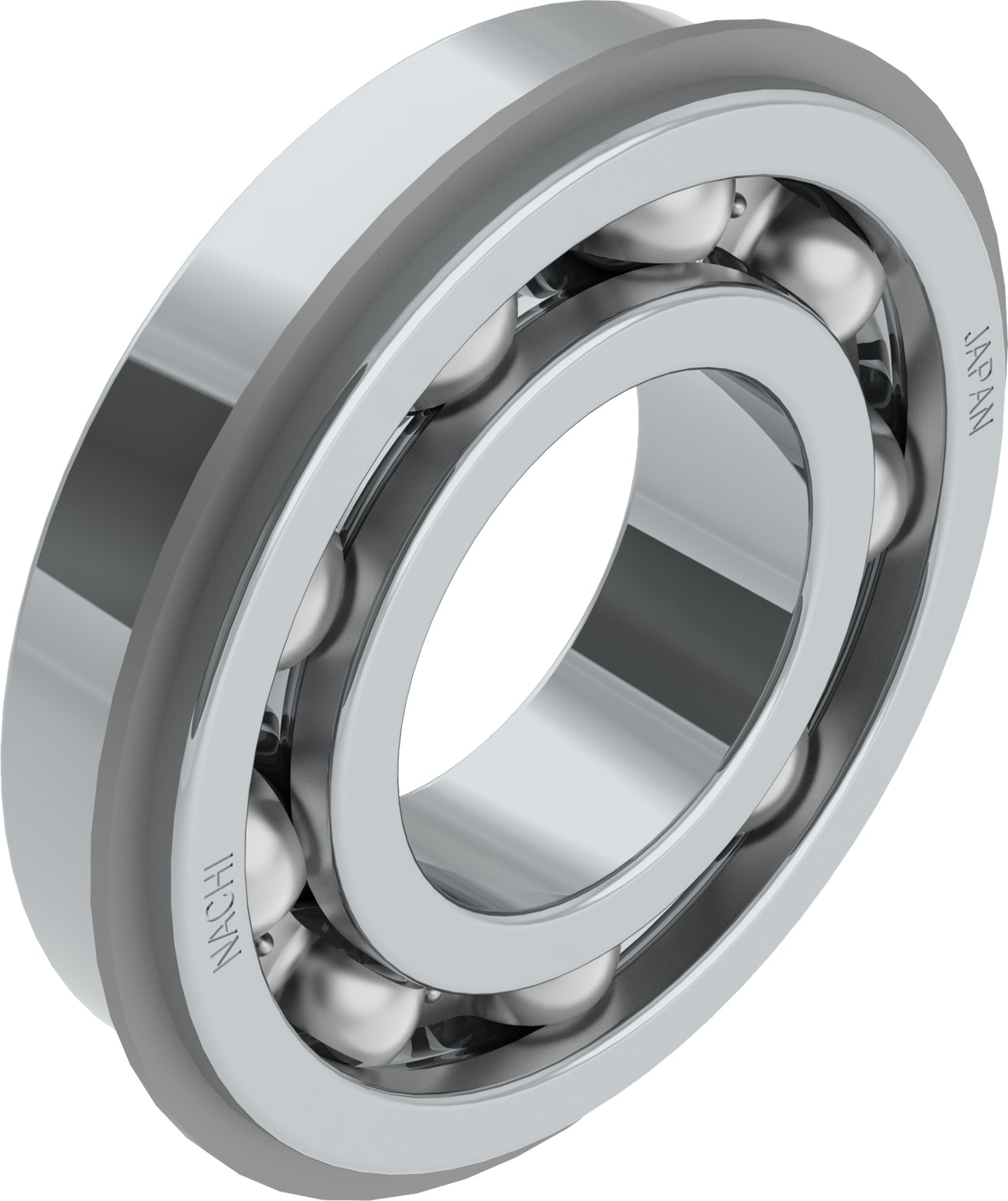

Nachi America - 6003NR Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Limiting Speed - Grease 22000 rpm
Inner Ring Material Steel
Cage Material Steel
Static Load Rating [Max] 3250 N
ISO Precision Class P0
Seals or Shields No
Limiting Speed - Oil 26000 rpm
Snap Ring Yes
Ball Material Steel
Dynamic Load Rating 6000 N
Width 10 mm
Outer Ring Material Steel
Temperature Range [Max] 248 °F
Rolling Element Material Steel
Bore Type Cylindrical Bore
Bearing Type Deep Groove
EAN or UPC 4991893856859
CategoryBall Bearings
Country of originJapan
Inner diameter17 mm
ManufactureNachi America
Mpn6003NR
Outer diameter35 mm
SubcategoryDeep Groove Ball Bearing
Upc4991893856859
Weight0.90
Width10 mm
