category:
Ball Bearings
country_of_origin:
Thailand
inner_diameter:
25 mm
manufacture:
Nachi America
mpn:
6005-2NSE9NR
outer_diameter:
47 mm
subcategory:
Deep Groove Ball Bearing
upc:
4991893630039
weight:
0.17
width:
12 mm

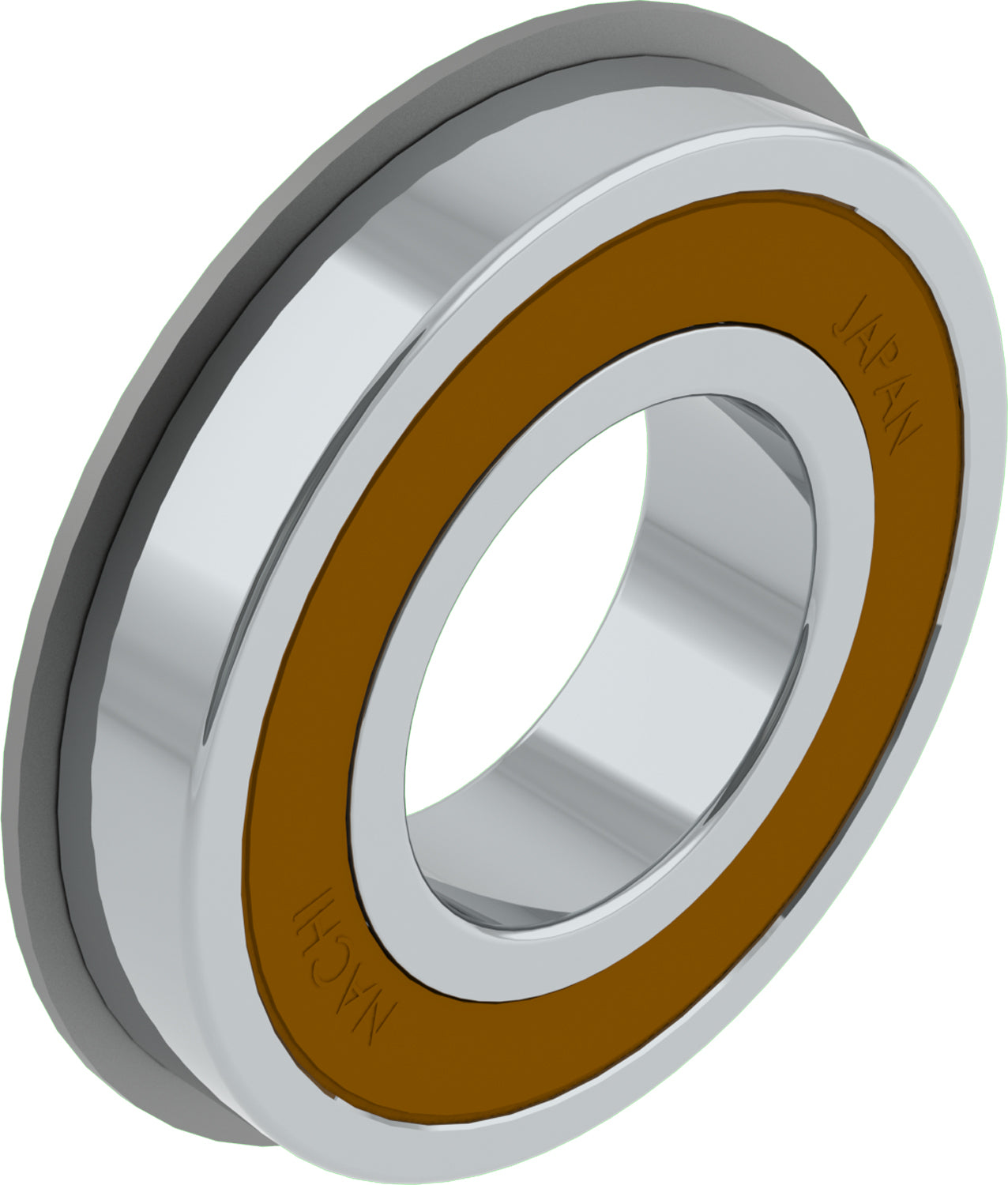

Product Description
Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Ball Material Steel
Seals or Shields 2 Contact Seals
Limiting Speed - Grease 9500 rpm
ISO Precision Class P0
Cage Material Steel
Bearing Type Deep Groove
Inner Ring Material Steel
Bore Type Cylindrical Bore
Snap Ring Yes
Grease Fill Multemp SRL
Rolling Element Material Steel
Width 12 mm
Static Load Rating [Max] 5850 N
Outer Ring Material Steel
Temperature Range [Max] 248 °F
Dynamic Load Rating 10100 N
EAN or UPC 4991893630039
