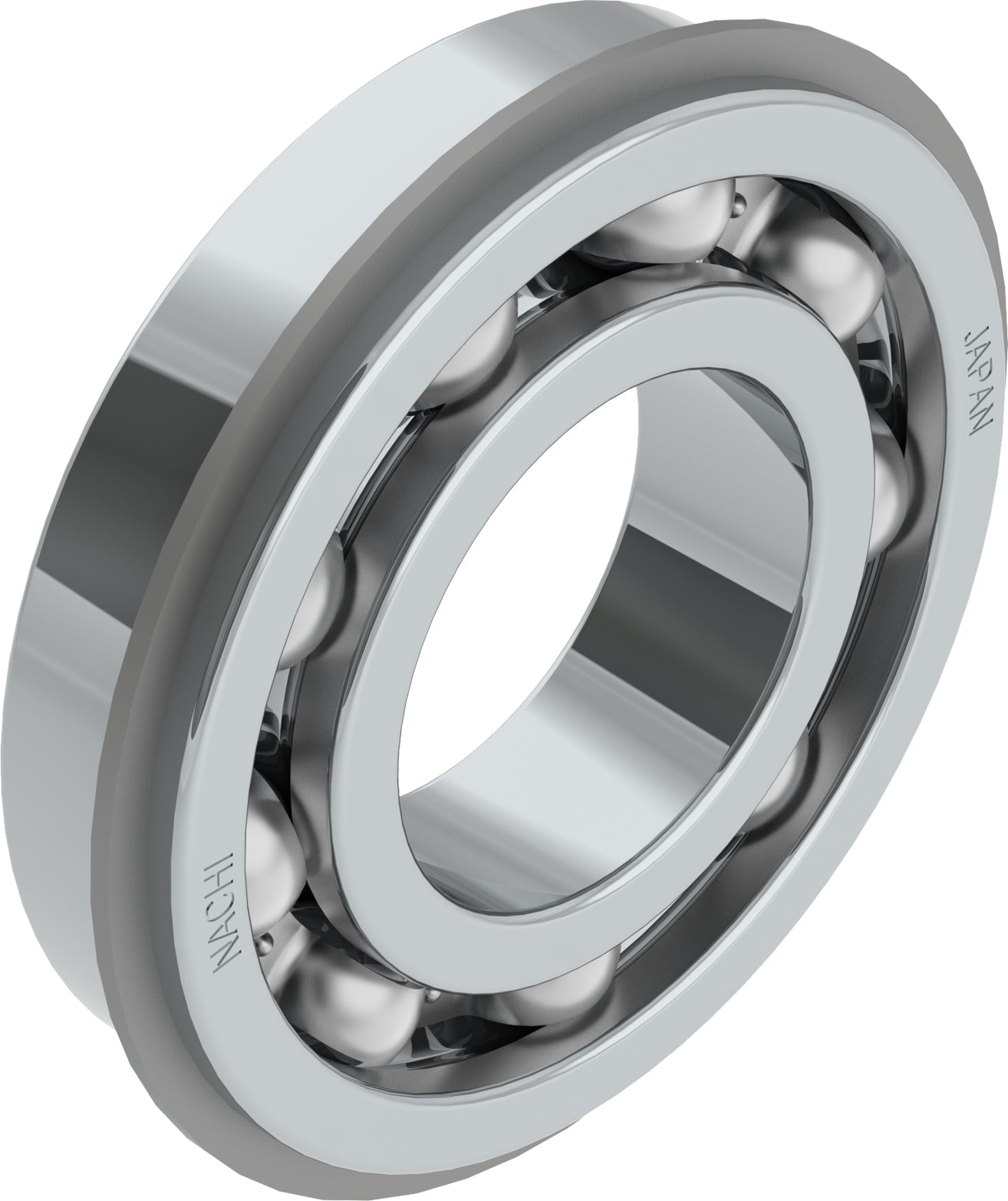

Nachi America - 6010NRC3 Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Outer Ring Material Steel
Rolling Element Material Steel
Limiting Speed - Oil 10000 rpm
Ball Material Steel
ISO Precision Class P0
Width 16 mm
Temperature Range [Max] 248 °F
Bearing Type Deep Groove
Seals or Shields No
Inner Ring Material Steel
Snap Ring Yes
Bore Type Cylindrical Bore
Dynamic Load Rating 21800 N
Static Load Rating [Max] 16600 N
Limiting Speed - Grease 8500 rpm
Cage Material Steel
EAN or UPC 4991893645583
CategoryBall Bearings
Country of originJapan
Inner diameter50 mm
ManufactureNachi America
Mpn6010NRC3
Outer diameter80 mm
SubcategoryDeep Groove Ball Bearing
Upc4991893645583
Weight0.58
Width16 mm
