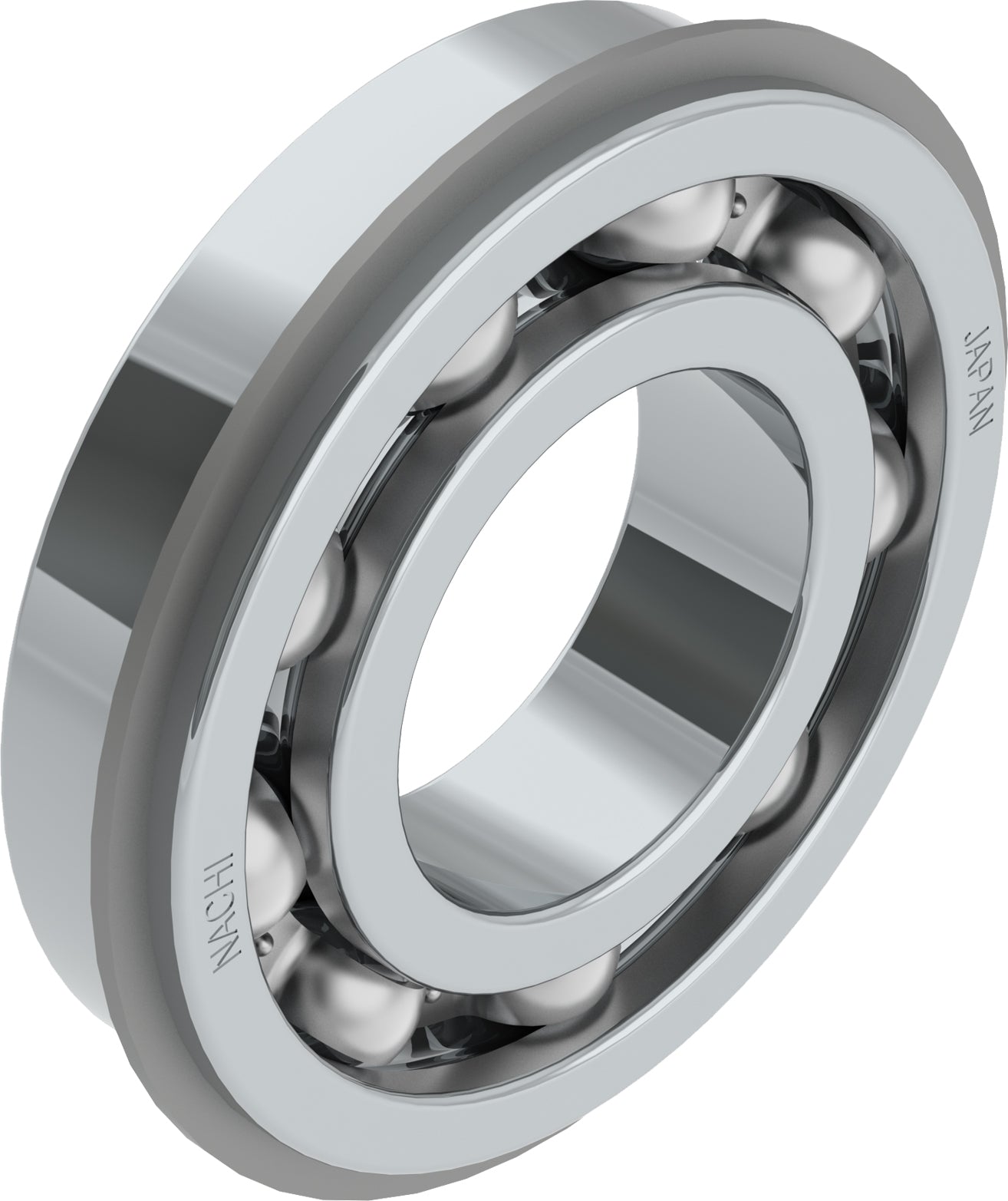

Nachi America - 6011NR Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Seals or Shields No
Outer Ring Material Steel
ISO Precision Class P0
Limiting Speed - Oil 9000 rpm
Snap Ring Yes
Limiting Speed - Grease 7700 rpm
Width 18 mm
Bore Type Cylindrical Bore
Inner Ring Material Steel
Dynamic Load Rating 28300 N
Static Load Rating [Max] 21300 N
Temperature Range [Max] 248 °F
Bearing Type Deep Groove
Ball Material Steel
Rolling Element Material Steel
Cage Material Steel
EAN or UPC 4991893647815
CategoryBall Bearings
Country of originJapan
Inner diameter55 mm
ManufactureNachi America
Mpn6011NR
Outer diameter90 mm
SubcategoryDeep Groove Ball Bearing
Upc4991893647815
Weight0.85
Width18 mm
