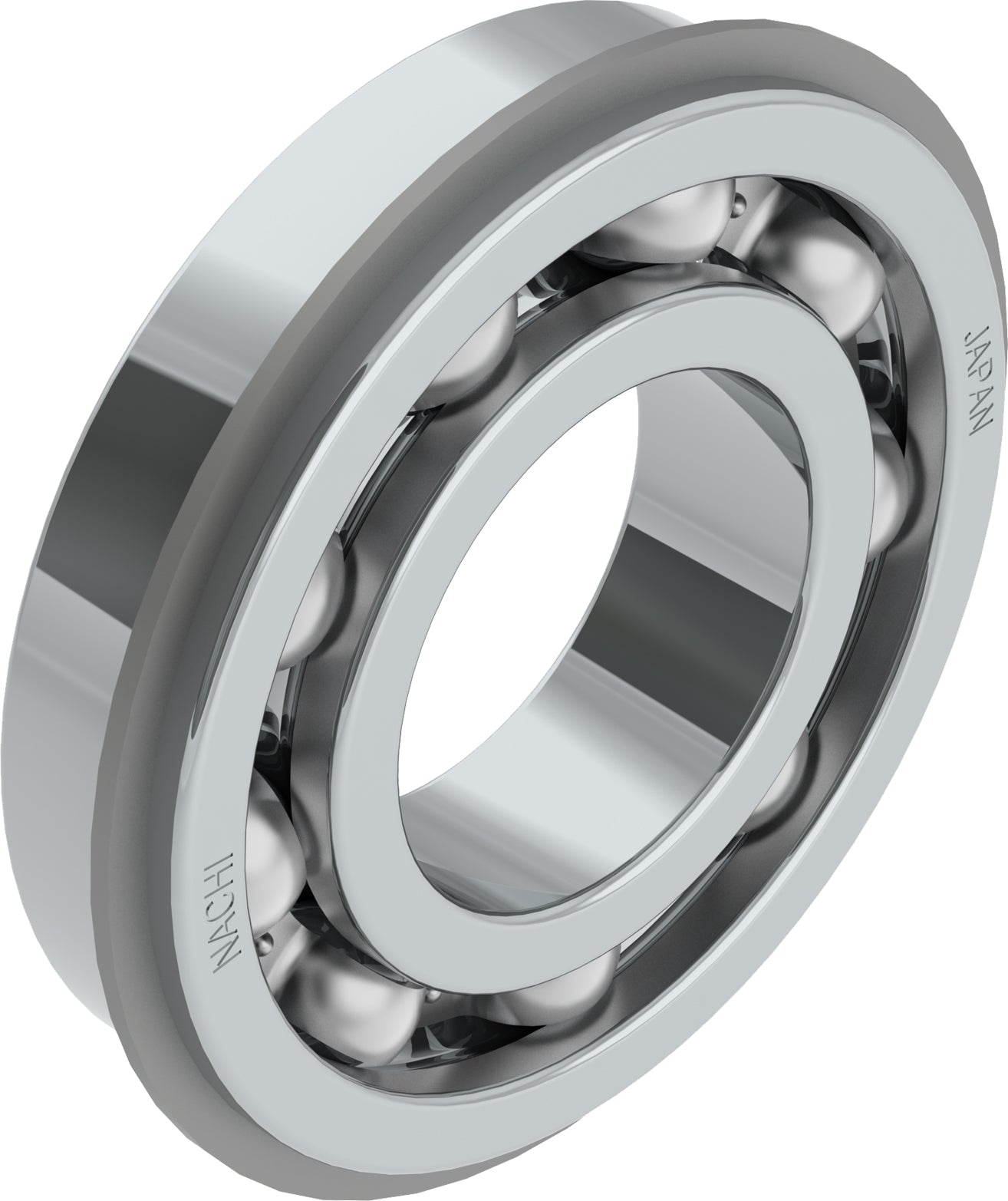

Nachi America - 6011NRC3 Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Inner Ring Material Steel
Snap Ring Yes
Cage Material Steel
Seals or Shields No
Static Load Rating [Max] 21300 N
Dynamic Load Rating 28300 N
Ball Material Steel
Outer Ring Material Steel
Temperature Range [Max] 248 °F
Rolling Element Material Steel
ISO Precision Class P0
Width 18 mm
Limiting Speed - Grease 7700 rpm
Bearing Type Deep Groove
Limiting Speed - Oil 9000 rpm
Bore Type Cylindrical Bore
EAN or UPC 4991893647839
CategoryBall Bearings
Country of originJapan
Inner diameter55 mm
ManufactureNachi America
Mpn6011NRC3
Outer diameter90 mm
SubcategoryDeep Groove Ball Bearing
Upc4991893647839
Weight0.85
Width18 mm
