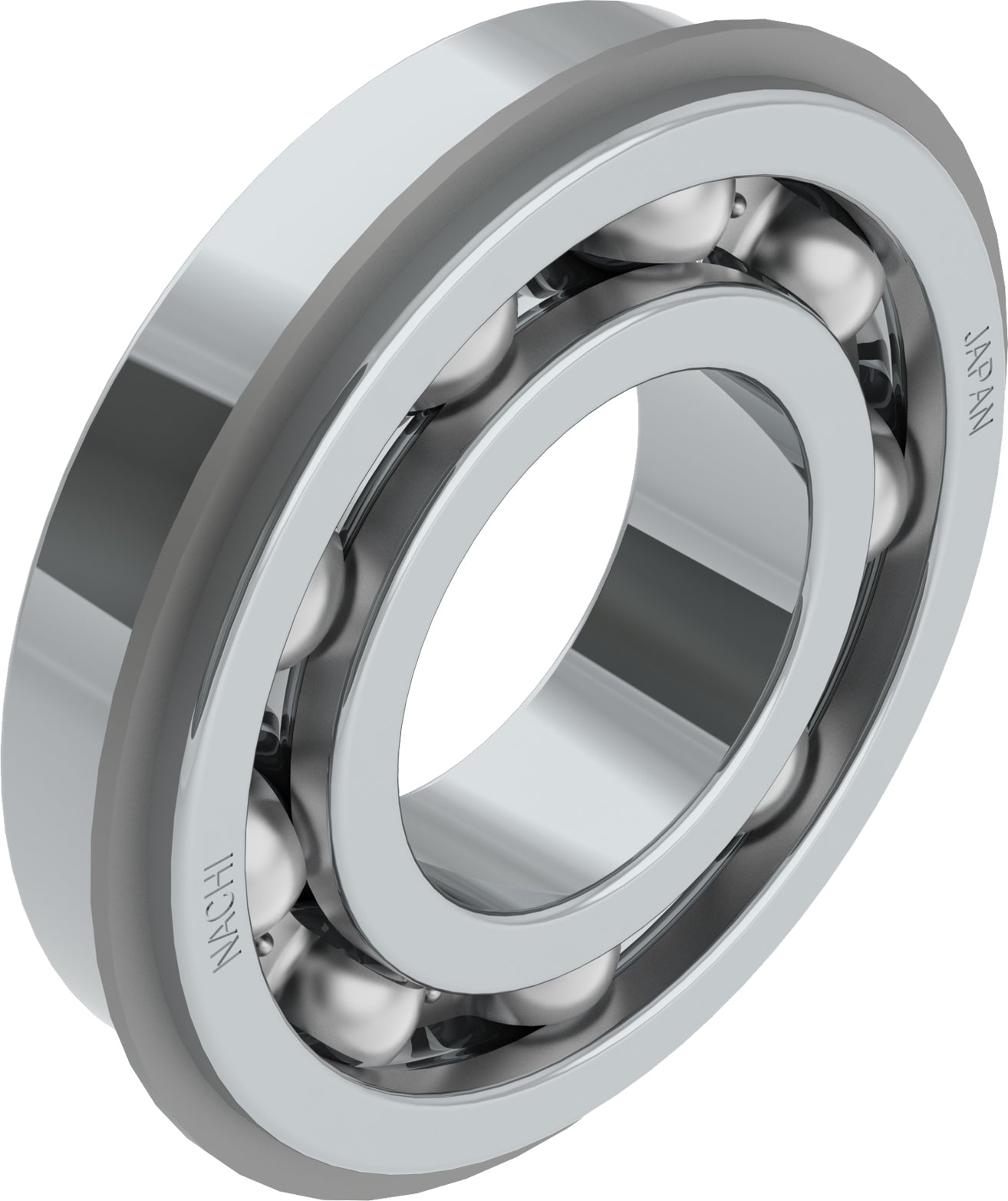

Nachi America - 6014NRC3 Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Ball Material Steel
Bore Type Cylindrical Bore
Snap Ring Yes
Dynamic Load Rating 38000 N
ISO Precision Class P0
Width 20 mm
Outer Ring Material Steel
Static Load Rating [Max] 31000 N
Bearing Type Deep Groove
Rolling Element Material Steel
Limiting Speed - Oil 7100 rpm
Limiting Speed - Grease 6100 rpm
Temperature Range [Max] 248 °F
Seals or Shields No
Inner Ring Material Steel
Cage Material Steel
EAN or UPC 4991893652260
CategoryBall Bearings
Country of originJapan
Inner diameter70 mm
ManufactureNachi America
Mpn6014NRC3
Outer diameter110 mm
SubcategoryDeep Groove Ball Bearing
Upc4991893652260
Weight1.34
Width20 mm
