category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
80 mm
manufacture:
Nachi America
mpn:
6016NR
outer_diameter:
125 mm
subcategory:
Deep Groove Ball Bearing
upc:
4991893654592
weight:
1.88
width:
22 mm
Product Description

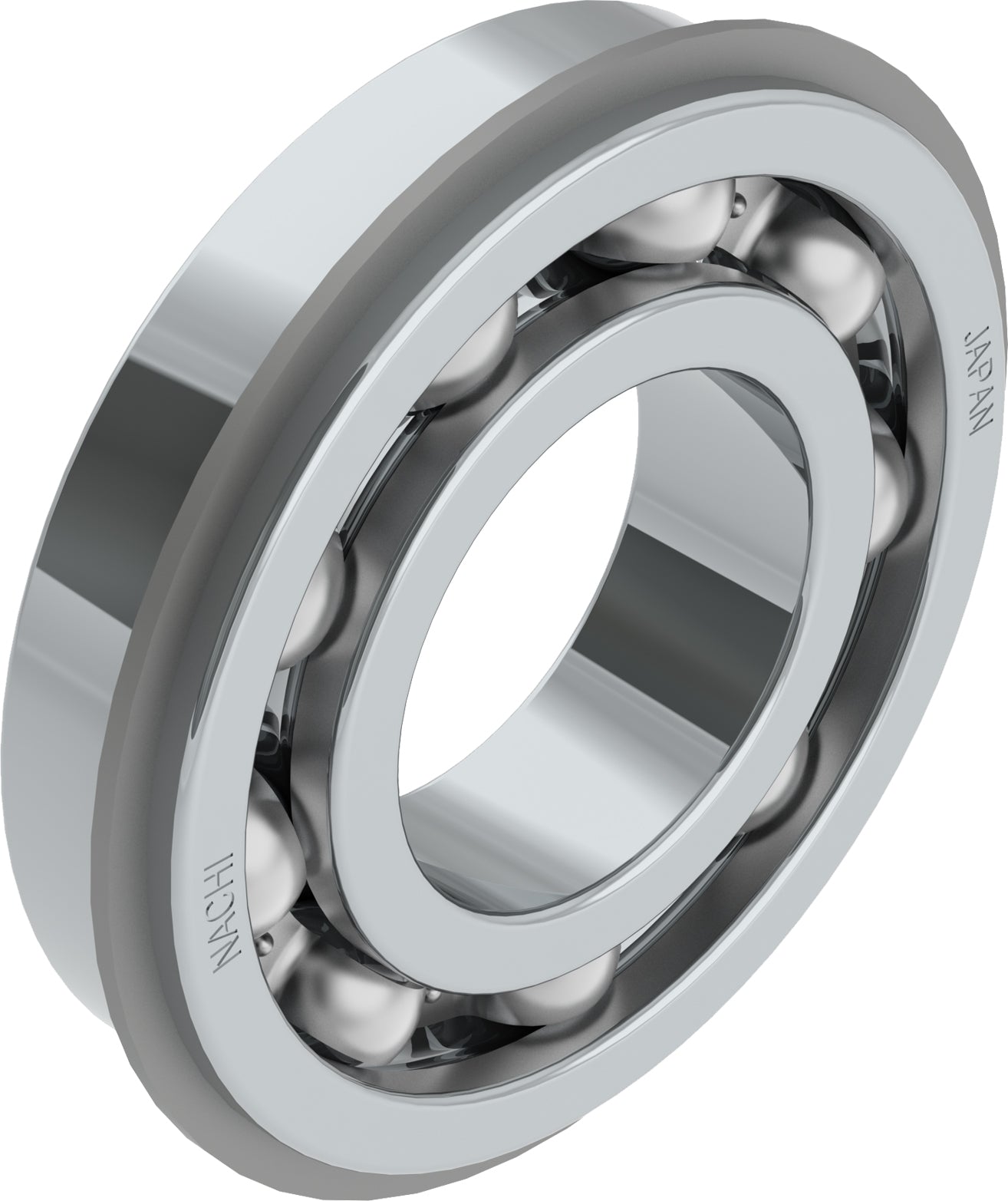

Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Cage Material Steel
Temperature Range [Max] 248 °F
Rolling Element Material Steel
Inner Ring Material Steel
Dynamic Load Rating 47500 N
Bearing Type Deep Groove
Limiting Speed - Grease 5300 rpm
Ball Material Steel
ISO Precision Class P0
Width 22 mm
Seals or Shields No
Snap Ring Yes
Bore Type Cylindrical Bore
Outer Ring Material Steel
Static Load Rating [Max] 39500 N
Limiting Speed - Oil 6300 rpm
EAN or UPC 4991893654592
