category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
80 mm
manufacture:
Nachi America
mpn:
6016ZZNR
outer_diameter:
125 mm
subcategory:
Deep Groove Ball Bearing
upc:
4991893856972
weight:
1.88
width:
22 mm
Product Description

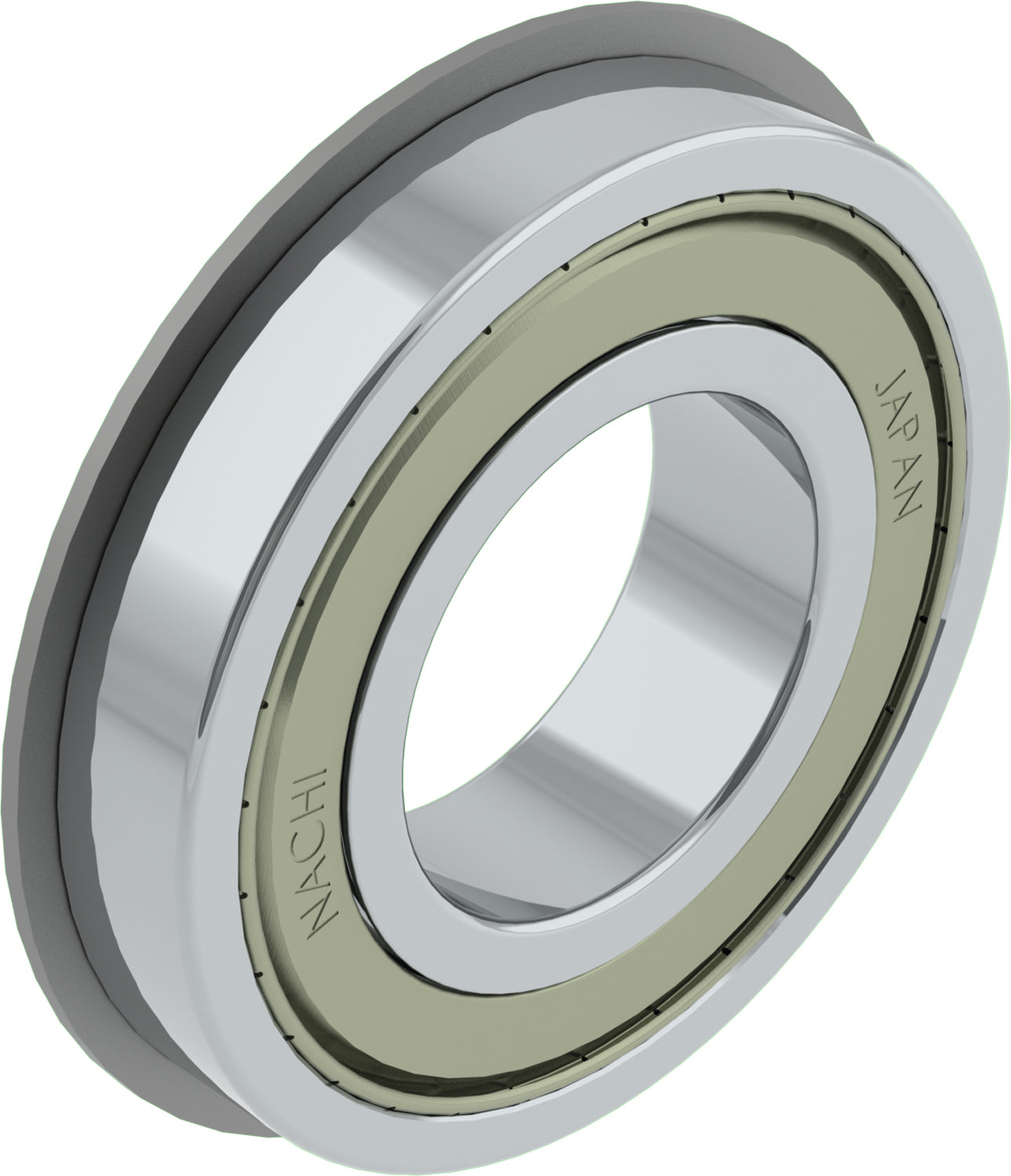

Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Outer Ring Material Steel
Dynamic Load Rating 47500 N
Snap Ring Yes
Temperature Range [Max] 248 °F
Width 22 mm
Seals or Shields 2 Shields
Cage Material Steel
Inner Ring Material Steel
Limiting Speed - Grease 5300 rpm
Bearing Type Deep Groove
ISO Precision Class P0
Rolling Element Material Steel
Ball Material Steel
Bore Type Cylindrical Bore
Static Load Rating [Max] 39500 N
Grease Fill Chevron SRI#2
EAN or UPC 4991893856972
