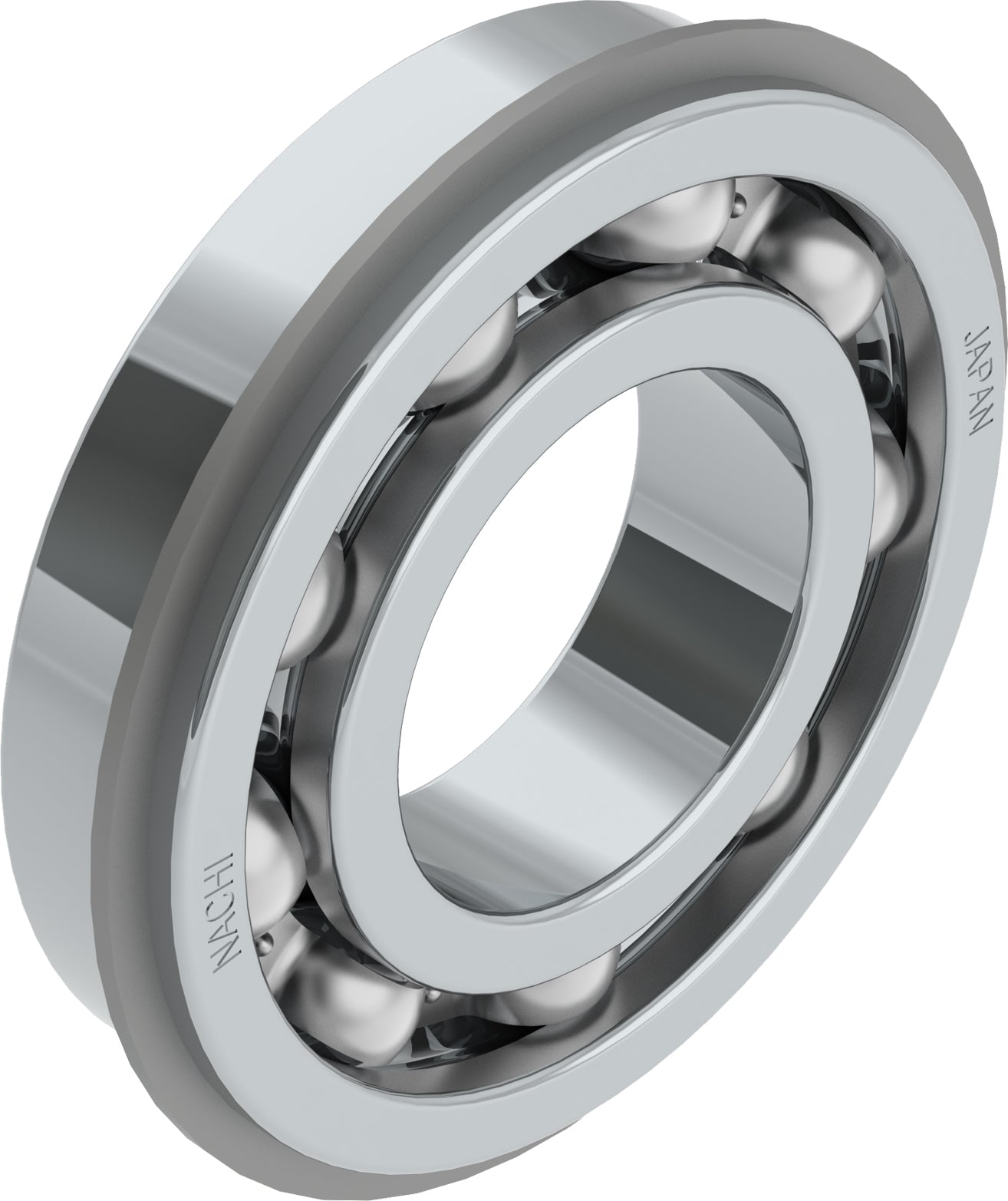

Nachi America - 6020NR Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
ISO Precision Class P0
Outer Ring Material Steel
Bore Type Cylindrical Bore
Seals or Shields No
Cage Material Steel
Static Load Rating [Max] 54000 N
Limiting Speed - Grease 4300 rpm
Rolling Element Material Steel
Snap Ring Yes
Dynamic Load Rating 60000 N
Temperature Range [Max] 248 °F
Bearing Type Deep Groove
Ball Material Steel
Width 24 mm
Limiting Speed - Oil 5300 rpm
Inner Ring Material Steel
EAN or UPC 4991893658682
CategoryBall Bearings
Country of originJapan
Inner diameter100 mm
ManufactureNachi America
Mpn6020NR
Outer diameter150 mm
SubcategoryDeep Groove Ball Bearing
Upc4991893658682
Weight2.78
Width24 mm
