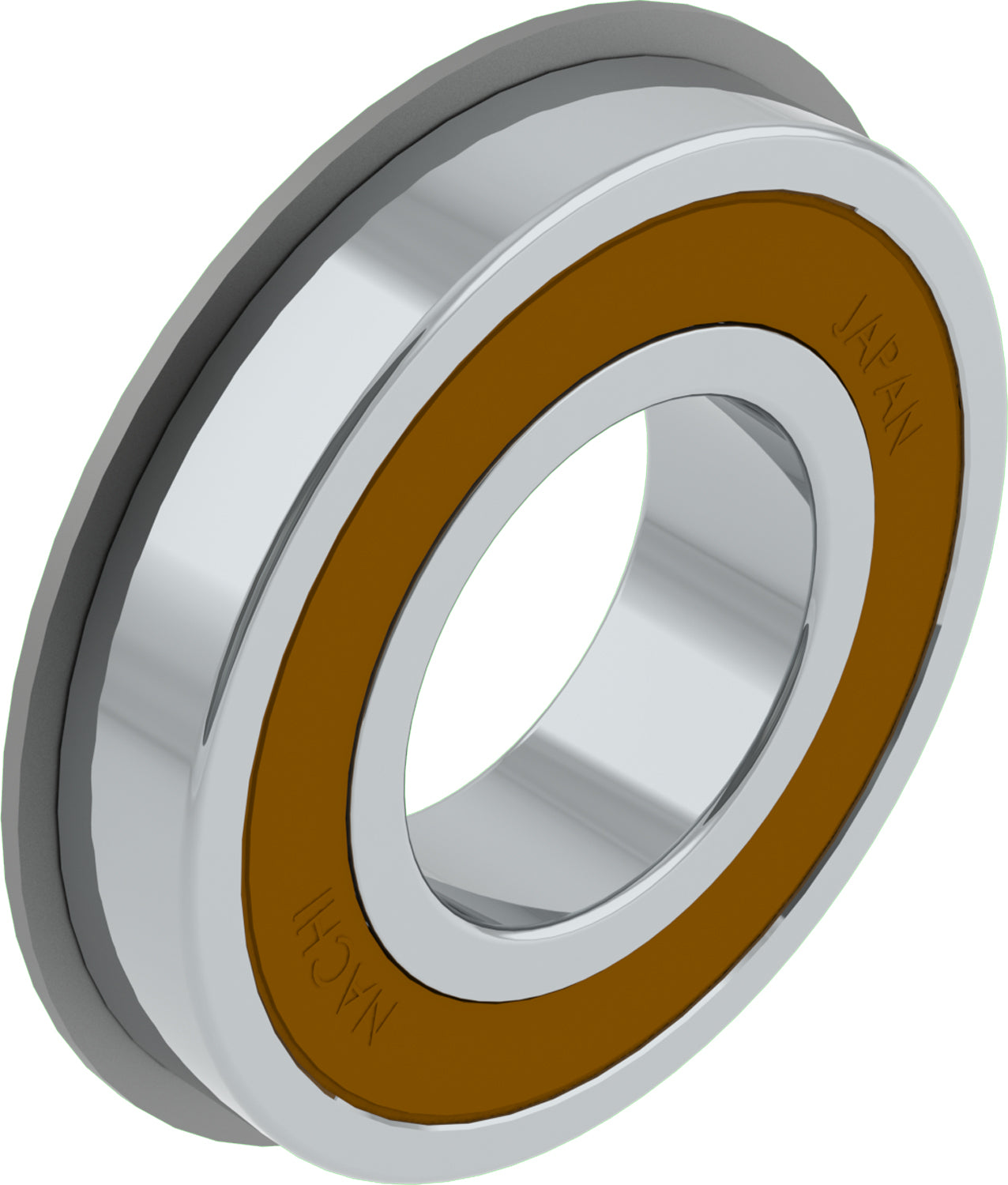

Nachi America - 6213-2NSENRC3 Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Limiting Speed - Grease 3600 rpm
Ball Material Steel
Static Load Rating [Max] 40000 N
Rolling Element Material Steel
Dynamic Load Rating 57000 N
Grease Fill Chevron SRI#2
Inner Ring Material Steel
Bearing Type Deep Groove
Outer Ring Material Steel
Temperature Range [Max] 248 °F
Seals or Shields 2 Contact Seals
Bore Type Cylindrical Bore
Cage Material Steel
ISO Precision Class P0
Snap Ring Yes
Width 23 mm
EAN or UPC 4991893857313
CategoryBall Bearings
Country of originJapan
Inner diameter65 mm
ManufactureNachi America
Mpn6213-2NSENRC3
Outer diameter120 mm
SubcategoryDeep Groove Ball Bearing
Upc4991893857313
Weight2.18
Width23 mm
