category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
25 mm
manufacture:
Nachi America
mpn:
6305ZZENR
outer_diameter:
62 mm
subcategory:
Deep Groove Ball Bearing
upc:
4991893535471
weight:
0.51
width:
17 mm
Product Description

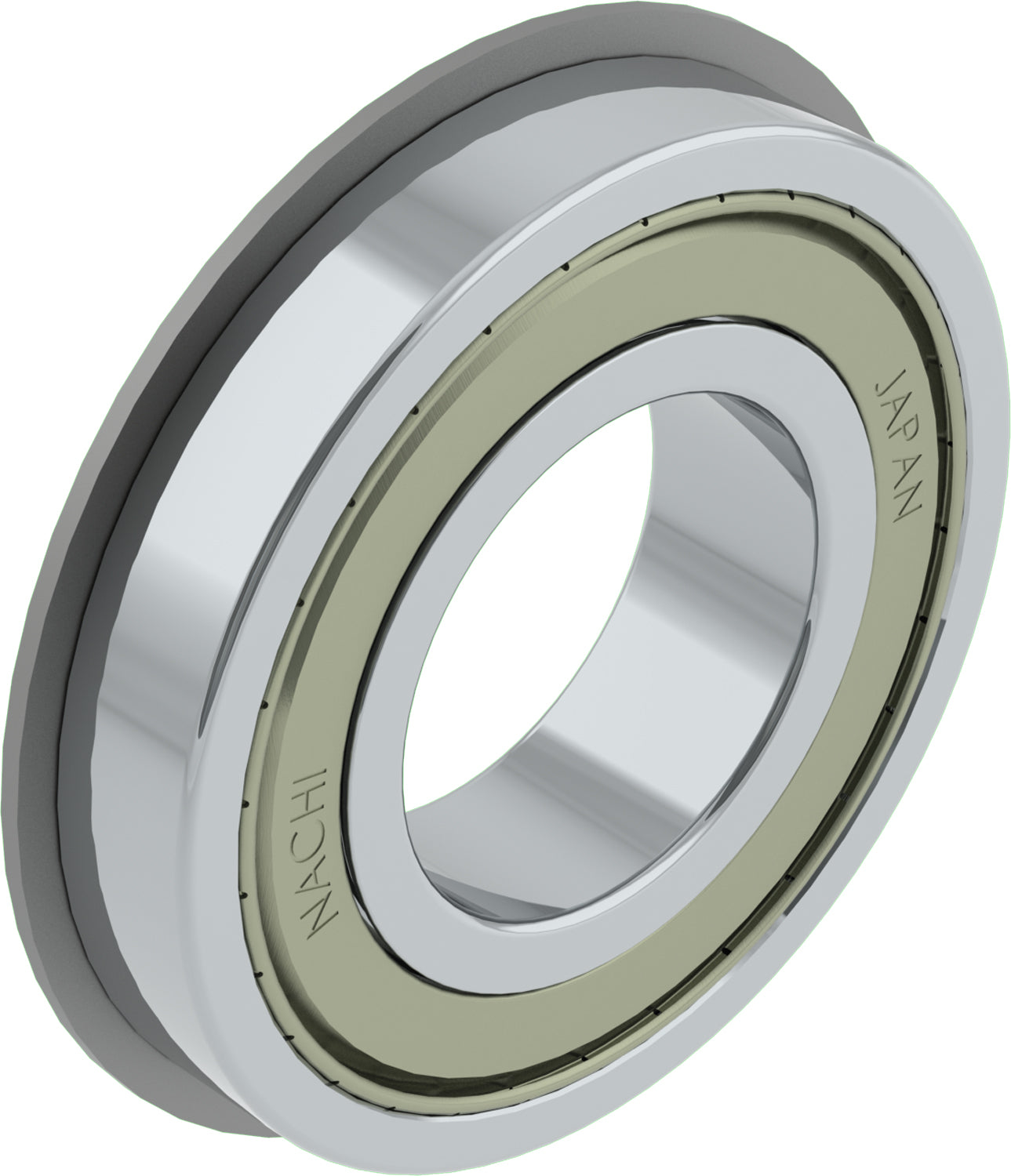

Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Bearing Type Deep Groove
Temperature Range [Max] 248 °F
Dynamic Load Rating 23600 N
Cage Material Steel
Grease Fill Chevron SRI#2
Static Load Rating [Max] 12100 N
Limiting Speed - Grease 12000 rpm
Rolling Element Material Steel
Inner Ring Material Steel
Snap Ring Yes
Ball Material Steel
Outer Ring Material Steel
Width 17 mm
ISO Precision Class P0
Seals or Shields 2 Shields
Bore Type Cylindrical Bore
EAN or UPC 4991893535471
