category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
80 mm
manufacture:
Nachi America
mpn:
6316NRC3
outer_diameter:
170 mm
subcategory:
Deep Groove Ball Bearing
upc:
4991893793154
weight:
7.91
width:
39 mm

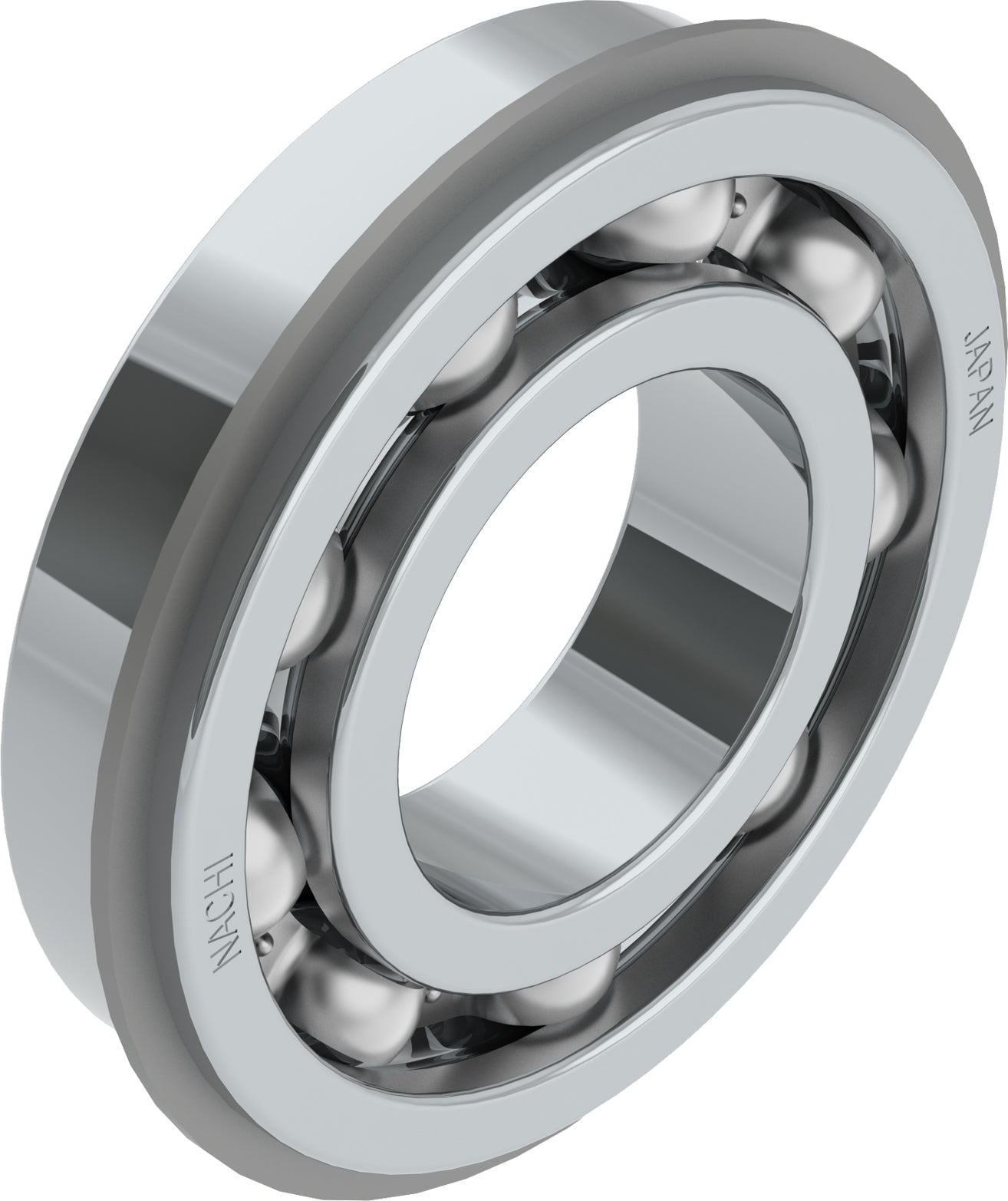

Product Description
Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Bore Type Cylindrical Bore
Cage Material Steel
ISO Precision Class P0
Bearing Type Deep Groove
Outer Ring Material Steel
Rolling Element Material Steel
Inner Ring Material Steel
Dynamic Load Rating 123000 N
Temperature Range [Max] 248 °F
Seals or Shields No
Ball Material Steel
Limiting Speed - Grease 4000 rpm
Width 39 mm
Static Load Rating [Max] 86500 N
Snap Ring Yes
Limiting Speed - Oil 4800 rpm
EAN or UPC 4991893793154
