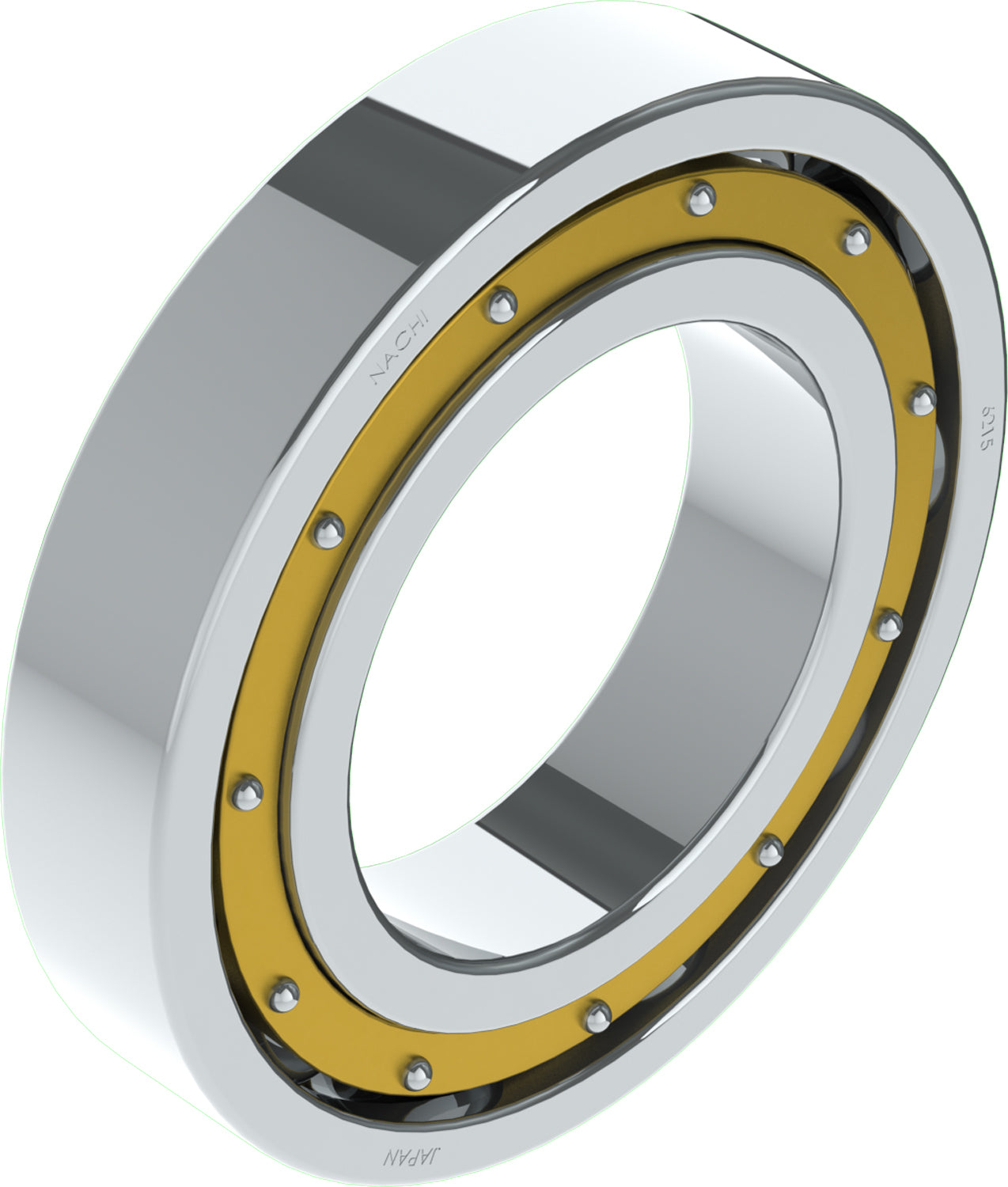

Nachi America - 6326MYC3 Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Snap Ring No
Cage Material Machined High Strength Brass Cage
ISO Precision Class P0
Temperature Range [Max] 248 °F
Rolling Element Material Steel
Ball Material Steel
Bore Type Cylindrical Bore
Dynamic Load Rating 229000 N
Width 58 mm
Outer Ring Material Steel
Inner Ring Material Steel
Limiting Speed - Oil 2800 rpm
Seals or Shields No
Static Load Rating [Max] 214000 N
Limiting Speed - Grease 2400 rpm
Bearing Type Deep Groove
EAN or UPC 4991893797817
CategoryBall Bearings
Country of originJapan
Inner diameter130 mm
ManufactureNachi America
Mpn6326MYC3
Outer diameter280 mm
SubcategoryDeep Groove Ball Bearing
Upc4991893797817
Weight40.12
Width58 mm
