category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
180 mm
manufacture:
Nachi America
mpn:
6336MYC3
outer_diameter:
380 mm
subcategory:
Deep Groove Ball Bearing
upc:
4991893857849
weight:
92.35
width:
75 mm

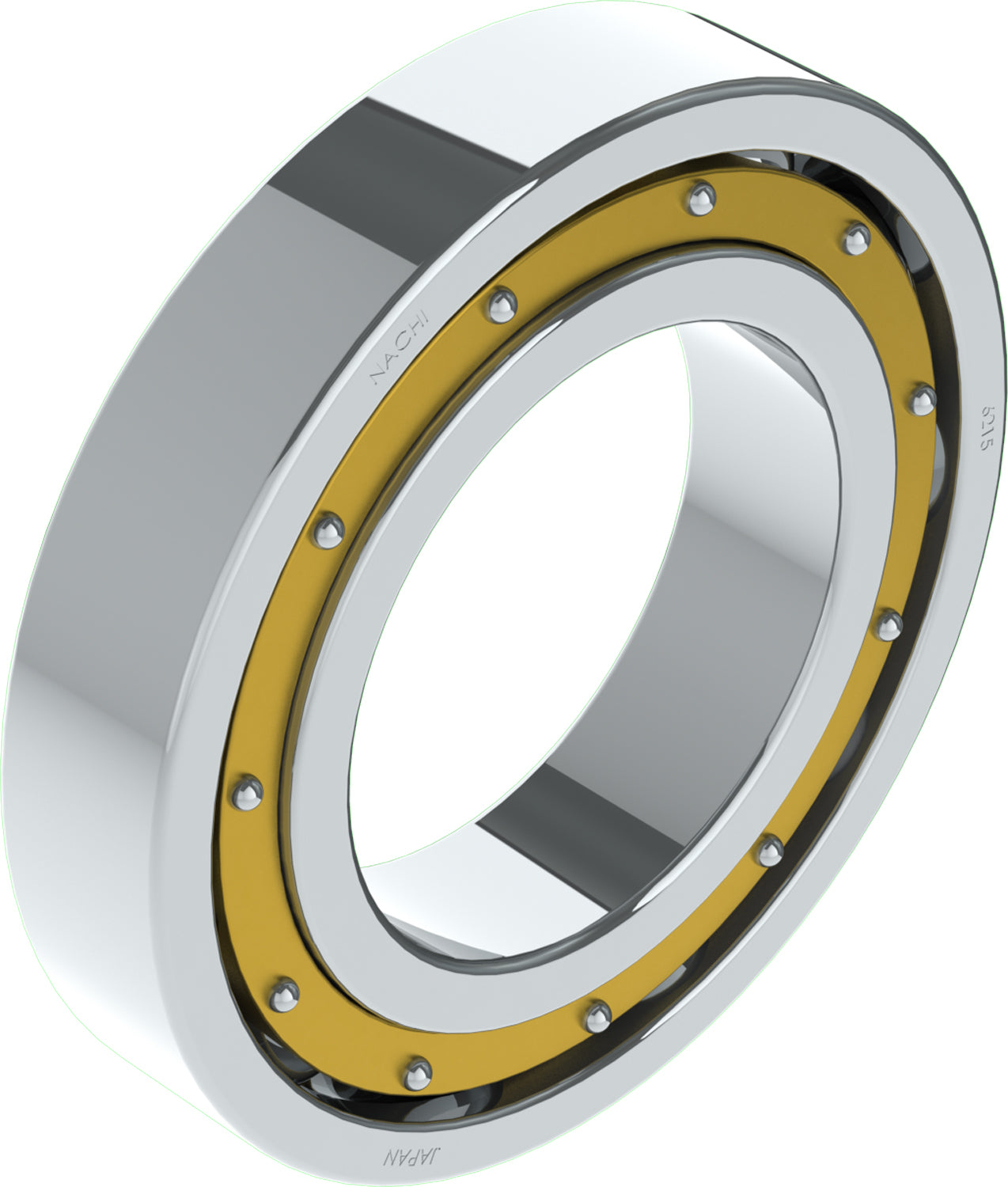

Product Description
Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Snap Ring No
Limiting Speed - Grease 1700 rpm
Bore Type Cylindrical Bore
Ball Material Steel
Width 75 mm
Seals or Shields No
Outer Ring Material Steel
Cage Material Machined High Strength Brass Cage
Rolling Element Material Steel
ISO Precision Class P0
Limiting Speed - Oil 2000 rpm
Inner Ring Material Steel
Bearing Type Deep Groove
Temperature Range [Max] 248 °F
Static Load Rating [Max] 360000 N
Dynamic Load Rating 325000 N
EAN or UPC 4991893857849
