category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
320 mm
manufacture:
Nachi America
mpn:

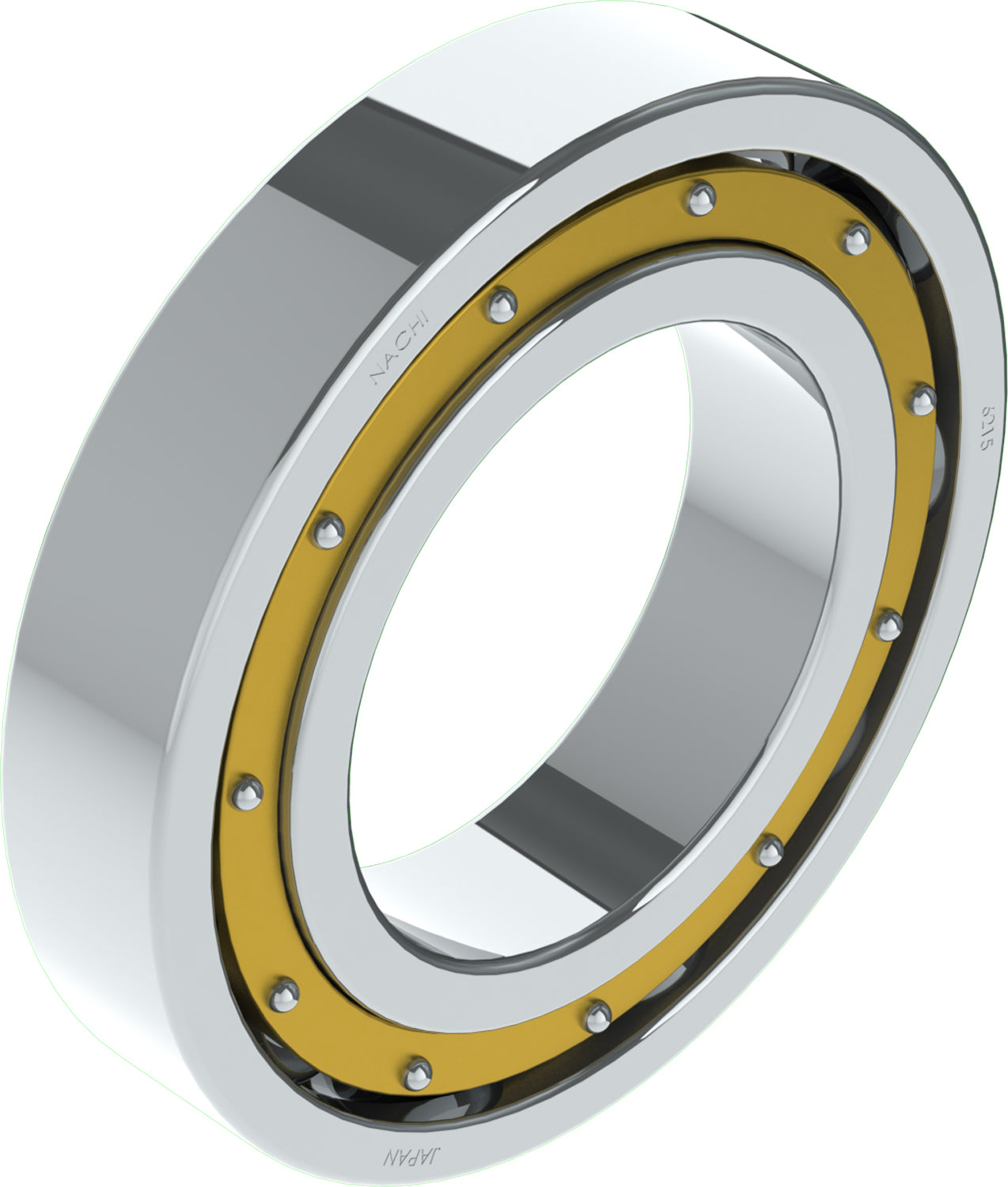

6864MY
outer_diameter:
400 mm
subcategory:
Deep Groove Ball Bearing
upc:
4991893540765
weight:
19.10
width:
38 mm
Product Description
Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Static Load Rating [Max] 218000 N
Limiting Speed - Grease 1400 rpm
Seals or Shields No
ISO Precision Class P0
Rolling Element Material Steel
Snap Ring No
Ball Material Steel
Bore Type Cylindrical Bore
Width 38 mm
Limiting Speed - Oil 1600 rpm
Outer Ring Material Steel
Dynamic Load Rating 164000 N
Bearing Type Deep Groove
Temperature Range [Max] 248 °F
Inner Ring Material Steel
Cage Material Machined High Strength Brass Cage
EAN or UPC 4991893540765
