category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
110 mm
manufacture:
Nachi America
mpn:
7322BMBUC3
outer_diameter:
240 mm
subcategory:
Angular Contact Ball Bearing
weight:
24.20
width:
50 mm
Product Description

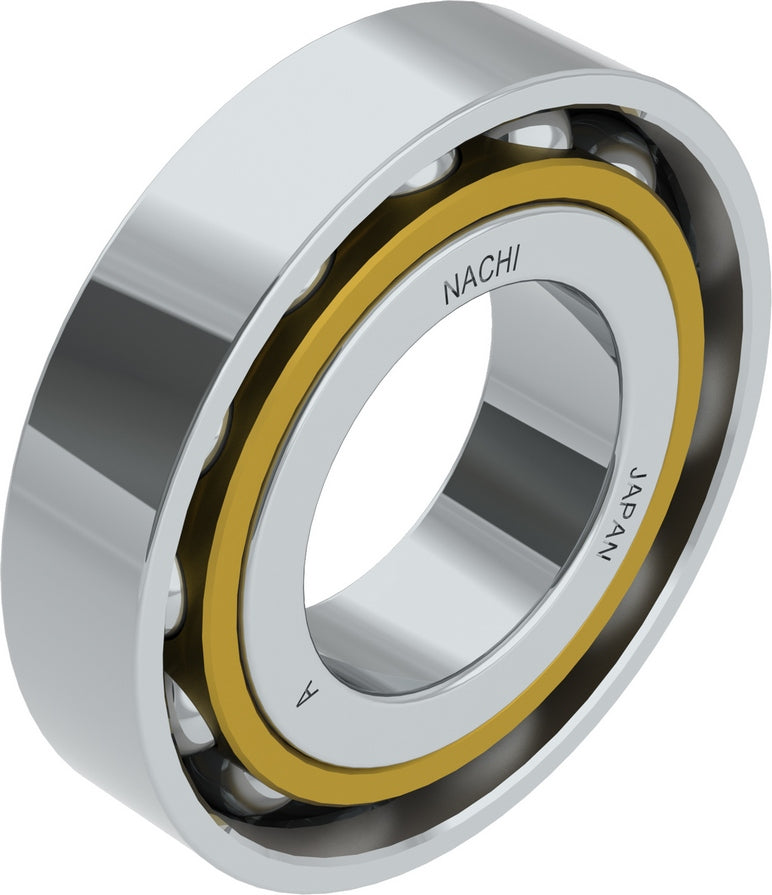

Nachi's new BMBU 40 degree angular contact ball bearings have a counter bored inner ring and new optimized cage for better lubricant flow, especially in vertical shaft electric motor applications. Lower rotating mass results in better energy efficiency.
Additional Information
Universally (Flush) Ground Yes
Contact Angle 40°
Outer Ring Material Steel
Width 50 mm
Inner Ring Material Steel
Rolling Element Material Steel
Ball Material Steel
Seals or Shields No
Bore Type Cylindrical Bore
ISO Precision Class P0
Dynamic Load Rating 231000 N
Limiting Speed - Grease 2300 rpm
Limiting Speed - Oil 2900 rpm
Bearing Type Angular Contact
Temperature Range [Max] 248 °F
Cage Material Brass
Static Load Rating [Max] 227000 N
