category:
Cylindrical & Needle Bearings
country_of_origin:
Japan
inner_diameter:
120 mm
manufacture:
Nachi America
mpn:
E5024XNNTS1
outer_diameter:
180 mm
subcategory:
Double Row Cylindrical Roller Sheave Bearing
upc:
4991893332377
weight:
15.32
width:
80 mm
Product Description

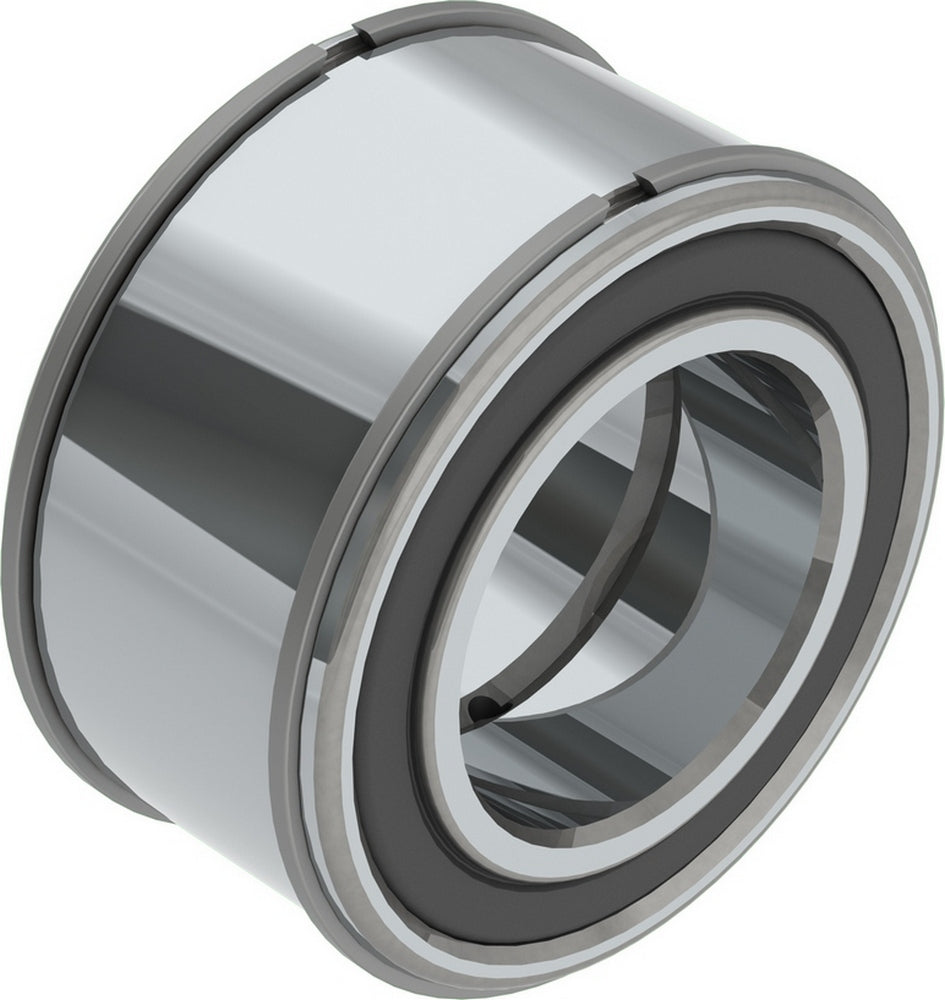

Nachi America - E5024XNNTS1 This bearing type is designed as a double row, full complement Cylindrical Roller bearing with ribs on both inner and outer rings. These bearings will sustain heavy radial load, and will handle moment load and will also take some axial load. Sheave bearings are suitable for a wide variety of uses in addition to sheaves. They are used for hoisting drum and wheel applications, and other applications which operate under heavy load at low speed.
Features
Easy to locate axially by using snap rings on both sides of the outer ring. Center groove and holes on the inner ring allow for easy relubrication.
Additional Information
Bore Type Cylindrical Bore
Static Load Rating 750000 N
Dynamic Load Rating 400000 N
Radial Internal Clearance CN/C0
ISO Precision Class P0
Seals or Shields 2 NBR Contact Seals
Limiting Speed - Grease 850 rpm
Rows of Balls Double
Rolling Element Material Steel
Grease Fill Mobilux EP2
Inner Ring Material Steel
Cage Material Steel
Snap Ring With Snap Ring
Temperature Range [Max] 248 °F
Outer Ring Material Steel
EAN or UPC 4991893332377
