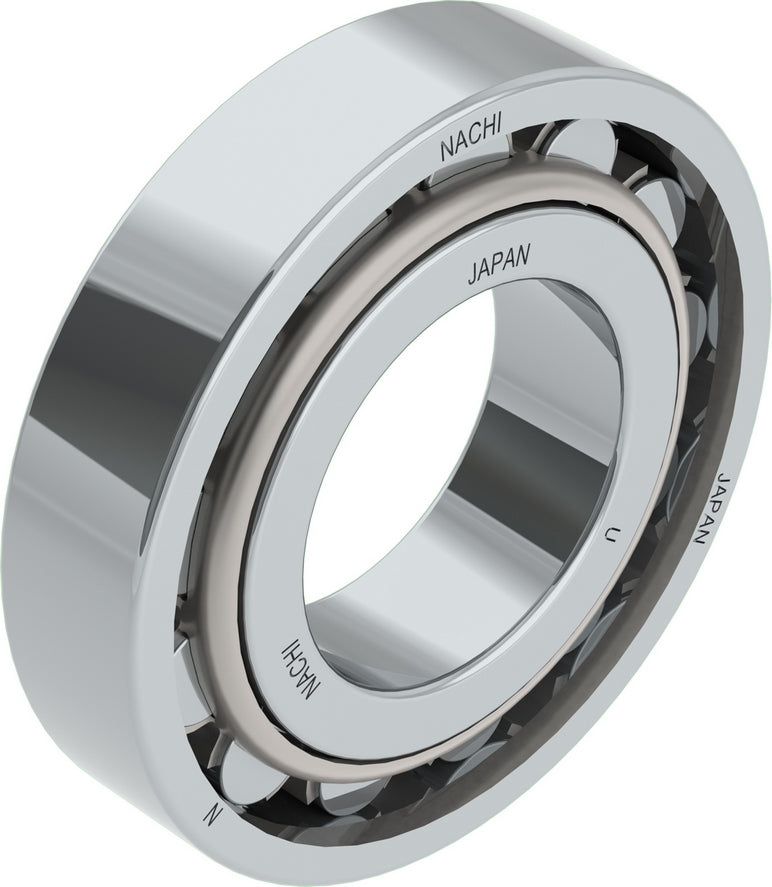

Nachi America N307LOEJAF Cylindrical Roller Bearing - Single Row With Steel Cage

Nachi America N307LOEJAF Cylindrical Roller Bearing - Single Row With Steel Cage

Dropship

Get it by Tue, Dec 24 - Sun, Dec 29

SKU SKU:kpi113-N307LOEJAF

Regular price $78.17 USD
Regular price Sale price $78.17 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Cylindrical & Needle Bearings
country_of_origin: Japan
inner_diameter: 35 mm
manufacture: Nachi America
mpn: N307LOEJAF
outer_diameter: 80 mm
subcategory: Cylindrical Roller Bearing - Single Row with Steel Cage
weight: 1.01
width: 21 mm

Product Description

Nachi America - N307LOEJAF Cylindrical Roller Bearings utilize a modified cylindrical roller that provides line contact with the inner and outer ring raceways. They are suitable for high speeds and have a high radial load capacity. The rollers are guided by ribs on either the inner or outer rings. Depending upon the configuration, the bearings may or may not be able to accept any axial loading. The inner and outer rings are separable which may aid in the assembly/disassembly of components. The ‘N’ Type bearings only have shoulders on both sides of the inner ring. This allows the shaft to move axially within the outer ring. This is important for thermal expansion. Stamped steel or machined brass (MY) cages are generally used. These bearings are most commonly used in gearboxes, rolling mills, crushers and pulverizers.

Features

Separable components simplify mounting,removal, and can be interchangable in configuration. Long life. Heavy radial load capacity. Not suitable for thrust loads. Accommodates axial expansion and contraction.

Additional Information

Rows of Balls Single
Radial Internal Clearance CN/C0
Snap Ring No Snap Ring
Static Load Rating 47000 N
ISO Precision Class P0
Limiting Speed - Grease 8000 rpm
Bore Type Cylindrical Bore
Limiting Speed - Oil 9500 rpm
Inner Ring Material Steel
Temperature Range [Max] 248 °F
Rolling Element Material Steel
Cage Material Steel
Outer Ring Material Steel
Dynamic Load Rating 49500 N
Seals or Shields No
