category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
70 mm
manufacture:
Nachi America
mpn:
SH6-6314ZZEC3
outer_diameter:
150 mm
subcategory:
Ceramic Hybrid Deep Groove Ball Bearing
upc:
4991893858921
weight:
5.56
width:
35 mm
Product Description

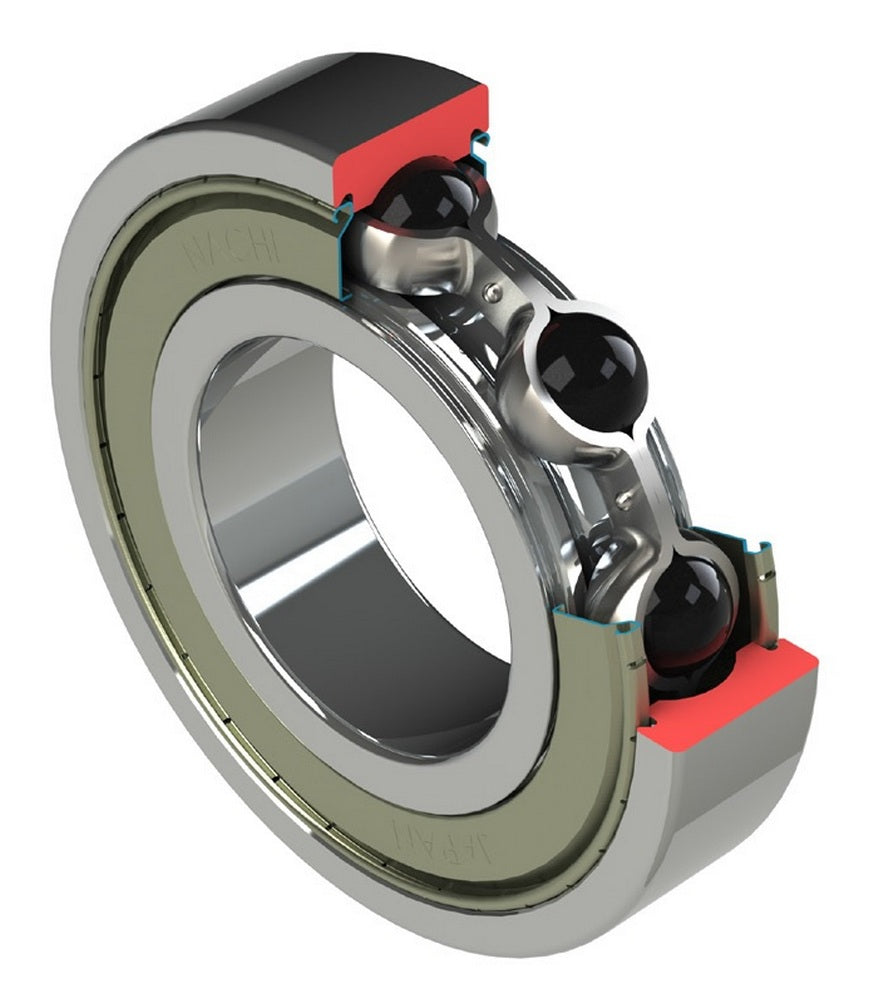

Nachi America - SH6-6314ZZEC3 NACHI Ceramic Hybrid Deep-Groove Ball Bearings have Silicone Nitride (ceramic) non-conductive rolling elements which prevent electric arcing damage that can occur from current passing through the bearing. This is primarily an issue in electric motors operated by frequency control. Ceramic Hybrid bearings also boast a 25% higher limiting speed due to the reduced weight of the balls compared to steel.
Features
Ceramic balls are non-conductive, lightweight, more rigid, and are more resistant to thermal expansion compared to steel. NACHI Ceramic Hybrid bearings are availible with 2 Shields (ZZE), C3 clearance, and Polyrex EM grease as standard.
Additional Information
Outer Ring Material Steel
Rolling Element Material Silicone Nitride
Grease Fill Polyrex EM
Snap Ring No
Ball Material Silicone Nitride
Dynamic Load Rating 13000 N
Bearing Type Deep Groove
Static Load Rating [Max] 85000 N
Seals or Shields 2 Shields
Width 35 mm
ISO Precision Class P0
Cage Material Steel
Inner Ring Material Steel
Temperature Range [Max] 248 °F
Limiting Speed - Grease 5750 rpm
Bore Type Cylindrical Bore
EAN or UPC 4991893858921
