category:
Motors
manufacturer:
Packard
mpn:
45471
subcategory:
HVAC
type:
48 Frame
Product Description

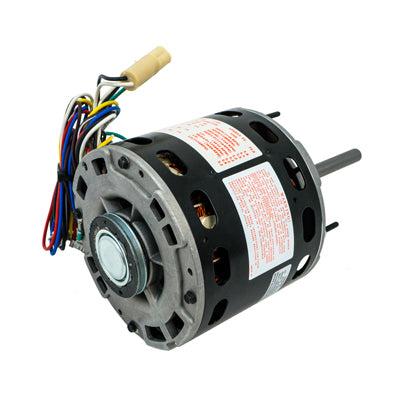

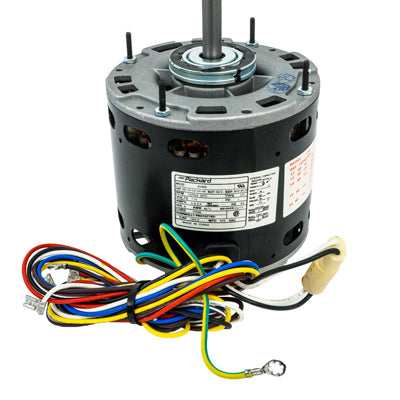

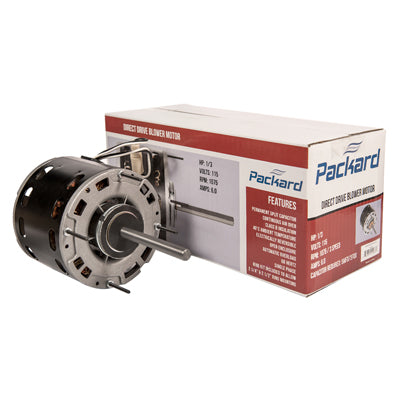

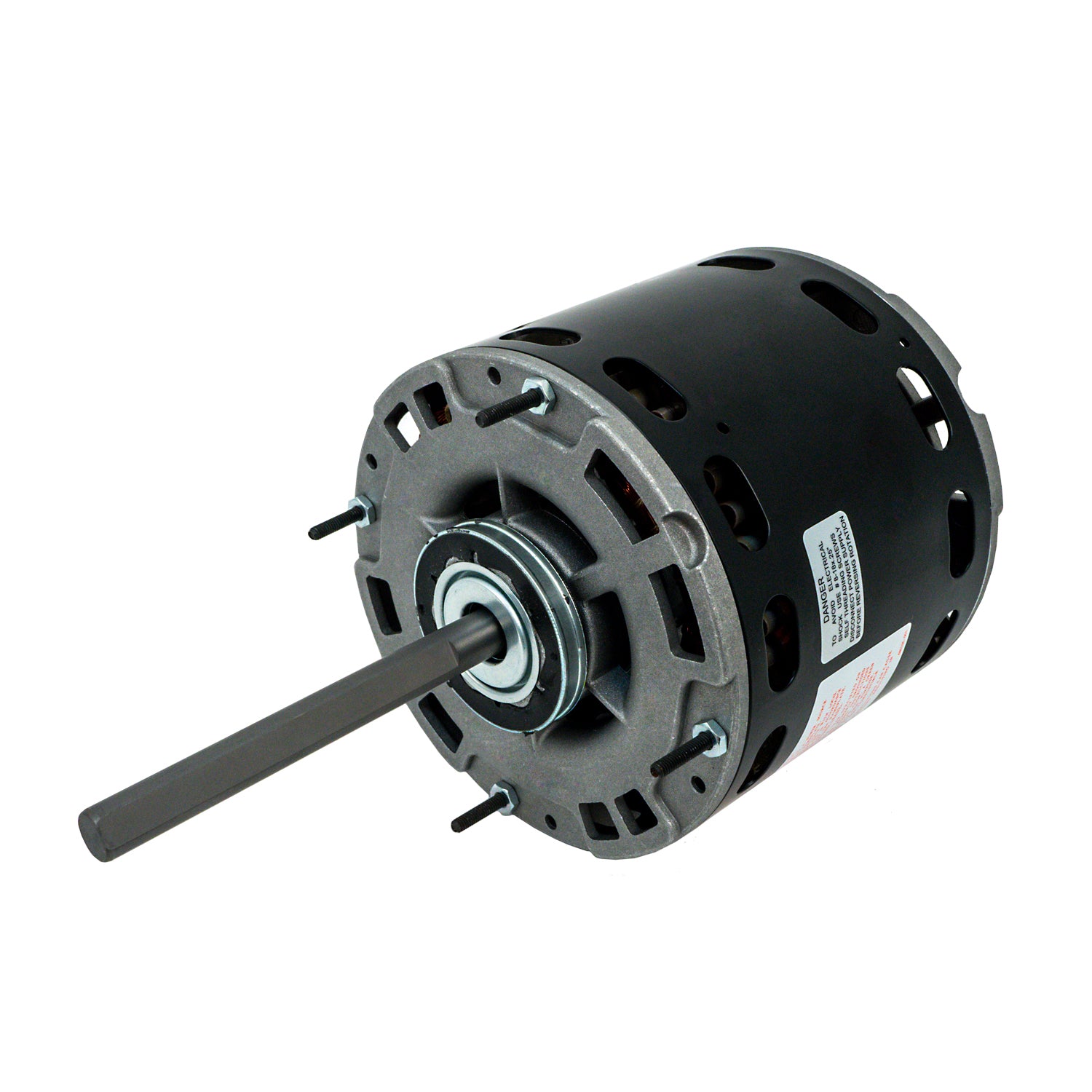

Packard - 45471
Additional Information
Motor Voltage208-230
Ambient Temp.40°C
Amps4.60-3.30-3.40-2.30-1.70
BrandPackard
BearingsBall
Capacitor RequiredHP 3/4 and 1/2 - 10MFD 370V
CertificationsUL, CSA
Country of OriginCHINA
Diameter (In.)5 5/8
EnclosureOpen
H.P.3/4-1/2-1/3-1/4-1/5
Hertz60
IncludesMounting Hardware Included
Insulation ClassB
Lead Lengths (In.)36"
Length Less Shaft (In.)4-7/8
MaterialRolled Steel
Motor RotationReversible
Motor TypePSC
Mounting OptionMounting Rings, Thru Bolts and Holes in Shell
NEMA Frame48
Overall Length (In.)10.42
Overload ProtectionAutomatic
PhaseSingle
RPM1075
Shaft Dimensions (In.) Dia x Lgth1/2 x 5
Speeds4
UPC840899112862
Voltage208 - 230
Emerson5471
Rheem51-21898-01
Mars22467
Smart Electric235216
TopTechTT-E75-MSP2
genteq3467
Nidec3313
US Motors3313
Source 1FHM3467
Source 1S1-FHM3467
First ChoiceY4650
