Product Description

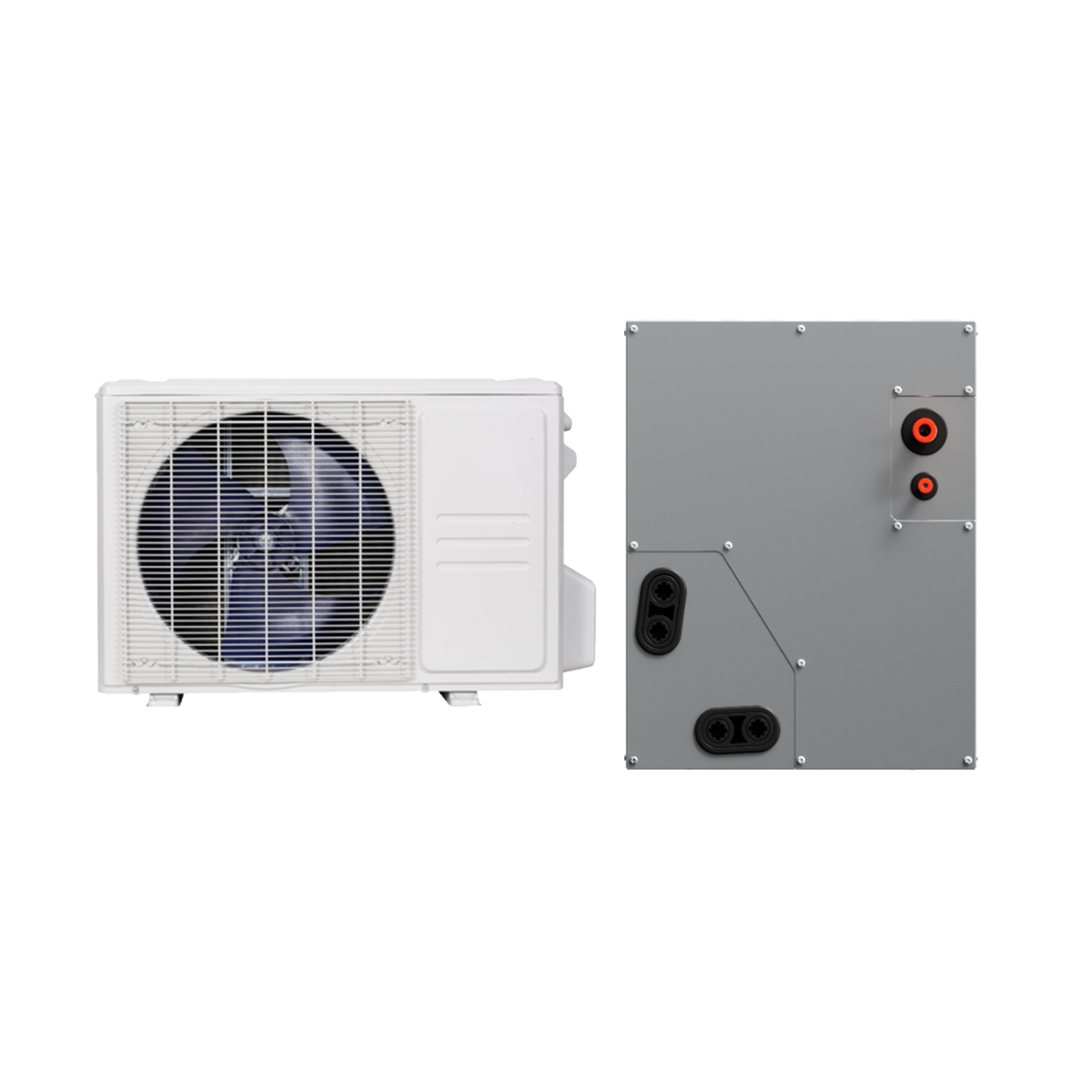

The Panasonic INTERIOS CS-HM60BAMU3 is a multi-position cased A-coil designed for hybrid and dual-fuel heating and cooling systems. It integrates with a new or existing furnace to provide whole-home heating and cooling. The A-coil is compatible with Panasonic CU-HM48BAHU and CU-HM55BAHU outdoor heat pump units and uses R454B refrigerant for cold-climate operation.
Key Features
- 4–5 ton hybrid A-coil heat pump system
- Compatible with CU-HM48BAHU and CU-HM55BAHU outdoor units
- Designed for hybrid and dual-fuel HVAC applications
- Integrates with a new or existing furnace
- Multi-position installation design
- R454B refrigerant
- A2L refrigerant sensor included
- Cold-climate heating operation down to -22°F (-30°C)
- EXV electronic expansion valve
- Easy-maintenance design
- Built-in base pan for cold-climate operation
- Central ducted whole-home heating and cooling
Indoor A-Coil Specifications
- Indoor Model: CS-HM60BAMU3
- Product Type: Cased A-Coil Heat Pump
- Application: Hybrid / Dual-Fuel Heating and Cooling
- Installation: Multi-position
- Indoor Power Supply: 24V, Single Phase, 60Hz
- Throttle Type: EXV
- A2L Refrigerant Sensor: Included
- ESP Range: 0–0.8 in. W.G.
- Indoor Dimensions (W x D x H): 21.61 x 21.50 x 27.80 in
- Indoor Dimensions (W x D x H): 549 x 546 x 706 mm
- Package Dimensions (W x D x H): 31.10 x 25.00 x 25.59 in
- Package Dimensions (W x D x H): 790 x 635 x 650 mm
- Net Weight: 96.78 lb (43.9 kg)
- Gross Weight: 115.08 lb (52.2 kg)
4 Ton Configuration – CU-HM48BAHU
- Outdoor Unit: CU-HM48BAHU
- Rated Cooling Capacity: 45,000 BTU/h
- Cooling Capacity Range: 16,000–48,000 BTU/h
- Rated Heating Capacity at 47°F: 48,000 BTU/h
- Heating Capacity Range at 47°F: 16,000–50,000 BTU/h
- Heating Capacity at 17°F: 34,400 BTU/h
- Heating Capacity at 5°F: 42,000 BTU/h
- Maximum Heating Capacity at 5°F: 42,000 BTU/h
- COP at 5°F: 1.85
- SEER2: 15.2
- EER2: 10.0
- HSPF2 Region IV: 8.8
- HSPF2 Region V: 7.4
- COP: 3.12
60K Configuration – CU-HM55BAHU
- Outdoor Unit: CU-HM55BAHU
- Rated Cooling Capacity: 52,000 BTU/h
- Cooling Capacity Range: 23,400–55,500 BTU/h
- Rated Heating Capacity at 47°F: 56,000 BTU/h
- Heating Capacity Range at 47°F: 11,700–61,300 BTU/h
- Heating Capacity at 17°F: 37,800 BTU/h
- Heating Capacity at 5°F: 45,000 BTU/h
- Maximum Heating Capacity at 5°F: 45,000 BTU/h
- COP at 5°F: 1.8
- Moisture Removal: 8.4 L/h
- SEER2: 15.9
- EER2: 10.0
- HSPF2 Region IV: 8.5
- HSPF2 Region V: 6.9
- COP: 2.8
Outdoor Unit Specifications – CU-HM48BAHU
- Compressor Type: Rotary
- Compressor Model: MTH550UKPC8FU
- Refrigerant: R454B
- Refrigerant Oil: HAF68D1C
- Refrigerant Oil Charge: 1,800 mL
- Maximum Outdoor Airflow: 3,037.1 CFM
- Outdoor Noise Level: 65 dBA
- Outdoor Dimensions (W x D x H): 38.58 x 16.34 x 38.39 in
- Outdoor Dimensions (W x D x H): 980 x 415 x 975 mm
- Outdoor Net Weight: 201.06 lb (91.2 kg)
- Outdoor Gross Weight: 232.36 lb (105.4 kg)
Outdoor Unit Specifications – CU-HM55BAHU
- Compressor Type: Twin-Rotary
- Compressor Model: ETPQ480D66UMU1
- Refrigerant: R454B
- Refrigerant Oil: VG75
- Refrigerant Oil Charge: 1,300 mL
- Maximum Outdoor Airflow: 2,649 CFM
- Outdoor Noise Level: 64 dBA
- Outdoor Dimensions (W x D x H): 37.48 x 16.34 x 52.48 in
- Outdoor Dimensions (W x D x H): 952 x 415 x 1,333 mm
- Outdoor Net Weight: 242.95 lb (110.2 kg)
- Outdoor Gross Weight: 275.13 lb (124.8 kg)
Electrical Specifications – CU-HM48BAHU
- Outdoor Power Supply: 208/230V, Single Phase, 60Hz
- Outdoor MCA: 38 A
- Outdoor MOP: 40 A
- Compressor RLA: 28 A
- Outdoor Fan Motor RLA: 2 A
- Communication Wiring: AWG 20-2
- Cooling System Power Input: 4,500 W rated (1,400–5,080 W)
- Heating System Power Input: 4,500 W rated (1,200–5,300 W)
Electrical Specifications – CU-HM55BAHU
- Outdoor Power Supply: 208/230V, Single Phase, 60Hz
- Outdoor MCA: 40 A
- Outdoor MOP: 40 A
- Compressor RLA: 31 A
- Outdoor Fan Motor RLA: 1.2 A
- Communication Wiring: AWG 20-2
- Cooling System Power Input: 5,200 W rated (1,870–6,000 W)
- Heating System Power Input: 5,861 W rated (1,090–6,270 W)
Refrigerant and Piping Specifications
- Refrigerant: R454B
- Liquid Line Size: 3/8 in (9.52 mm)
- Gas Line Size: 3/4 in (19 mm)
- Connection Method: Flared
- Indoor Throttle Type: EXV
- Outdoor Throttle Type: EXV
- Maximum Piping Length: 246 ft (75 m)
- Maximum Height Difference: 98 ft (30 m)
- Maximum Pre-Charged Length: 24.6 ft (7.5 m)
- Additional Refrigerant Charge: 0.7 oz/ft (65 g/m)
Refrigerant Charge
- CU-HM48BAHU Factory Refrigerant Charge: 134.04 oz (3.8 kg)
- CU-HM55BAHU Factory Refrigerant Charge: 183.42 oz (5.2 kg)
Operating Conditions
- Cooling Outdoor Operating Range: -22°F to 122°F (-30°C to 50°C)
- Heating Outdoor Operating Range: -22°F to 75°F (-30°C to 24°C)
- Cold Climate Heating Operation: Down to -22°F (-30°C)
System Compatibility
- Indoor Unit: CS-HM60BAMU3
- Compatible Outdoor Unit: CU-HM48BAHU
- Compatible Outdoor Unit: CU-HM55BAHU
- Refrigerant: R454B
- System Type: Panasonic INTERIOS Hybrid A-Coil Heat Pump
