Product Description

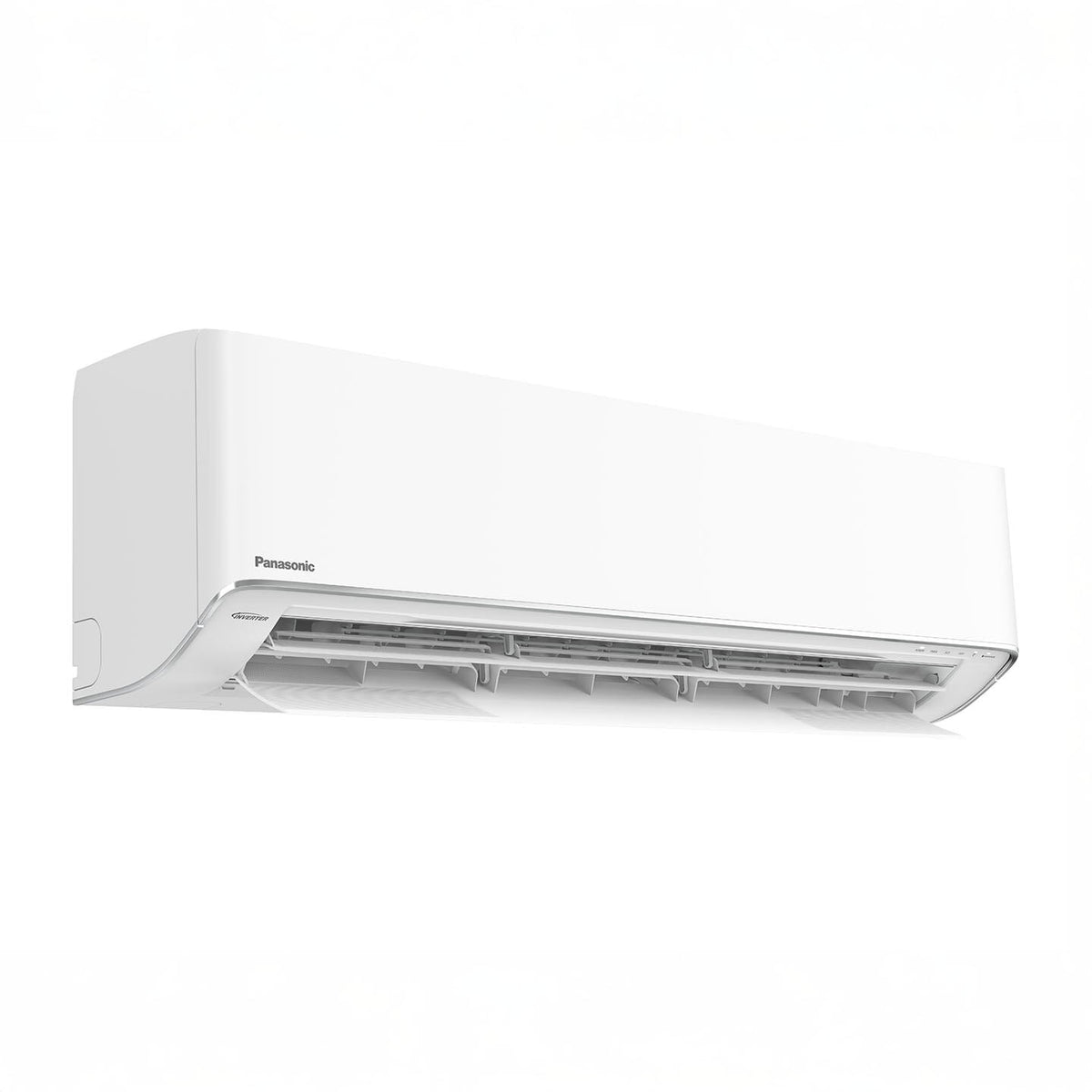

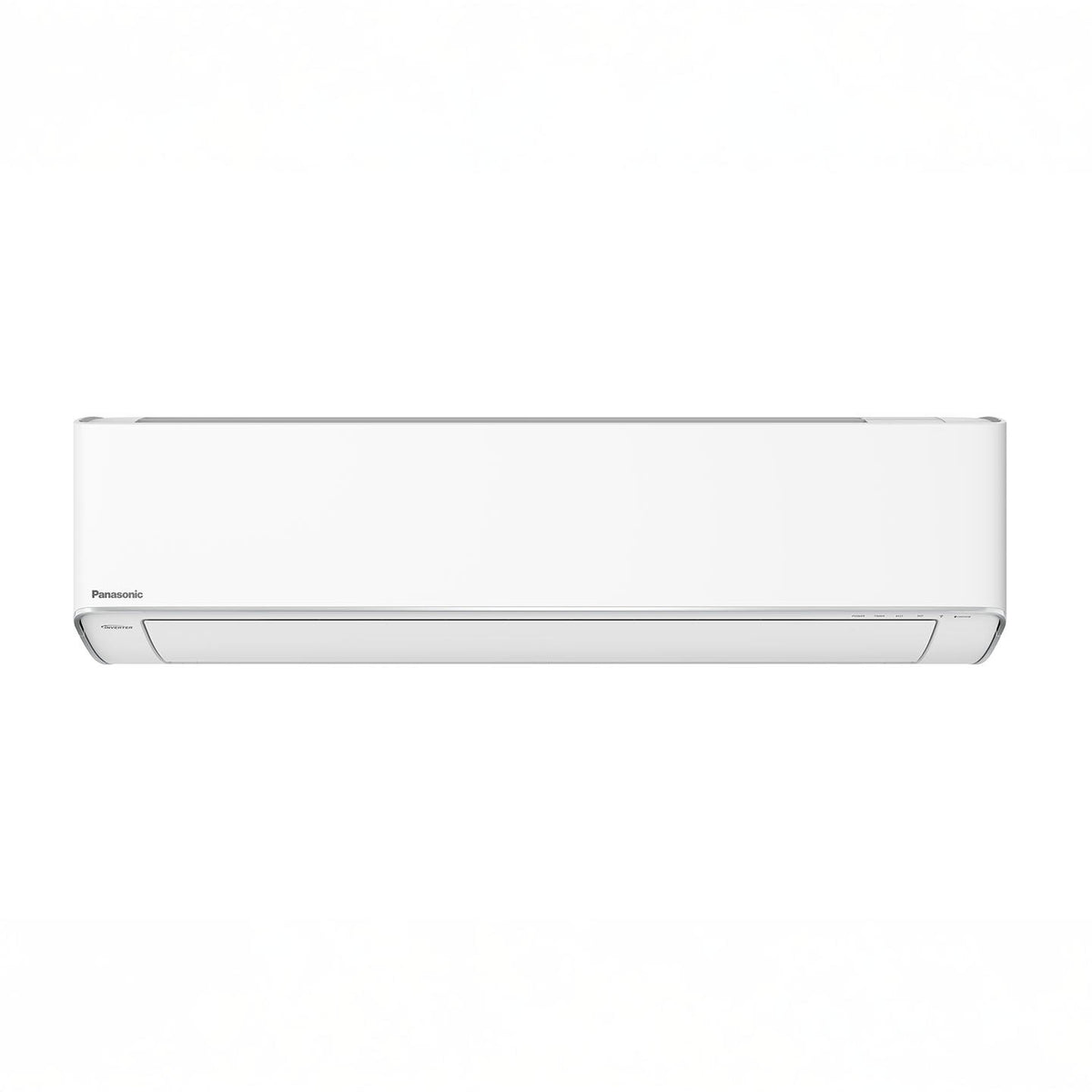

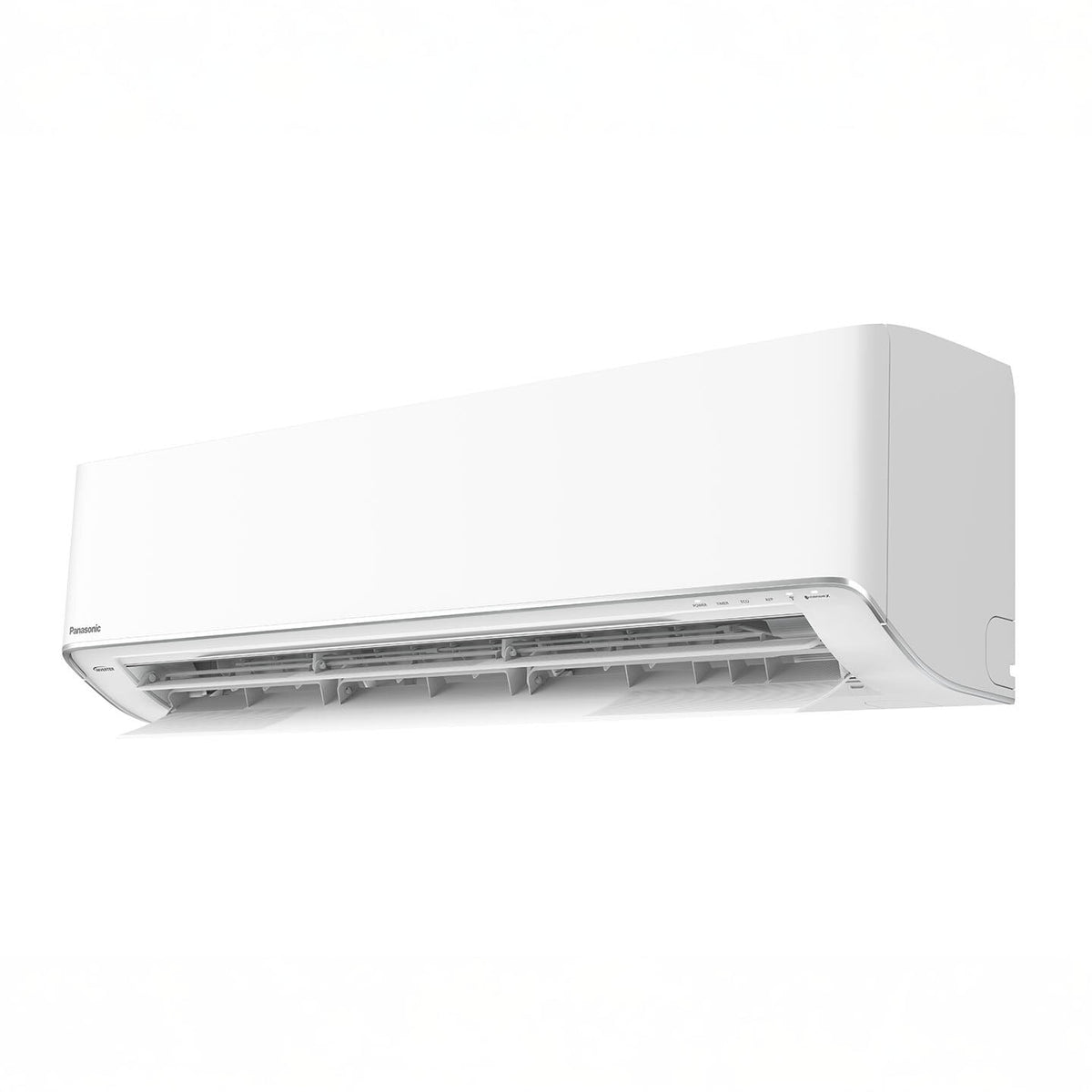

The Panasonic ClimaPure XZ Series CS-XZ18AKUAW is a wall-mounted indoor unit designed for ductless heating and air conditioning applications. It is part of the XZ18AKUA single-split system and pairs with the CU-XZ18AKUAC outdoor unit to provide efficient zoned temperature control.
The matched system delivers a rated cooling capacity of 17,200 BTU/h and a rated heating capacity of 20,400 BTU/h. Inverter-driven operation allows the system to adjust capacity according to changing comfort requirements. The system supports cold-climate heating operation down to -15°F (-26°C) and uses R32 refrigerant.
The CS-XZ18AKUAW features Panasonic's improved nanoe™ X air and surface purification technology, AI ECO operation, built-in Wi-Fi, Comfort Cloud app compatibility, a wireless remote control, fireplace function, and an included base pan heater. Panasonic also specifies that this indoor unit can be used for compatible multi-zone installations.
Key Features
- ClimaPure XZ Series wall-mounted indoor unit
- Designed for ductless heating and air conditioning
- Rated cooling capacity of 17,200 BTU/h
- Cooling capacity range of 6,100–22,200 BTU/h
- Rated heating capacity of 20,400 BTU/h
- Heating capacity range of 6,800–30,400 BTU/h
- Cold-climate heating operation down to -15°F (-26°C)
- Improved nanoe™ X air and surface purification technology
- AI ECO technology for balancing energy savings and comfort
- Built-in Wi-Fi
- Panasonic Comfort Cloud app compatibility
- Wireless remote control included
- Fireplace function
- Base pan heater included
- R32 refrigerant
- ENERGY STAR® Cold Climate Certified system
- Indoor unit can also be used for compatible multi-zone installations
Specifications
- Brand: Panasonic
- Series: ClimaPure XZ
- Model: CS-XZ18AKUAW
- System SKU: XZ18AKUA
- Product Type: Ductless Mini-Split Indoor Unit
- Compatible Outdoor Unit: CU-XZ18AKUAC
- System Type: Single-Split Heat Pump
- Cooling Capacity: 17,200 BTU/h rated
- Cooling Capacity Range: 6,100–22,200 BTU/h
- Cooling Capacity: 5.04 kW
- Heating Capacity: 20,400 BTU/h rated
- Heating Capacity Range: 6,800–30,400 BTU/h
- Heating Capacity: 5.97 kW
- Moisture Removal: 3.6 pints/hour, high
- Indoor Airflow – Cooling: 610 CFM, high
- Indoor Airflow – Heating: 630 CFM, high
- SEER2: 22.00
- EER2: 13.65
- HSPF2 Region 4: 11.70
- HSPF2 Region 5: 8.80
- Power Supply: 208/230V, single phase, 60Hz
- Power Input – Cooling: 1,260 W
- Power Input – Heating: 1,540 W
- Refrigerant: R32
- Indoor Unit Dimensions: 11-5/8" H x 40-31/32" W x 9-5/8" D
- Indoor Unit Dimensions: 295 x 1040 x 244 mm
- Indoor Unit Weight: 31 lbs (14 kg)
Performance Attributes
- Cooling Capacity – Min / Rated / Max: 6,100 / 17,200 / 22,200 BTU/h
- Heating Capacity – Min / Rated / Max: 6,800 / 20,400 / 30,400 BTU/h
- Cooling Power Input – Min / Rated / Max: 0.44 / 1.26 / 1.66 kW
- Heating Power Input – Min / Rated / Max: 0.40 / 1.54 / 2.60 kW
- SEER2: 22.00
- EER2: 13.65
- HSPF2 Region 4: 11.70
- HSPF2 Region 5: 8.80
- COP: 3.88
- Maximum Input Power: 2,600 W
- Maximum Current: 11.3 A
- Starting Current: 7.6 A
- Heating Capacity at 17°F: 21,000 BTU/h
- Maximum Heating Capacity at 5°F: 17,800 BTU/h
- Compressor Type: Inverter-driven hermetic rotary
- Compressor Motor: Brushless, 6-pole
- Compressor Output: 1,500 W
Noise Attributes
- Indoor Noise – Cooling: 46 / 37 / 33 dB-A (High / Low / Quiet-Low)
- Indoor Noise – Heating: 46 / 37 / 34 dB-A (High / Low / Quiet-Low)
- Indoor Sound Power Level – Cooling: 62 dB
- Indoor Sound Power Level – Heating: 62 dB
- Outdoor Noise – Cooling: 50 dB-A
- Outdoor Noise – Heating: 52 dB-A
System Attributes
- Indoor Unit: CS-XZ18AKUAW
- Outdoor Unit: CU-XZ18AKUAC
- System Type: Single-Split Heat Pump
- Installation Type: Ductless
- Operation: Heating and Cooling
- Cold Climate Heating: Down to -15°F (-26°C)
- Refrigerant: R32
- Air Purification: Improved nanoe™ X
- Wi-Fi: Built-in
- App Compatibility: Panasonic Comfort Cloud
- Control: Wireless Remote Control
- Certification: ENERGY STAR® Cold Climate Certified
