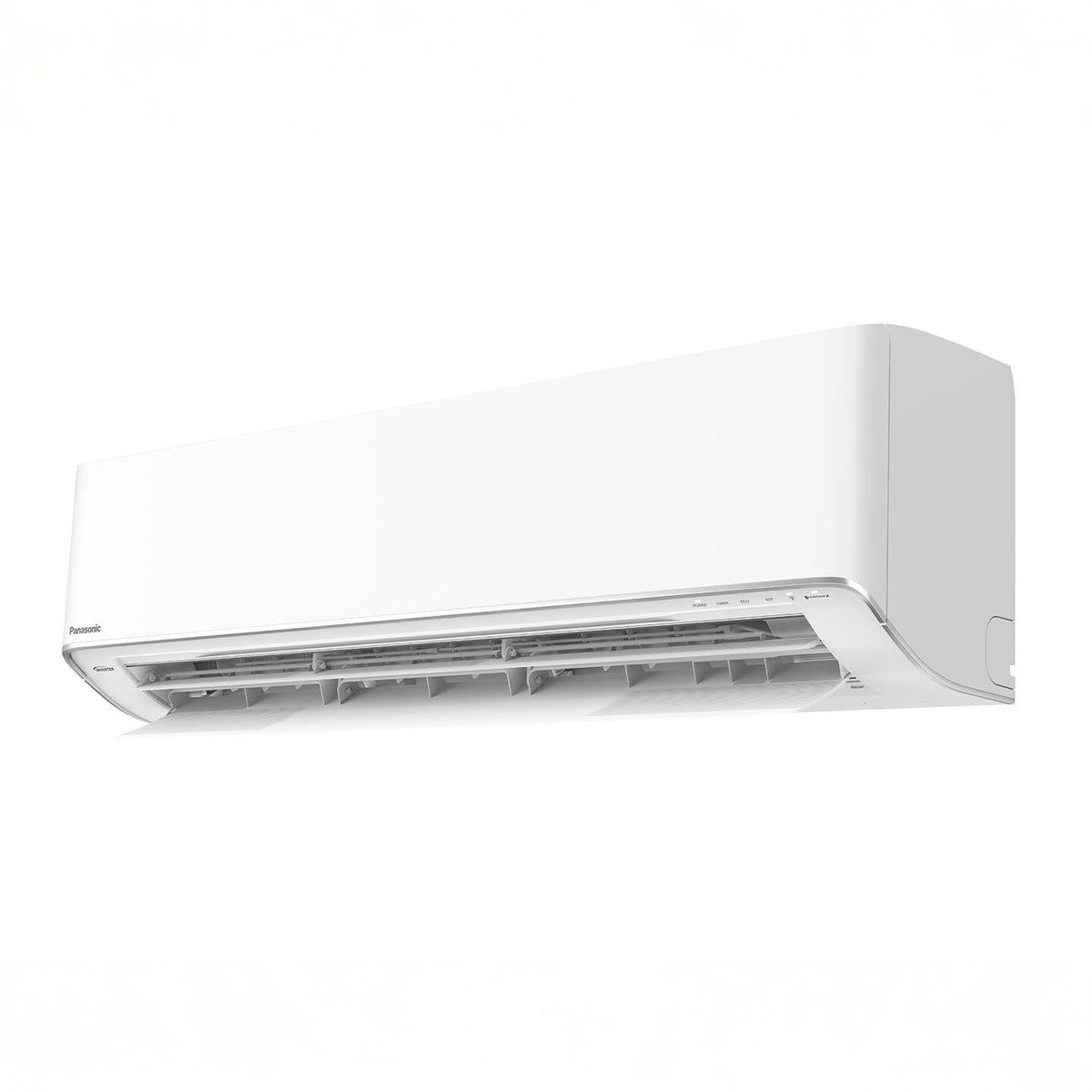

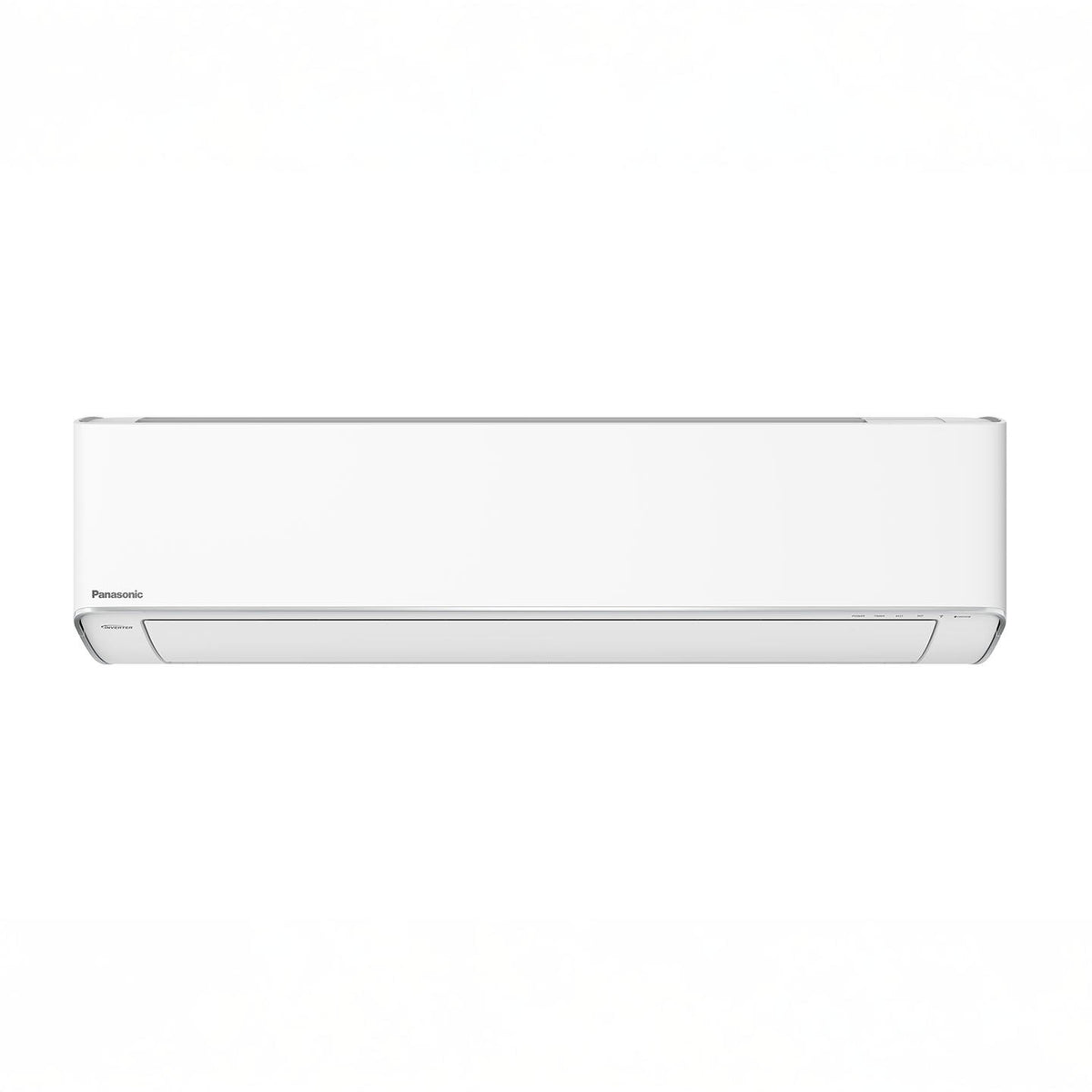

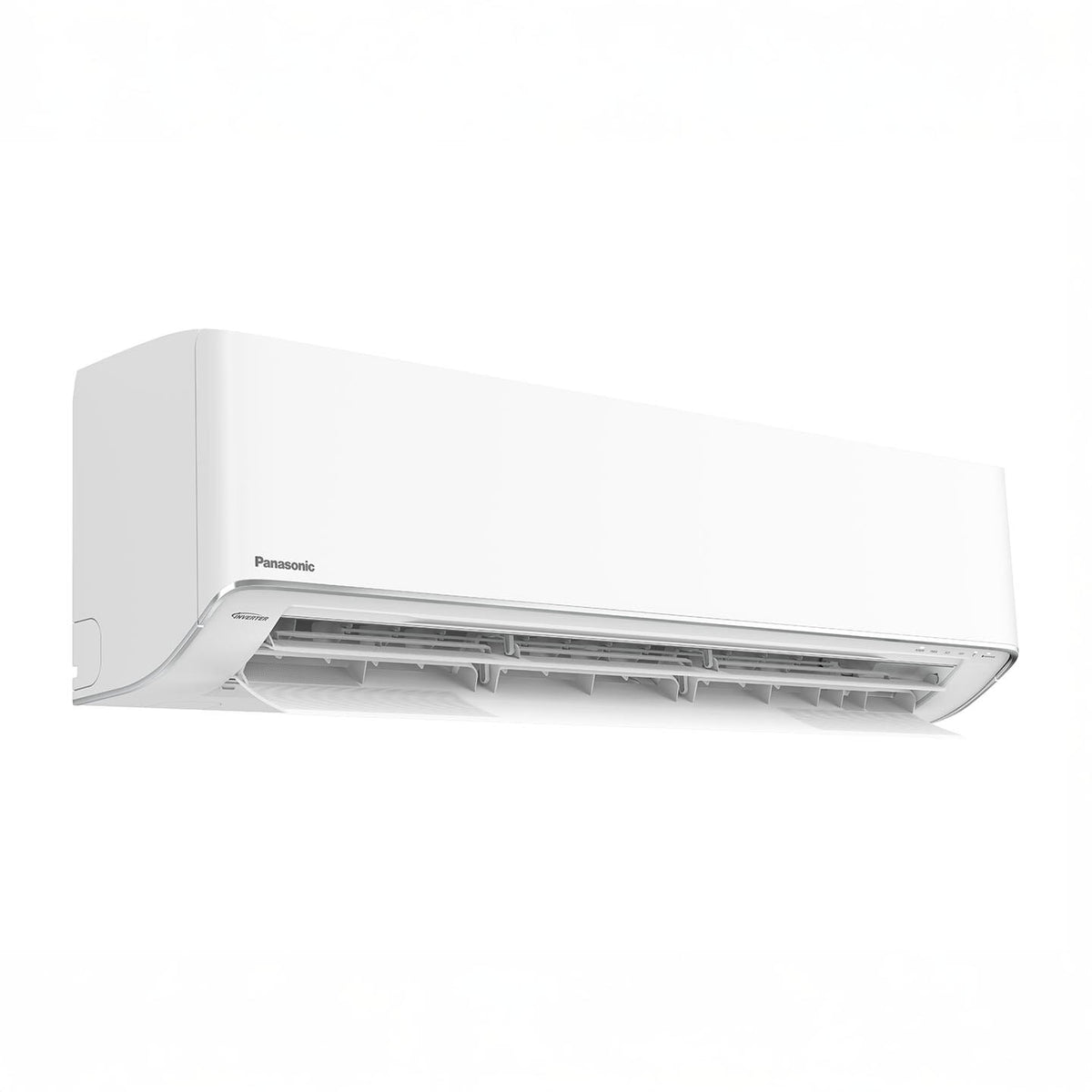

Panasonic CS-XZ24AKUAW ClimaPure XZ Series 24,000 BTU Ductless Mini Split Indoor Unit

Product Description

The Panasonic ClimaPure XZ Series CS-XZ24AKUAW is a 24,000 BTU indoor unit designed for ductless heating and cooling applications. It is part of the XZ24AKUA single-split system and pairs with the CU-XZ24AKUAC outdoor unit. The system combines zoned temperature control with advanced comfort and indoor air purification technologies.

The CS-XZ24AKUAW features Panasonic's improved nanoe™ X air and surface purification technology, AI ECO intelligent energy-saving control, built-in Wi-Fi connectivity, and compatibility with the Comfort Cloud app. Designed for cold-climate operation, the system provides heating operation down to -15°F (-26°C).

Key Features

• 24,000 BTU Cooling Capacity: Provides 24,000 BTU/h rated cooling capacity with an operating range of 6,100 to 27,200 BTU/h.
• 28,800 BTU Heating Capacity: Delivers 28,800 BTU/h rated heating capacity with an operating range of 6,800 to 37,200 BTU/h.
• nanoe™ X Technology: Built-in air and surface purification technology designed to help create a more comfortable indoor environment.
• AI ECO: Intelligent control technology that balances energy savings and comfort.
• Cold Climate Heating: Designed for heating operation in outdoor temperatures down to -15°F (-26°C).
• Built-in Wi-Fi: Provides convenient connectivity and enables control through the Panasonic Comfort Cloud app.
• Wireless Remote Control: Includes a modern wireless remote for convenient operation.
• Fireplace Function: Fireplace mode helps circulate warm air throughout the room.
• Base Pan Heater: Included for cold-climate heating operation.
• ENERGY STAR® Certified: XZ24AKUA is ENERGY STAR® Cold Climate Certified.
• R32 Refrigerant: Uses R32 refrigerant with zero ozone depletion potential.

Specifications

• Model: CS-XZ24AKUAW
• System: Panasonic ClimaPure XZ Series Single Split
• System SKU: XZ24AKUA
• Outdoor Unit: CU-XZ24AKUAC
• Cooling Capacity: 24,000 BTU/h
• Cooling Capacity Range: 6,100–27,200 BTU/h
• Cooling Capacity: 7.02 kW
• Heating Capacity: 28,800 BTU/h
• Heating Capacity Range: 6,800–37,200 BTU/h
• Heating Capacity: 8.46 kW
• Moisture Removal: 7.6 pints/hour
• Indoor Airflow – Cooling: 685 CFM
• Indoor Airflow – Heating: 695 CFM
• SEER2: 20.50
• EER2: 11.75
• HSPF2 Region 4: 11.00
• HSPF2 Region 5: 8.30
• Power Supply: 208/230V, Single Phase, 60Hz
• Cooling Power Input: 2,040 W rated
• Heating Power Input: 2,500 W rated
• Refrigerant: R32

Indoor Unit Dimensions & Weight

• Height: 11-5/8 in (295 mm)
• Width: 40-31/32 in (1,040 mm)
• Depth: 9-5/8 in (244 mm)
• Indoor Unit Weight: 31 lb (14 kg)

Performance Specifications

• Cooling Capacity – Min/Rated/Max: 6,100 / 24,000 / 27,200 BTU/h
• Cooling Power Input – Min/Rated/Max: 0.44 / 2.04 / 2.45 kW
• Heating Capacity – Min/Rated/Max: 6,800 / 28,800 / 37,200 BTU/h
• Heating Power Input – Min/Rated/Max: 0.40 / 2.50 / 3.00 kW
• Heating Capacity at 17°F: 25,200 BTU/h
• Maximum Heating Capacity at 5°F: 20,400 BTU/h
• COP: 3.38
• Compressor: Inverter-driven hermetic rotary
• Compressor Motor: Brushless, 6-pole
• Compressor Output: 1,500 W

Noise Levels

• Indoor Cooling Noise: 49 / 40 / 34 dB-A (High / Low / Quiet-Low)
• Indoor Heating Noise: 49 / 40 / 34 dB-A (High / Low / Quiet-Low)
• Indoor Power Level: 65 dB
• Outdoor Cooling Noise: 53 dB-A
• Outdoor Heating Noise: 54 dB-A

Electrical Specifications

• Power Supply: 208–230V / 1 Phase / 60Hz
• Maximum Current: 13.6 A
• Maximum Input Power: 3,130 W
• Starting Current: 12.30 A
• Cooling Current: 10.00 A at 208V / 9.10 A at 230V
• Heating Current: 12.30 A at 208V / 11.10 A at 230V

Technology & Connectivity

• nanoe™ X air and surface purification
• AI ECO intelligent energy-saving control
• Built-in Wi-Fi connectivity
• Panasonic Comfort Cloud app compatibility
• Wireless remote control
• Fireplace function
• Base pan heater
• Cold-climate heating operation down to -15°F (-26°C)

System Compatibility

• Indoor Unit: CS-XZ24AKUAW
• Compatible Outdoor Unit: CU-XZ24AKUAC
• System: XZ24AKUA
• Application: Single-zone ductless heating and air conditioning
