Product Description

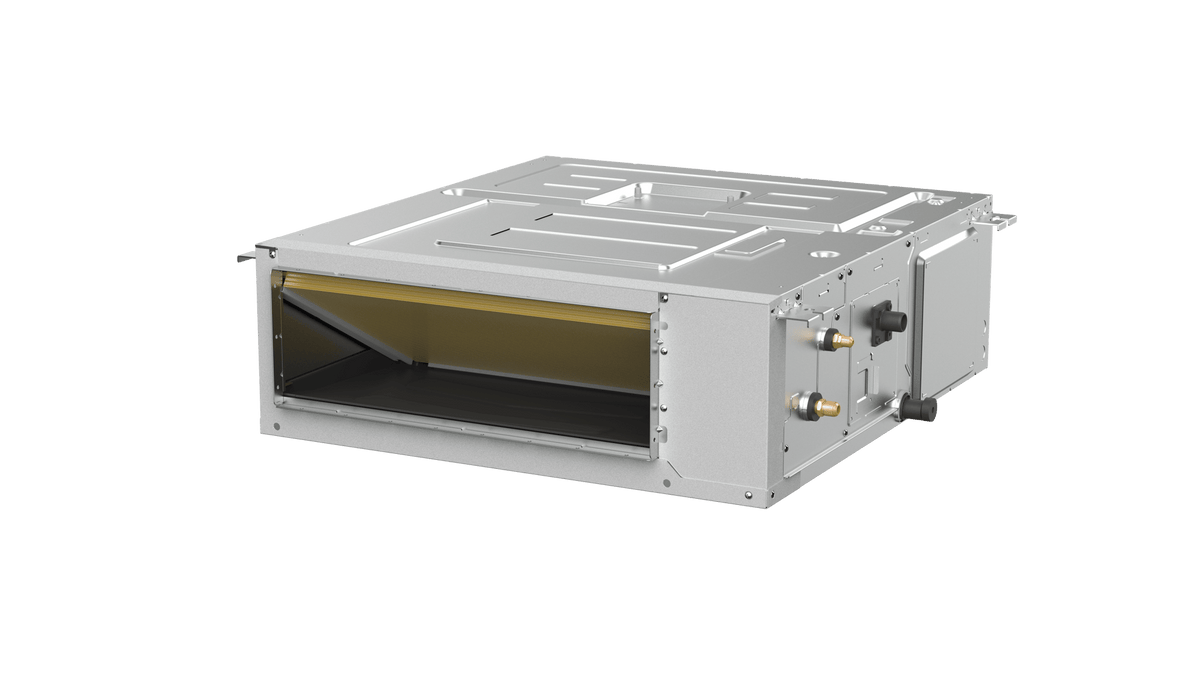

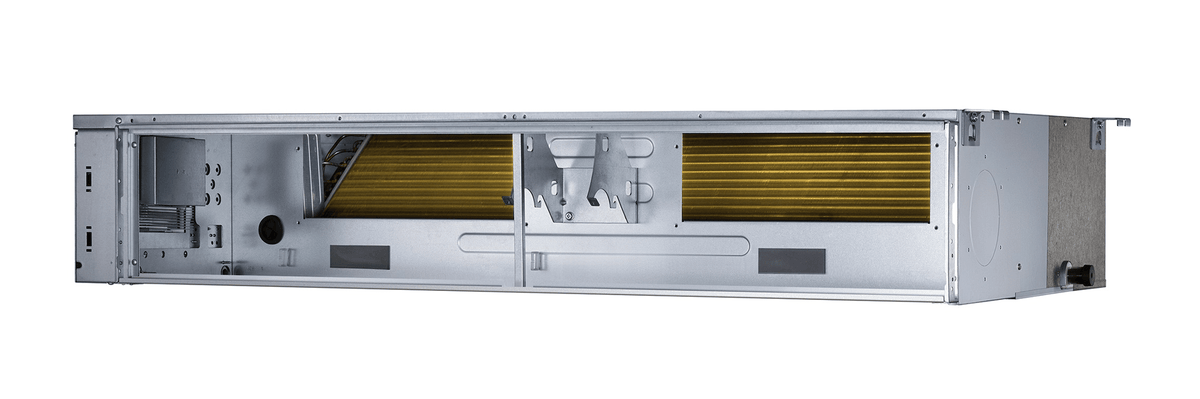

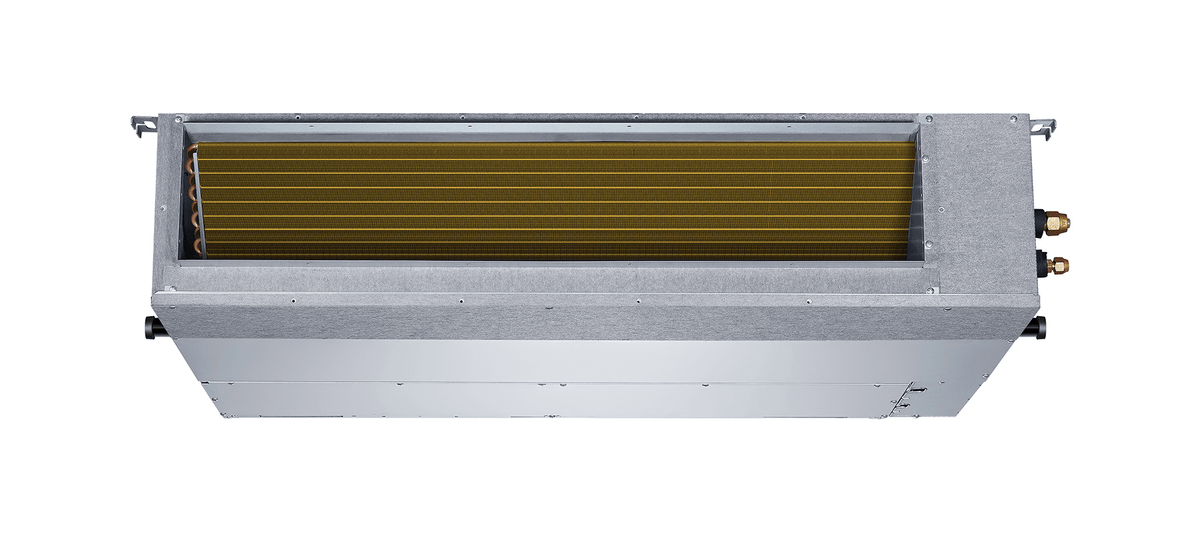

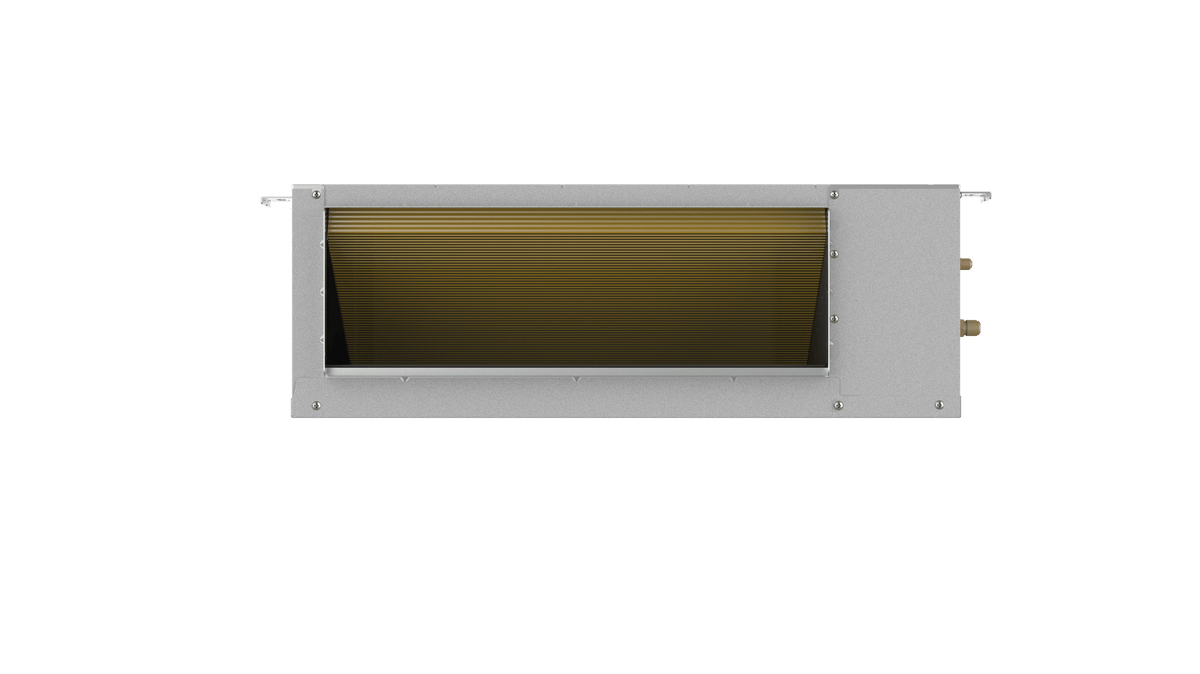

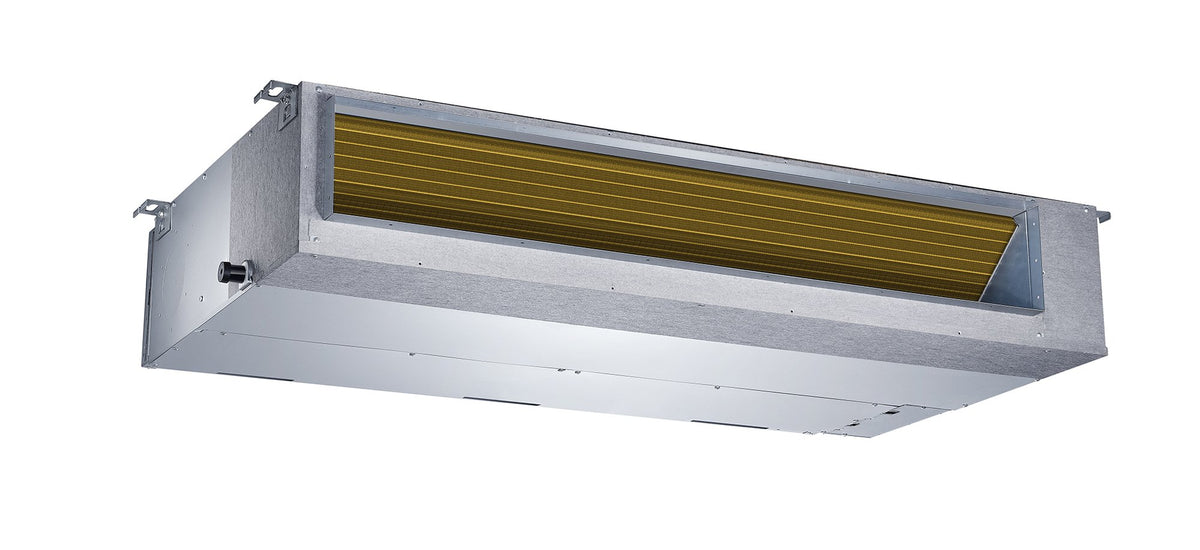

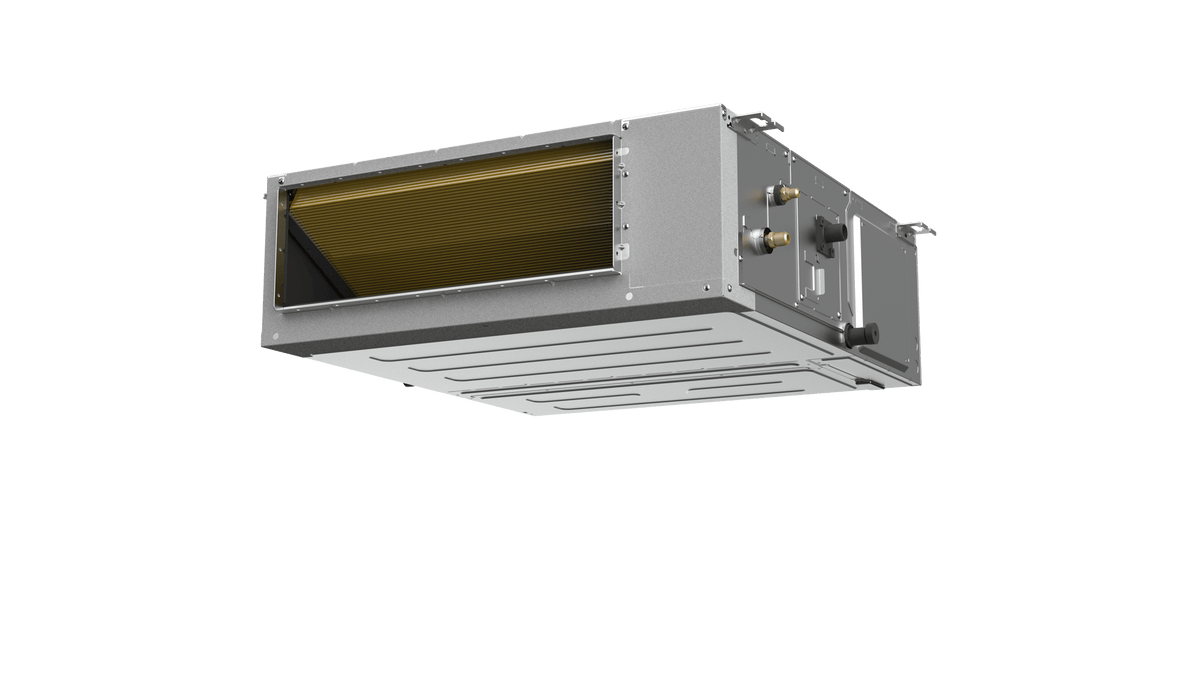

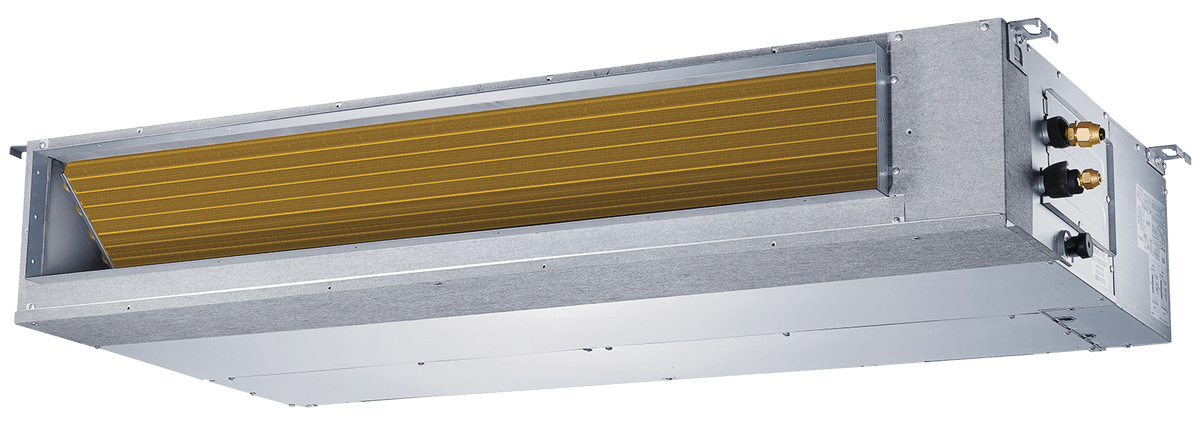

The Panasonic CS-YM9CD2UW Project Series Low-Profile Ducted indoor unit is designed for concealed HVAC installations where ceiling space is limited. This compact 9,000 BTU ducted heat pump system provides efficient heating and cooling while maintaining a clean, unobtrusive appearance. It is suitable for retrofit, multi-family and light commercial applications and supports both horizontal and vertical installation.
The system pairs with the Panasonic CU-YM9CBUC inverter heat pump condenser and uses R454B refrigerant. With cold-climate heating operation down to -13°F (-25°C), ENERGY STAR Cold Climate certification, built-in condensate management and room freeze protection, the CS-YM9CD2UW is designed for year-round comfort in a variety of applications.
Key Features
- 9,000 BTU Cooling Capacity: Provides 9,000 BTU/h of rated cooling capacity with an operating range of 3,100 to 11,900 BTU/h.
- 10,000 BTU Heating Capacity: Provides 10,000 BTU/h of rated heating capacity with a range of 3,600 to 14,000 BTU/h.
- Low-Profile Concealed Design: Compact indoor air handler is ideal for tight ceiling spaces and applications requiring a clean architectural appearance.
- Horizontal & Vertical Installation: Designed to accommodate both horizontal and vertical installation configurations.
- Built-In Condensate Pump: Integrated condensate management simplifies installation in concealed ducted applications.
- Room Freeze Protection: Protection activates at approximately 46°F (8°C) to help prevent excessively low room temperatures.
- Inverter Heat Pump Technology: Variable-capacity inverter operation provides efficient heating and cooling performance.
- Cold Climate Heating: Designed for heating operation down to -13°F (-25°C).
- R454B Refrigerant: Uses R454B refrigerant with zero ozone-depletion potential.
- ENERGY STAR Cold Climate Certified: Designed to meet ENERGY STAR cold-climate performance requirements.
- Remote Controls Included: Wired and wireless remote control options are included for convenient operation.
- Base Pan Heater: Included for improved outdoor-unit performance in cold-weather conditions.
Technical Specifications
- Indoor Unit Model: CS-YM9CD2UW
- Outdoor Unit Model: CU-YM9CBUC
- System Type: Low-Profile Ducted Inverter Heat Pump
- Cooling Capacity: 9,000 BTU/h (3,100–11,900 BTU/h)
- Cooling Capacity: 2.64 kW
- Heating Capacity: 10,000 BTU/h (3,600–14,000 BTU/h)
- Heating Capacity: 2.93 kW
- Moisture Removal: 1.44 pints/hour (0.68 L/h)
- Outdoor Airflow: 324 CFM at Turbo
- Static Pressure Range: 0–0.4 in. w.g.
- SEER2: 19.5
- EER2: 12.8
- HSPF2 Region 4: 11.0
- HSPF2 Region 5: 8.8
- Power Supply: 208/230V, Single Phase, 60Hz
- Cooling Power Input: 703 W
- Heating Power Input: 800 W
- Refrigerant: R454B
- Cold Climate Heating Operation: Down to -13°F (-25°C)
Indoor Unit Dimensions & Weight
- Dimensions (H x W x D): 7-7/8 x 27-9/16 x 19-15/16 inches
- Dimensions (H x W x D): 200 x 700 x 506 mm
- Indoor Unit Weight: 39.5 lb (18 kg)
Outdoor Unit Specifications
- Outdoor Unit: CU-YM9CBUC
- Outdoor Dimensions (H x W x D): 21-7/8 x 30-1/8 x 11-7/8 inches
- Outdoor Dimensions (H x W x D): 555 x 765 x 303 mm
- Outdoor Unit Weight: 62 lb (28 kg)
- Base Pan Heater: Included
Applications
- Residential concealed ducted HVAC systems
- Retrofit installations
- Multi-family housing
- Light commercial applications
- Apartments and compact spaces
- Installations requiring concealed HVAC equipment
- Applications with limited ceiling space
System Compatibility
The CS-YM9CD2UW indoor unit is paired with the Panasonic CU-YM9CBUC outdoor inverter heat pump condenser. The CU-YM9CBUC is also used with other compatible Project Series indoor configurations, so system performance ratings should be referenced for the specific indoor/outdoor combination.
