Product Description

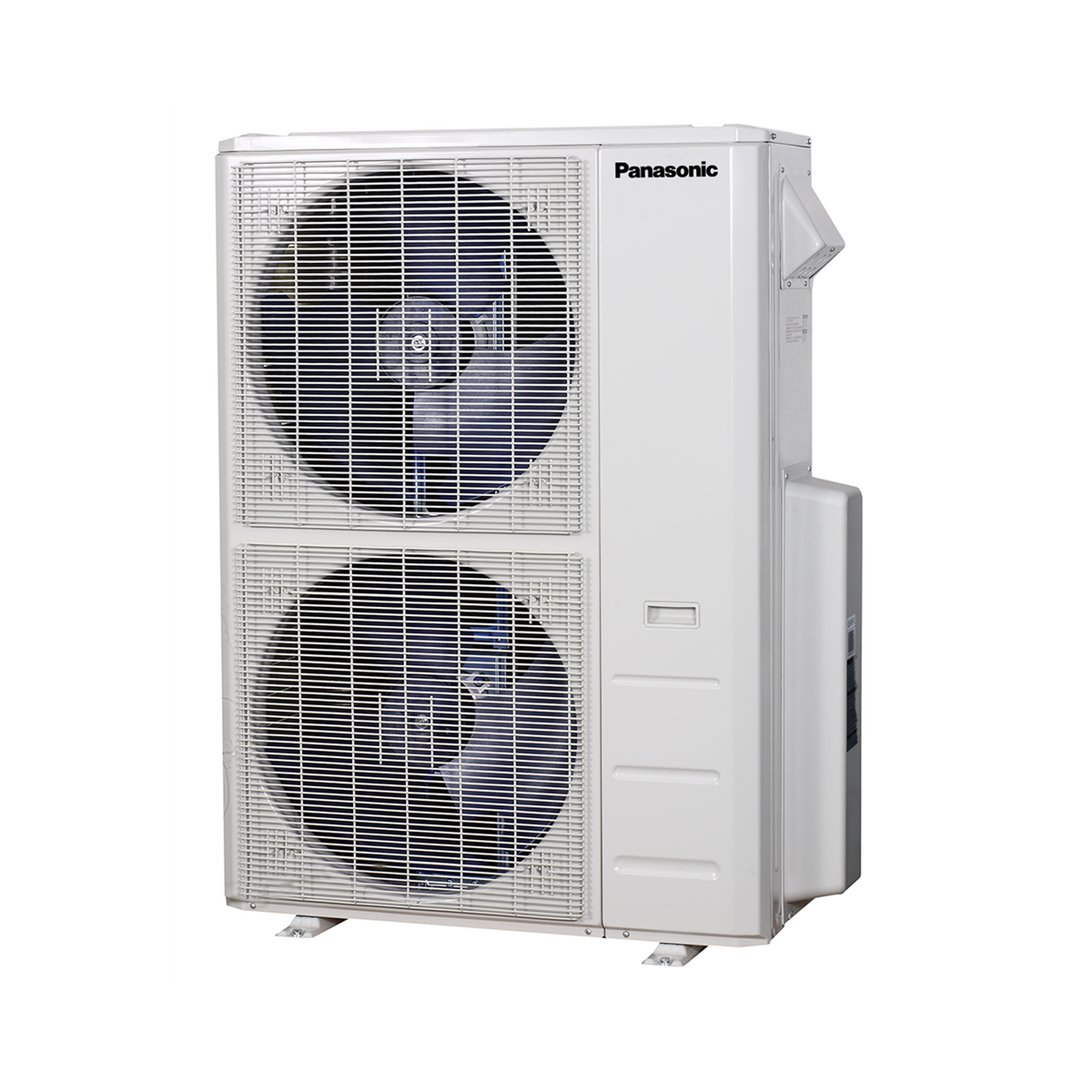

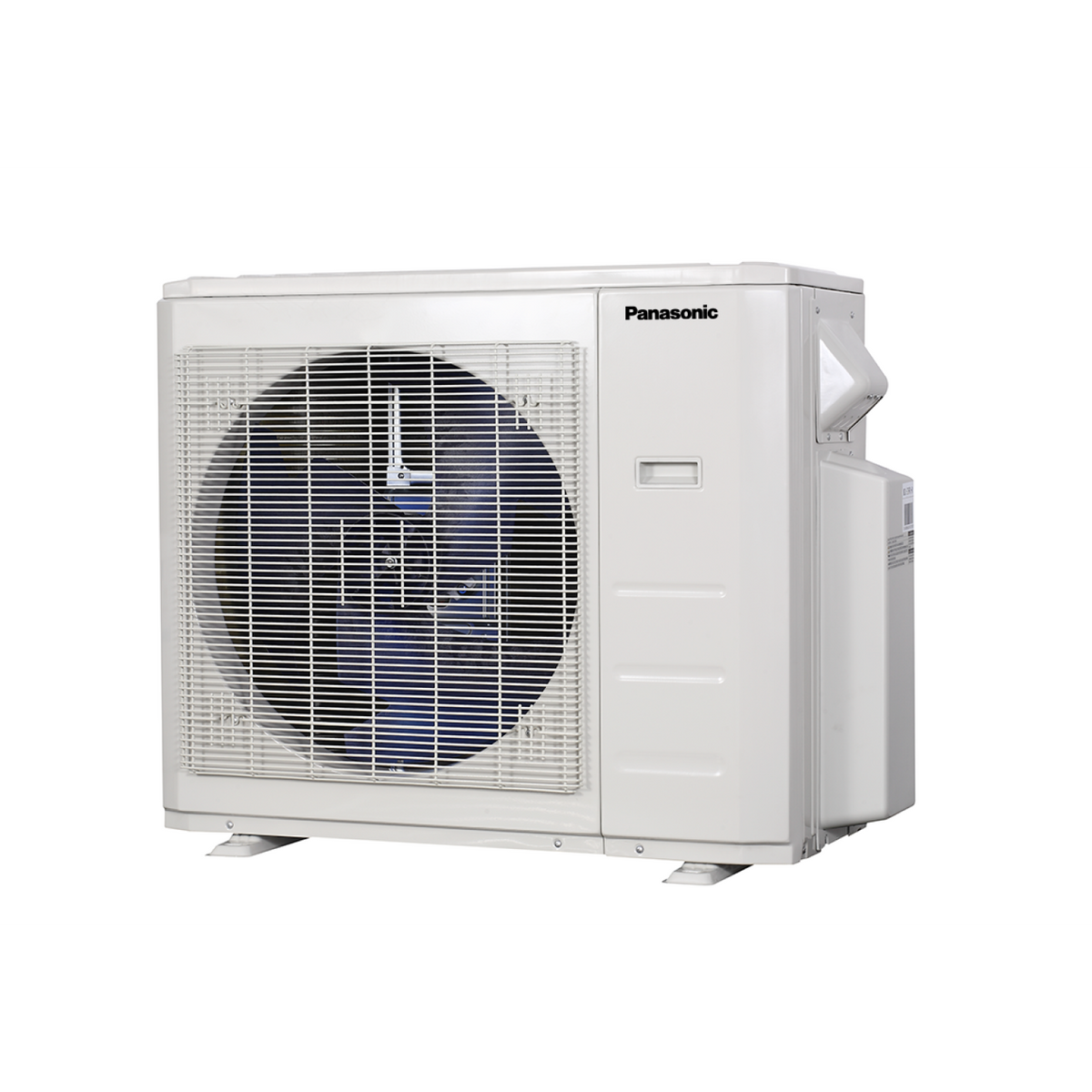

The Panasonic CU-4YM27CBUC is a 4-zone Project Series multi-zone outdoor inverter heat pump condenser designed to provide efficient heating and cooling for residential, multi-family and light commercial applications. The system can connect with multiple compatible Project Series indoor unit types, including high-wall, floor console, 4-way cassette and low-profile ducted units, allowing different indoor configurations to be combined with a single outdoor condenser.
Key Features
- 4-Zone Multi-Zone System: Designed to connect with up to four compatible Project Series indoor units.
- 27,000 BTU Class: Provides 26,000 BTU/h rated cooling capacity with a 7,200–32,000 BTU/h operating range.
- Heating Capacity: Provides 27,000 BTU/h rated heating capacity with an 8,400–29,200 BTU/h range.
- Flexible Indoor Unit Compatibility: Supports compatible Project Series high-wall, floor console, cassette and slim/low-profile ducted indoor units.
- Inverter Heat Pump Condenser: Variable-capacity inverter technology helps provide efficient heating and cooling operation.
- Cold Climate Heating: Designed for heating operation down to -13°F (-25°C).
- Base Pan Heater: Includes a base pan heater for cold-weather operation.
- R454B Refrigerant: Uses R454B refrigerant for a modern lower-GWP system design.
- Quiet Operation: Designed for quieter outdoor operation in residential and light commercial applications.
- ENERGY STAR Cold Climate: Part of the ENERGY STAR Cold Climate certified Project Series platform.
- Single or Multi-Zone Flexibility: Project Series outdoor units can be configured with compatible indoor units according to project requirements.
Specifications
- Brand: Panasonic
- Series: Project Series
- Model: CU-4YM27CBUC
- Unit Type: Multi-Zone Outdoor Heat Pump Condenser
- Zone Capacity: 4-Zone
- Rated Cooling Capacity: 26,000 BTU/h (7.62 kW)
- Cooling Capacity Range: 7,200–32,000 BTU/h
- Rated Heating Capacity: 27,000 BTU/h (7.91 kW)
- Heating Capacity Range: 8,400–29,200 BTU/h
- Outdoor Airflow: 2,131 CFM
- SEER2: 23.0
- EER2: 12.2
- HSPF2 Region 4 / Region 5: 9.5 / 7.1
- Power Supply: 208/230V, Single Phase, 60Hz
- Cooling Power Input: 2,130 W
- Heating Power Input: 2,198 W
- Refrigerant: R454B
- Cold Climate Heating: Down to -13°F (-25°C)
- Outdoor Dimensions (H x W x D): 31-7/8 x 37-1/4 x 16-1/8 in.
- Outdoor Dimensions (H x W x D): 810 x 946 x 410 mm
- Outdoor Unit Weight: 139 lb (63 kg)
Compatible Indoor Units
- High Wall: Compatible Project Series CKUW models
- 4-Way Cassette: Compatible Project Series CB4UW / CL4UW models where applicable
- Floor Console: Compatible Project Series CFUW models
- Low-Profile Ducted: Compatible Project Series CD2UW / CD1UW models
Applications
- Residential multi-zone heating and cooling
- Multi-family housing
- Retrofit HVAC projects
- Light commercial applications
- Homes requiring room-by-room temperature control
- Projects combining different indoor unit styles
