Product Description

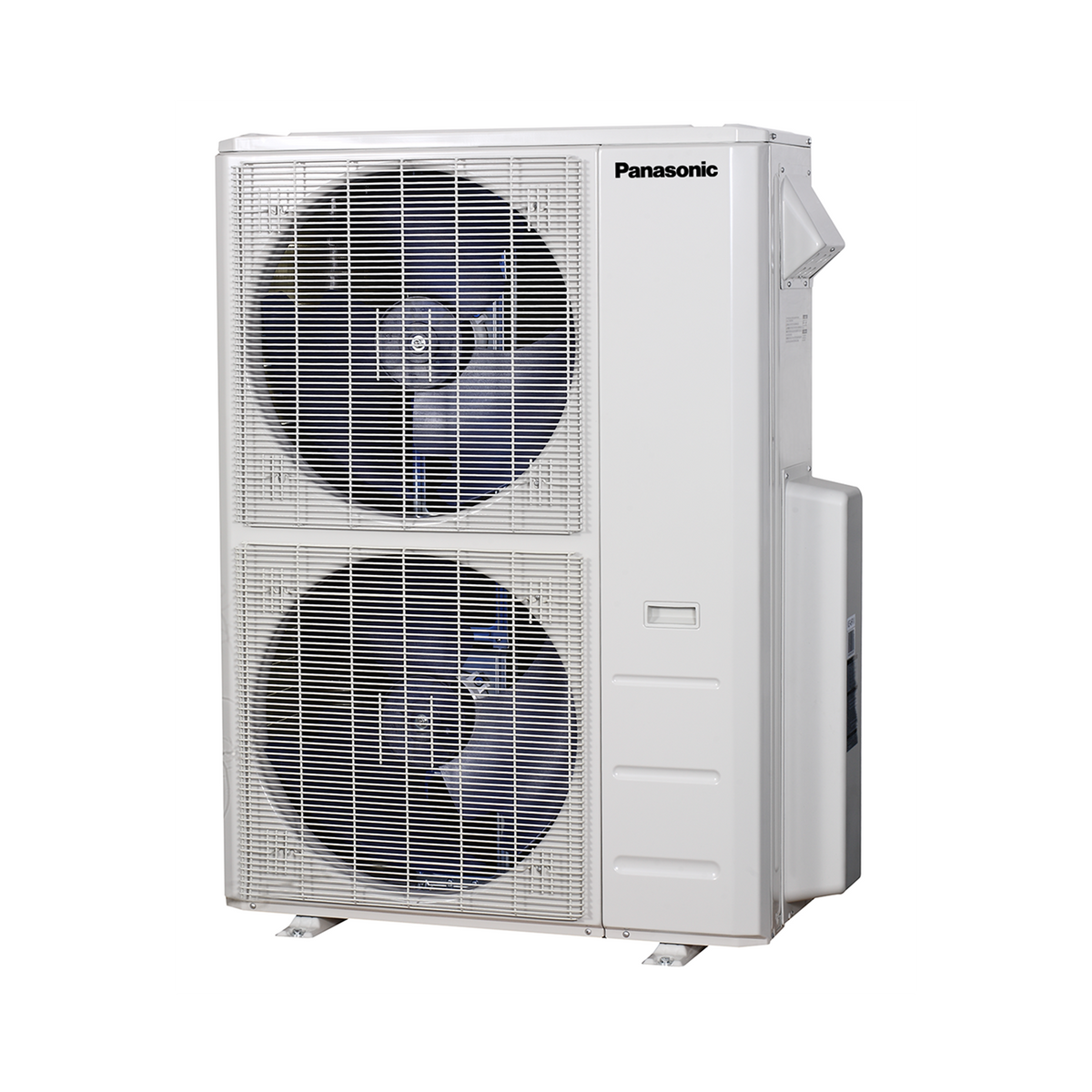

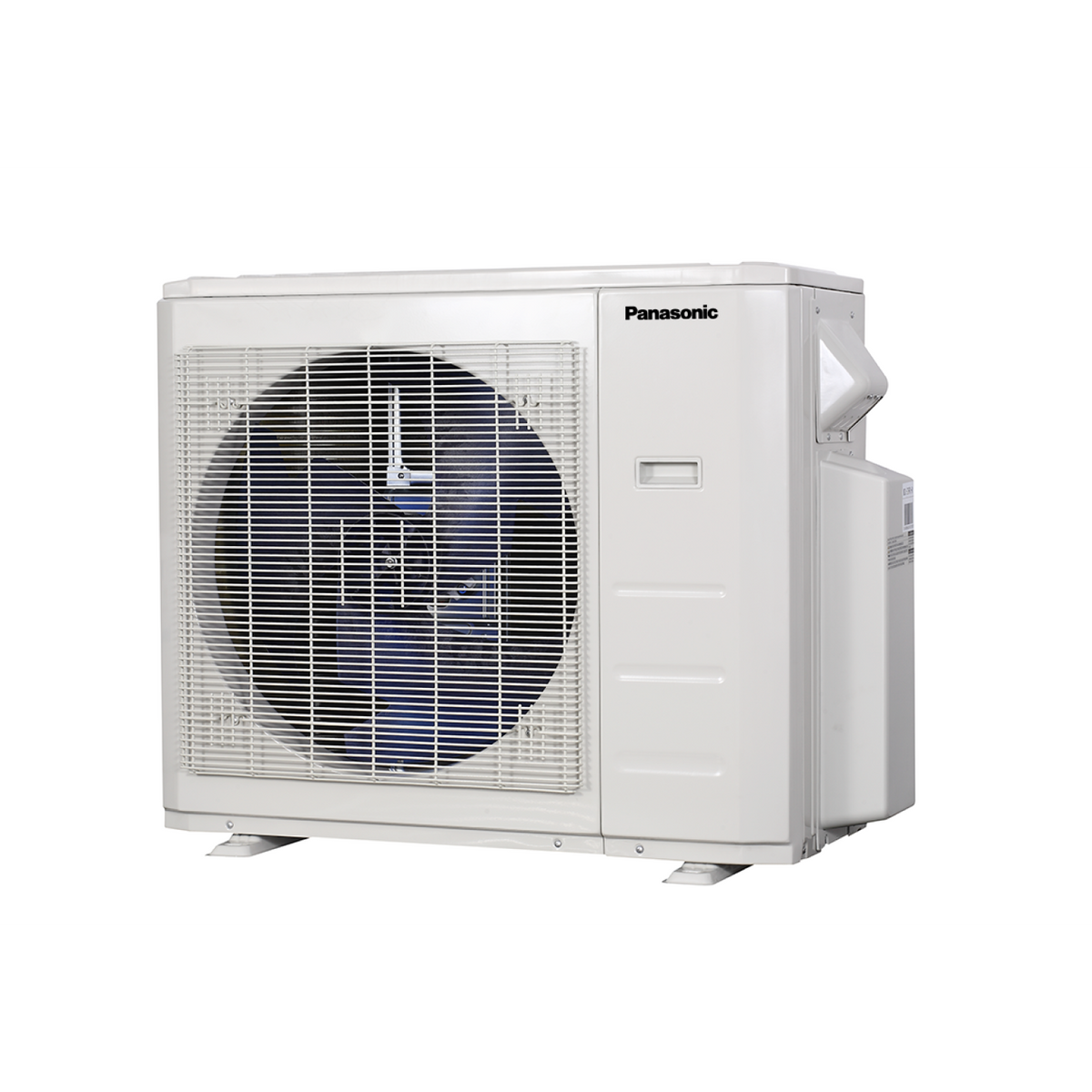

The Panasonic CU-5YM36CBUC is a 36,000 BTU Project Series multi-zone outdoor inverter heat pump condenser designed to provide heating and cooling for systems with up to five indoor units. It offers flexible zoning for residential, retrofit, multi-family and light commercial applications and can be paired with compatible Project Series high-wall, floor console, 4-way cassette and slim duct indoor units. The system uses R454B refrigerant and supports cold-climate heating operation down to -13°F (-25°C).
Key Features
- 36,000 BTU Multi-Zone Capacity: Provides 35,000 BTU/h rated cooling capacity with a 9,000–40,000 BTU/h operating range.
- Strong Heating Capacity: Provides 37,000 BTU/h rated heating capacity with a 10,000–40,000 BTU/h range.
- 5-Zone System: Designed to support up to five compatible Project Series indoor units.
- Flexible Indoor Unit Compatibility: Works with Project Series high-wall, floor console, 4-way cassette and slim duct indoor units.
- Inverter Heat Pump Condenser: Variable-capacity inverter technology helps provide efficient heating and cooling operation.
- Cold Climate Heating: Designed for heating operation down to -13°F (-25°C).
- R454B Refrigerant: Uses R454B refrigerant for a modern lower-GWP system design.
- Base Pan Heater: Built-in base pan heater supports reliable cold-weather operation.
- Quiet Operation: Designed for reduced outdoor operating noise.
- ENERGY STAR Cold Climate: The Project Series outdoor unit is ENERGY STAR Cold Climate certified.
- Flexible Applications: Suitable for retrofit, multi-family, residential and light commercial projects.
Specifications
- Brand: Panasonic
- Series: Project Series
- Model: CU-5YM36CBUC
- Unit Type: Multi-Zone Outdoor Heat Pump Condenser
- Zone Capacity: 5-Zone
- Rated Cooling Capacity: 35,000 BTU/h (10.26 kW)
- Cooling Capacity Range: 9,000–40,000 BTU/h
- Rated Heating Capacity: 37,000 BTU/h (10.84 kW)
- Heating Capacity Range: 10,000–40,000 BTU/h
- Outdoor Airflow: 2,148 CFM
- SEER2: 23.1
- EER2: 12.0
- HSPF2 Region 4 / Region 5: 10.0 / 7.5
- Power Supply: 208/230V, Single Phase, 60Hz
- Cooling Power Input: 2,915 W
- Heating Power Input: 3,098 W
- Refrigerant: R454B
- Cold Climate Heating Operation: Down to -13°F (-25°C)
- Outdoor Dimensions (H x W x D): 31-7/8 x 37-1/4 x 16-1/8 in.
- Outdoor Dimensions (H x W x D): 810 x 946 x 410 mm
- Outdoor Unit Weight: 169 lb (77 kg)
Compatible Indoor Units
- High-Wall: Project Series CKUW indoor units
- 4-Way Cassette: Project Series CB4UW / CL4UW indoor units
- Floor Console: Project Series CFUW indoor units
- Slim Duct: Project Series CD2UW / CD1UW indoor units
- Maximum Indoor Units: Up to 5 compatible indoor units
Applications
- Residential multi-zone heating and cooling
- Retrofit HVAC projects
- Multi-family housing
- Light commercial applications
- Homes requiring multiple independently conditioned zones
- Projects combining different indoor unit styles
