Product Description

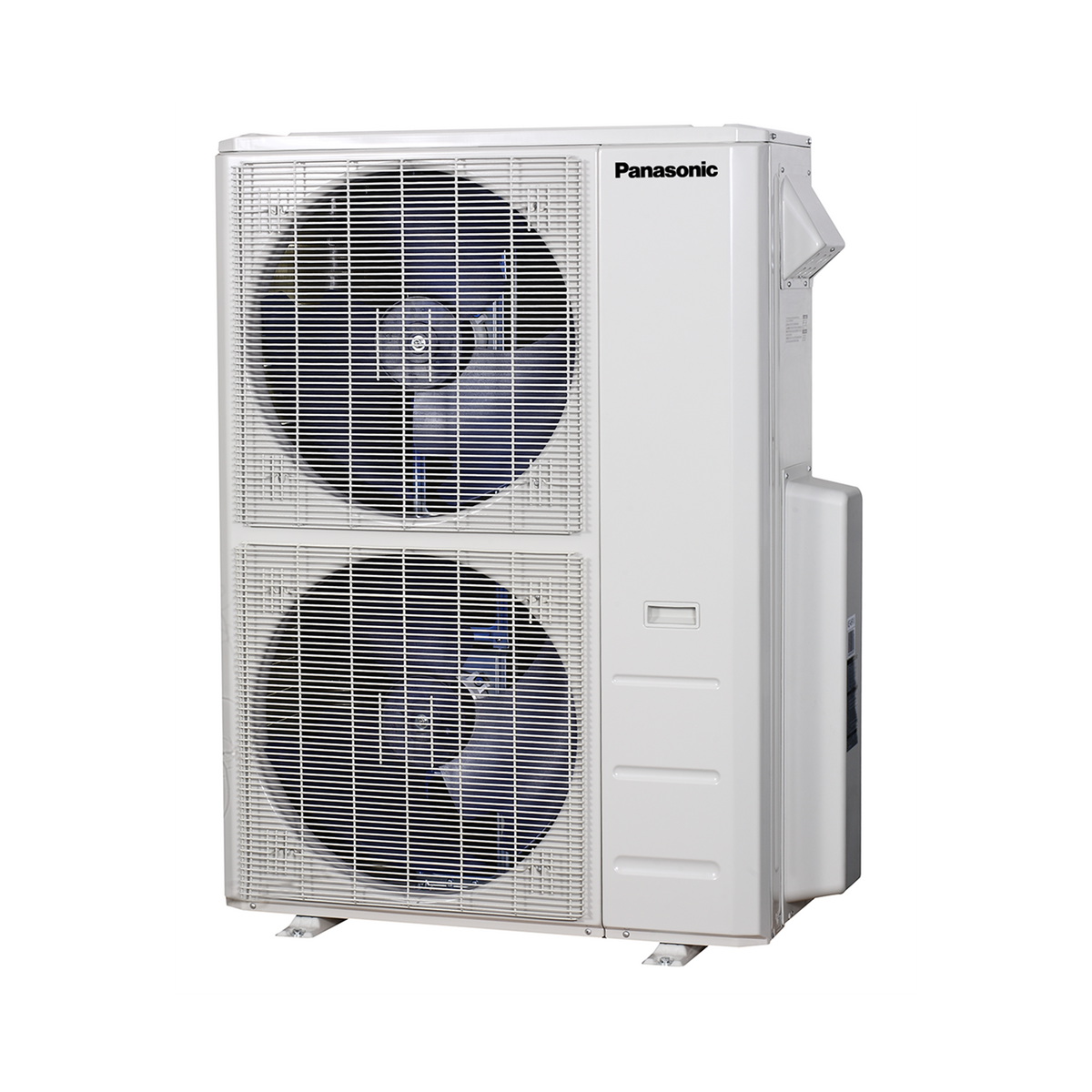

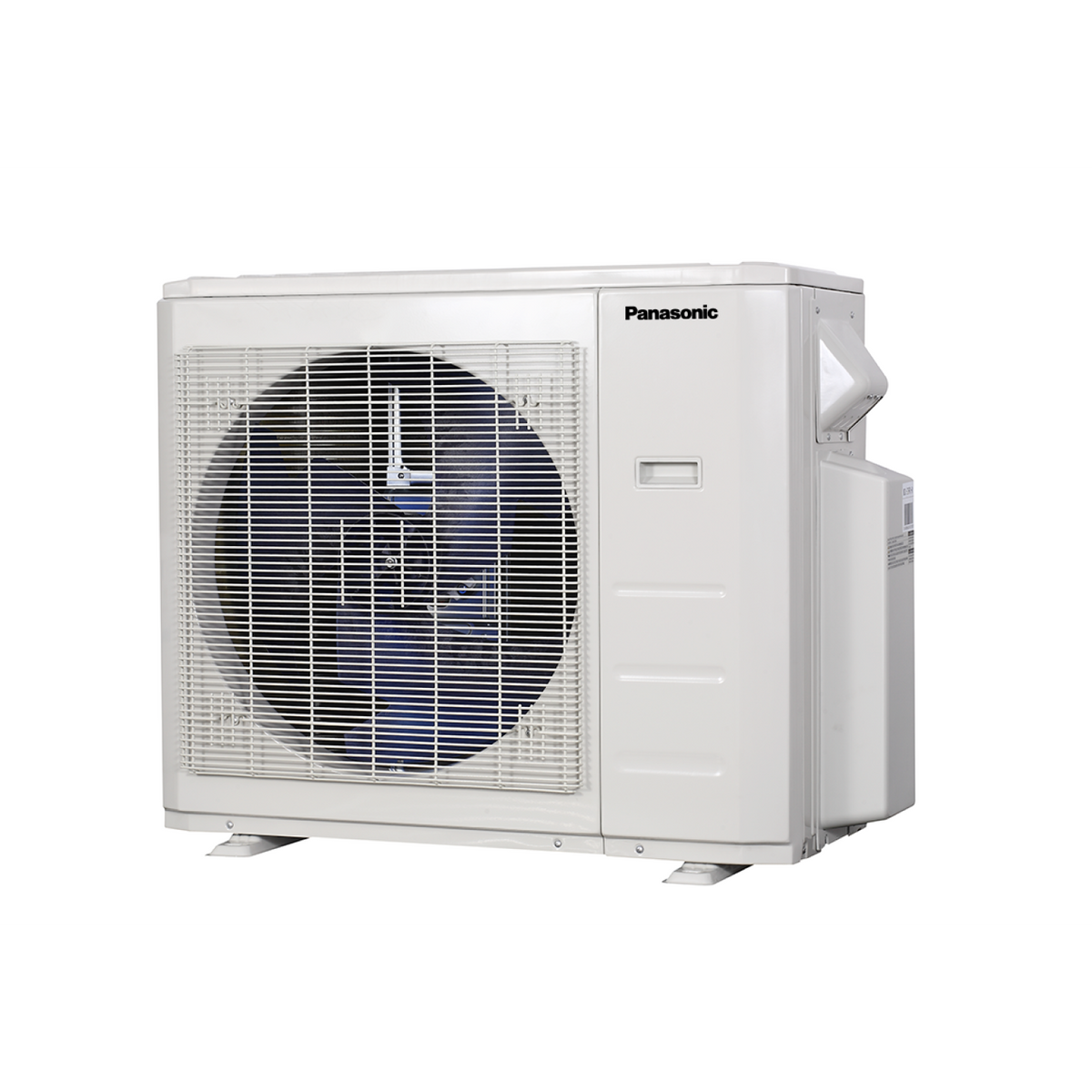

The Panasonic CU-6YM48CBUC is a Project Series 6-zone multi-zone outdoor inverter heat pump condenser designed to provide heating and cooling for multiple indoor units from a single outdoor system. With a rated cooling capacity of 45,000 BTU/h and rated heating capacity of 48,000 BTU/h, it can connect with compatible Panasonic Project Series indoor units including high-wall, floor console, 4-way cassette and slim duct configurations. The system is designed for retrofit, multi-family and light commercial applications and uses R454B refrigerant for a modern lower-GWP HVAC solution.
Key Features
- 6-Zone Outdoor Unit: Designed to connect with multiple compatible Project Series indoor units for customized multi-zone heating and cooling.
- 45,000 BTU Cooling Capacity: Provides 45,000 BTU/h rated cooling capacity with an operating range of 12,000–49,000 BTU/h.
- 48,000 BTU Heating Capacity: Provides 48,000 BTU/h rated heating capacity with a range of 13,000–55,000 BTU/h.
- Multi-Zone Flexibility: Supports up to six compatible indoor units depending on the system configuration.
- Inverter Heat Pump Condenser: Variable-capacity inverter technology helps provide efficient heating and cooling operation.
- Wide Indoor Unit Compatibility: Compatible with Project Series high-wall, floor console, 4-way cassette and slim duct indoor units.
- Cold Climate Heating: Designed for heating operation down to -13°F (-25°C).
- Base Pan Heater: Includes a base pan heater to support cold-weather operation.
- R454B Refrigerant: Uses R454B refrigerant for a lower-GWP system design.
- Quiet Operation: Designed for reduced outdoor operating noise.
- ENERGY STAR Cold Climate: Part of Panasonic's ENERGY STAR Cold Climate certified Project Series systems.
- Flexible Applications: Suitable for retrofit, multi-family and light commercial HVAC applications.
Specifications
- Brand: Panasonic
- Series: Project Series
- Model: CU-6YM48CBUC
- Unit Type: Multi-Zone Outdoor Inverter Heat Pump Condenser
- Zone Capacity: 6-Zone
- Rated Cooling Capacity: 45,000 BTU/h (13.19 kW)
- Cooling Capacity Range: 12,000–49,000 BTU/h
- Rated Heating Capacity: 48,000 BTU/h (14.07 kW)
- Heating Capacity Range: 13,000–55,000 BTU/h
- Outdoor Airflow: 4,503 CFM
- SEER2: 21.3
- EER2: 11.7
- HSPF2 Region 4 / Region 5: 10.0 / 7.7
- Cooling Power Input: 3,850 W
- Heating Power Input: 3,908 W
- Power Supply: 208/230V, Single Phase, 60Hz
- Refrigerant: R454B
- Outdoor Dimensions (H x W x D): 52-1/2 x 37-1/2 x 16-5/16 in.
- Outdoor Dimensions (H x W x D): 1,333 x 952 x 415 mm
- Outdoor Unit Weight: 222 lb (101 kg)
Compatible Indoor Units
- High-Wall: Project Series CKUW models
- 4-Way Cassette: Project Series CB4UW / CL4UW models
- Floor Console: Project Series CFUW models
- Slim Duct: Project Series CD2UW / CD1UW models
Applications
- Multi-zone residential HVAC systems
- Multi-family housing
- Retrofit HVAC projects
- Light commercial buildings
- Homes requiring independent temperature control in multiple rooms
- Systems combining high-wall, cassette, floor console and ducted indoor units
