Product Description

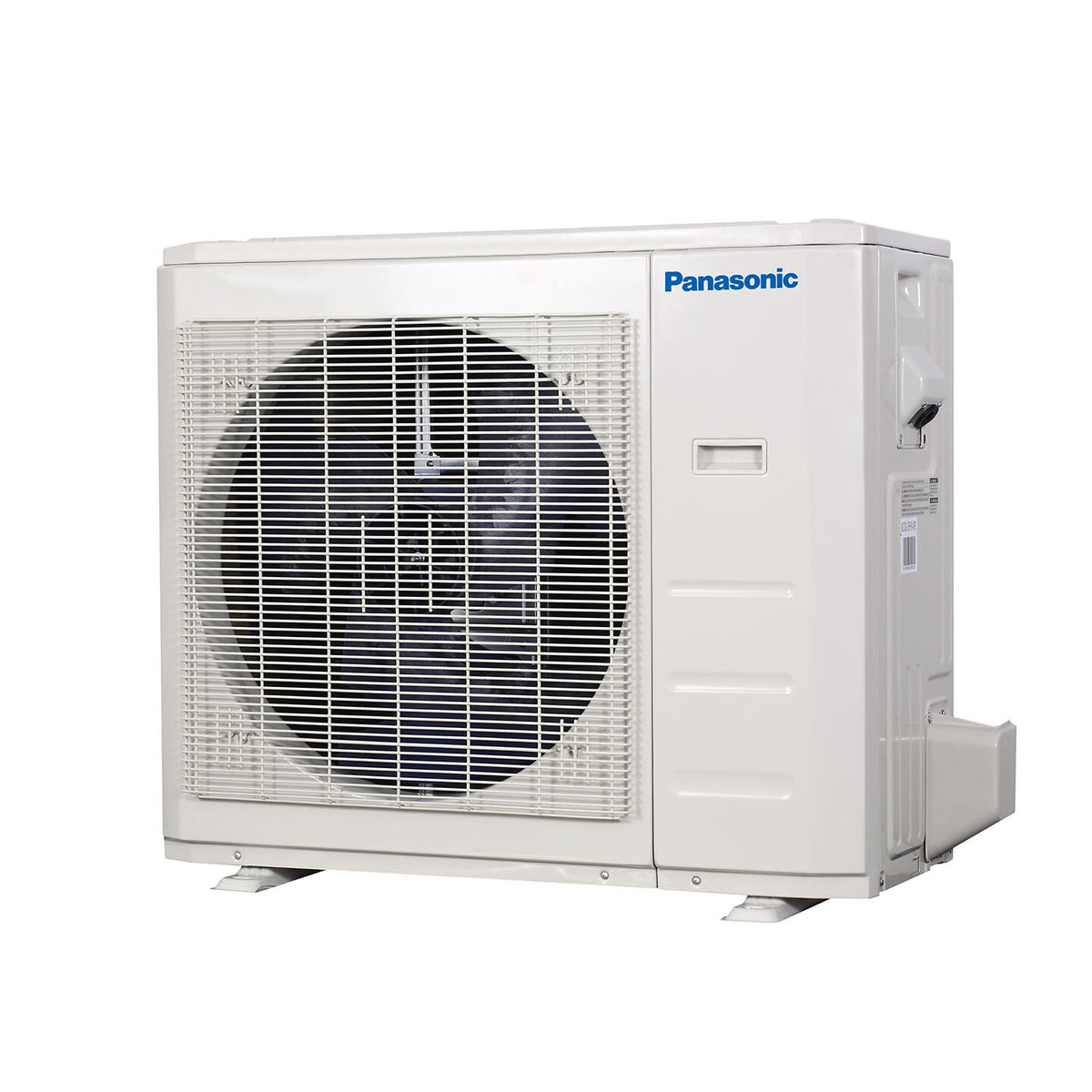

The Panasonic CU-M24BAHU is a 2-ton inverter heat pump outdoor condenser designed for the INTERIOS Central Heat Pump System. Paired with the CS-HM24BAHU multi-position air handler, it provides 24,000 BTU/h of rated cooling capacity and 26,000 BTU/h of rated heating capacity. The system uses R454B refrigerant and is designed for whole-home heating and cooling, with heating operation down to -13°F (-25°C).
Key Features
- 2-Ton Capacity: Provides 24,000 BTU/h rated cooling capacity and 26,000 BTU/h rated heating capacity.
- Inverter Heat Pump Condenser: Variable-capacity inverter technology provides efficient heating and cooling operation.
- Cold Climate Heating: Designed for heating operation down to -13°F (-25°C).
- 5°F Heating Performance: Delivers 21,600 BTU/h at 5°F with a COP of 1.87.
- R454B Refrigerant: Uses R454B refrigerant for a lower-GWP HVAC system design.
- ENERGY STAR Certified: The M24BAHU system is ENERGY STAR certified.
- Multi-Position Air Handler Compatibility: Designed to operate with the CS-HM24BAHU air handler.
- Quiet Operation: The outdoor unit has a rated noise level of 60 dBA.
- Auxiliary Heat Options: Compatible auxiliary electric heat kits are available for additional heating support.
- Flexible Controls: The system supports wired and wireless remote controls.
Specifications
- Brand: Panasonic
- Series: INTERIOS
- Model: CU-M24BAHU
- System: M24BAHU
- Unit Type: Outdoor Inverter Heat Pump Condenser
- Capacity Class: 2 Ton
- Rated Cooling Capacity: 24,000 BTU/h
- Cooling Capacity Range: 7,200–27,000 BTU/h
- Rated Heating Capacity at 47°F: 26,000 BTU/h
- Heating Capacity Range at 47°F: 7,100–30,000 BTU/h
- Heating Capacity at 5°F: 21,600 BTU/h
- COP at 5°F: 1.87
- Moisture Removal: 2.38 L/h
- SEER2: 18.1
- EER2: 11.0
- HSPF2 Region 4 / Region 5: 9.7 / 7.7
- COP: 3.18
- Refrigerant: R454B
- Outdoor Airflow: 1,765.7 CFM
- Outdoor Noise Level: 60 dBA
- Cooling Operating Range: -13°F to 122°F (-25°C to 50°C)
- Heating Operation: Down to -13°F (-25°C)
Electrical Specifications
- Power Supply: 208/230V, Single Phase, 60Hz
- Outdoor MCA: 19 A
- Outdoor MOP: 20 A
- Outdoor Compressor: Rotary
- Compressor Model: KTM240D46UKT2
- Refrigerant Oil: VG74
- Refrigerant Oil Charge: 620 mL
- System Power Input – Heating: 2,396 W (440–2,730 W)
Outdoor Unit Construction
- Outdoor Dimensions (W x D x H): 35.04 x 13.46 x 26.50 in.
- Outdoor Dimensions (W x D x H): 890 x 342 x 673 mm
- Outdoor Unit Net Weight: 102.29 lb (46.4 kg)
- Outdoor Unit Gross Weight: 109.13 lb (49.5 kg)
- Outdoor Package Dimensions (W x D x H): 39.17 x 15.67 x 29.13 in.
- Outdoor Package Dimensions (W x D x H): 995 x 398 x 740 mm
Compatible Indoor Unit
- Indoor Unit: Panasonic CS-HM24BAHU
- Indoor Unit Type: Multi-Position Central Air Handler
- Indoor Dimensions (H x W x D): 45 x 21 x 17-1/2 in.
- Indoor Dimensions (H x W x D): 1,143 x 534 x 445 mm
- Indoor Unit Net Weight: 105.60 lb (47.9 kg)
Applications
- Whole-home heating and cooling
- Residential central HVAC systems
- New construction
- HVAC replacement and retrofit projects
- Multi-position air-handler installations
- Cold-climate heating applications
