Product Description

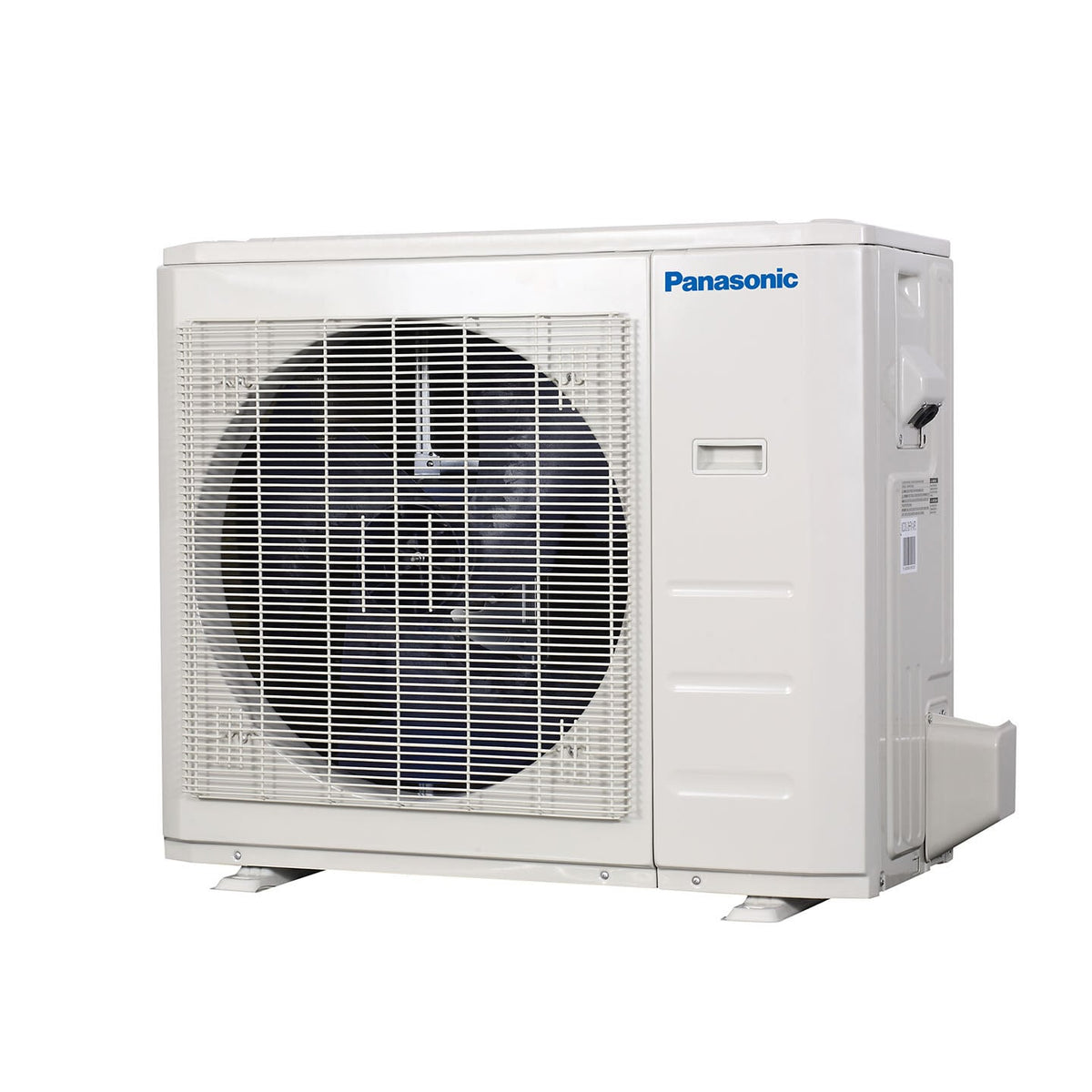

The Panasonic CU-M36BAHU is a 3-ton inverter heat pump outdoor condenser designed for the INTERIOS Central Heat Pump System. Paired with the CS-HM36BAHU multi-position air handler, it provides 36,000 BTU/h of rated cooling and heating capacity. The system uses R454B refrigerant and is designed for whole-home heating and cooling, with heating operation down to -13°F (-25°C).
Key Features
- 3-Ton Capacity: Provides 36,000 BTU/h rated cooling and heating capacity.
- Inverter Heat Pump Condenser: Variable-capacity inverter technology helps provide efficient heating and cooling operation.
- 5°F Heating Performance: Delivers 27,000 BTU/h at 5°F with a COP of 2.0.
- Cold Climate Heating: Designed for heating operation down to -13°F (-25°C).
- R454B Refrigerant: Uses R454B refrigerant for a lower-GWP HVAC system design.
- ENERGY STAR Certified: The M36BAHU system is ENERGY STAR certified.
- Multi-Position Air Handler Compatibility: Designed to operate with the CS-HM36BAHU air handler.
- Quiet Operation: The outdoor unit is designed for quiet operation.
- Auxiliary Heat Options: Compatible auxiliary electric heat kits are available for additional heating support.
- Wired & Wireless Controls: The INTERIOS system supports wired and wireless remote controls.
Specifications
- Brand: Panasonic
- Series: INTERIOS
- Model: CU-M36BAHU
- System: M36BAHU
- Unit Type: Outdoor Inverter Heat Pump Condenser
- Capacity Class: 3 Ton
- Rated Cooling Capacity: 36,000 BTU/h
- Rated Heating Capacity: 36,000 BTU/h
- Heating Capacity at 5°F: 27,000 BTU/h
- COP at 5°F: 2.0
- SEER2: 16.1
- EER2: 10.0
- HSPF2 Region 4 / Region 5: 8.7 / 7.0
- Refrigerant: R454B
- Power Supply: 208/230V, Single Phase, 60Hz
- Outdoor Dimensions (H x W x D): 31-7/8 x 37-1/4 x 16-1/8 in.
- Outdoor Dimensions (H x W x D): 810 x 946 x 410 mm
- Outdoor Unit Weight: 153.2 lb (69.5 kg)
Electrical Specifications
- Outdoor Power Supply: 208/230V, Single Phase, 60Hz
- Outdoor MCA: 29.0 A
- Outdoor MOP: 30 A
- Communication Wiring: AWG 20-2
- Compressor Type: Rotary
- Compressor Model: EKPQ420D1UMUA
- Refrigerant Oil: VG75
- Refrigerant Oil Charge: 1,460 mL
- Outdoor Compressor RLA: 20.5 A
- Outdoor Fan Motor RLA: 2.4 A
- Outdoor Fan Motor: 250 W
Outdoor Unit Construction
- Outdoor Airflow: 3,001.8 CFM
- Outdoor Noise Level: Approximately 64 dBA
- Outdoor Dimensions (W x D x H): 38.58 x 16.34 x 38.39 in.
- Outdoor Dimensions (W x D x H): 980 x 415 x 975 mm
- Outdoor Unit Net Weight: 153.2 lb (69.5 kg)
- Outdoor Unit Package Dimensions (W x D x H): 45.08 x 19.68 x 42.52 in.
- Outdoor Unit Package Dimensions (W x D x H): 1,145 x 500 x 1,080 mm
- Outdoor Package Weight: Approximately 175 lb
Operating Conditions
- Cooling Operating Range: -13°F to 122°F (-25°C to 50°C)
- Heating Operation: Down to -13°F (-25°C)
Compatible Indoor Unit
- Indoor Unit: Panasonic CS-HM36BAHU
- Indoor Unit Type: Multi-Position Central Air Handler
- Indoor Dimensions (H x W x D): 49 x 21 x 21 in.
- Indoor Dimensions (H x W x D): 1,245 x 534 x 534 mm
- Indoor Unit Weight: 129.4 lb (58.7 kg)
Applications
- Whole-home heating and cooling
- Residential central HVAC systems
- New construction
- HVAC replacement and retrofit projects
- Multi-position air-handler installations
- Cold-climate heating applications
