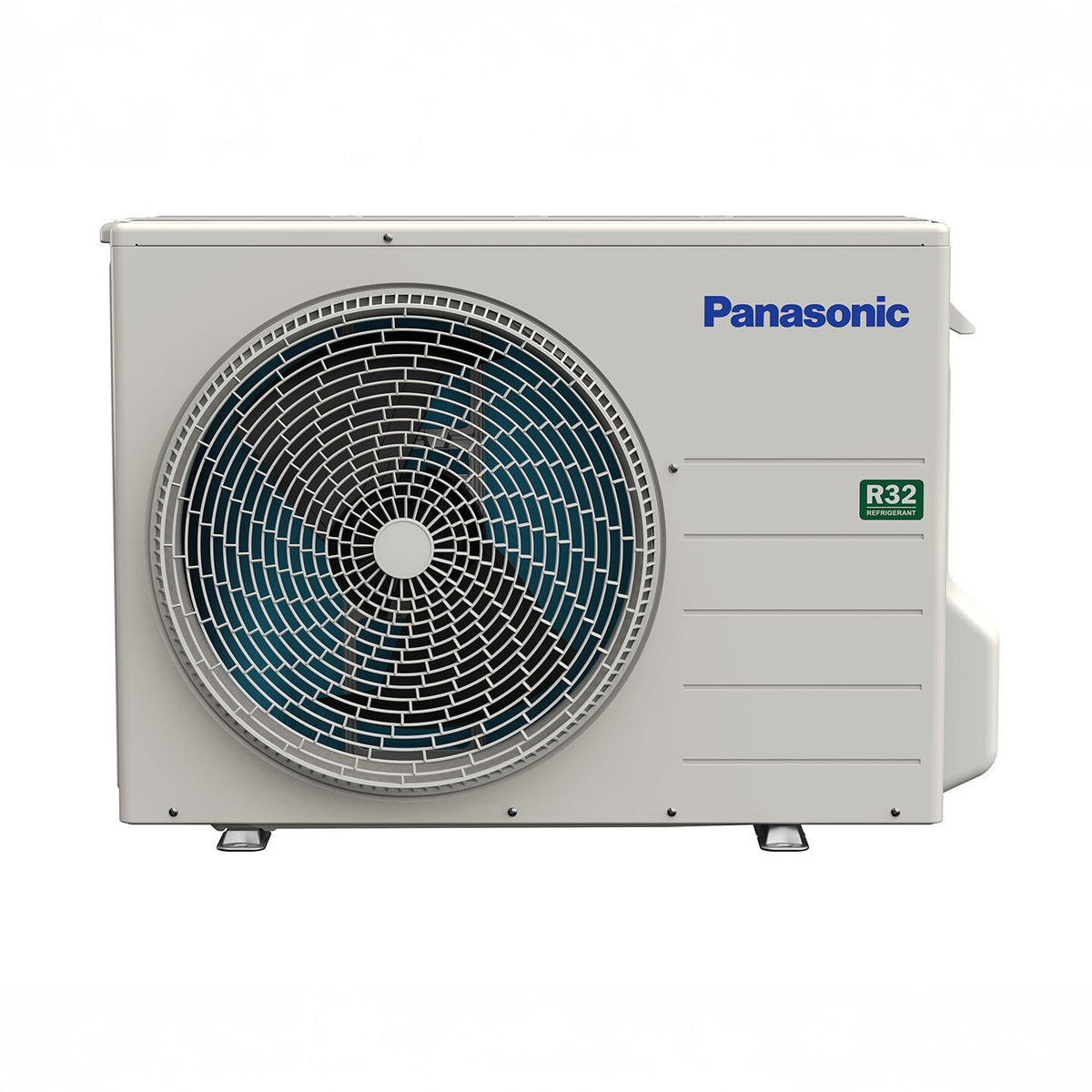

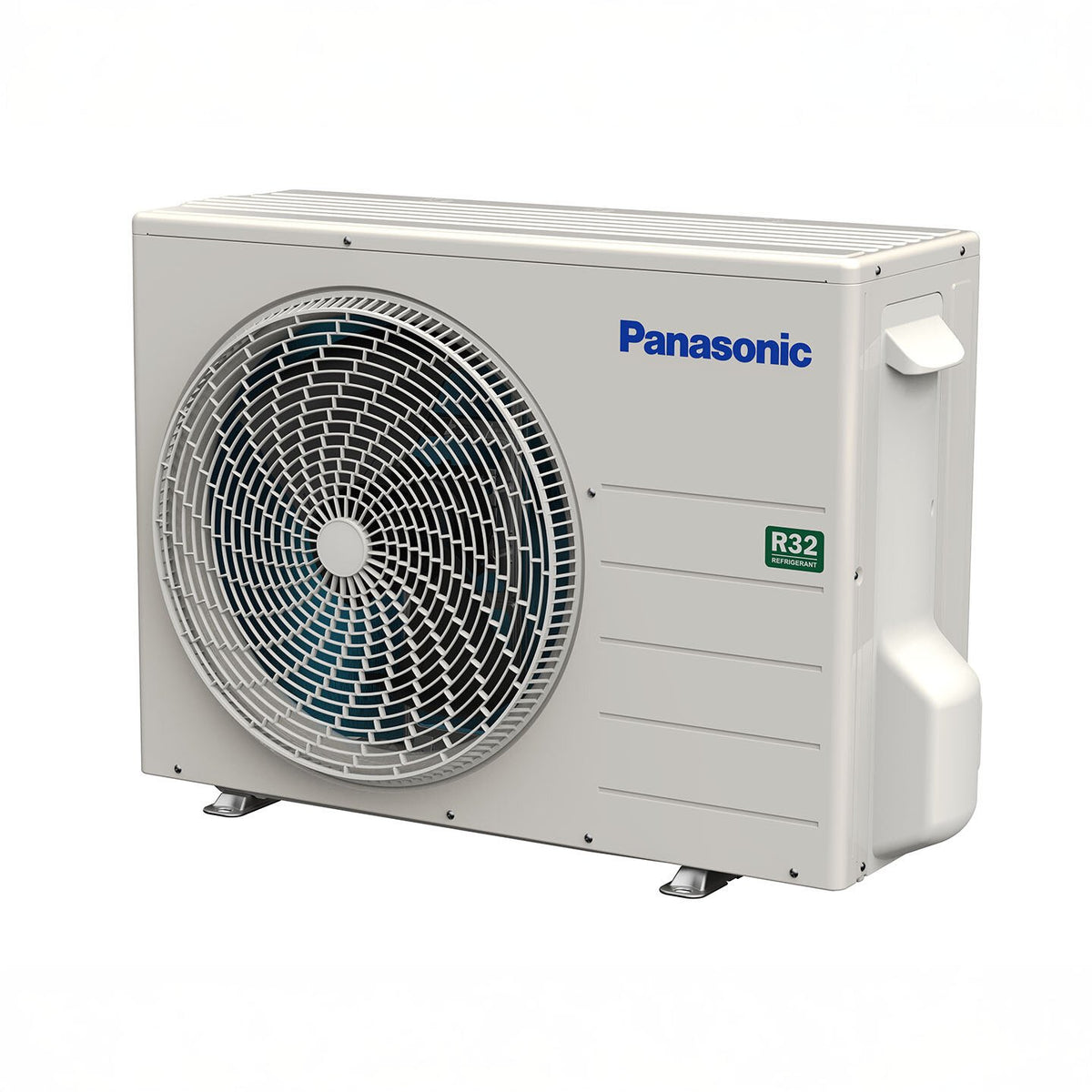

Panasonic CU-XZ12AKUAC ClimaPure XZ Series 12,000 BTU Ductless Mini Split Outdoor Unit

Product Description

The Panasonic ClimaPure XZ Series CU-XZ12AKUAC is the outdoor unit designed for the XZ12AKUA single-zone ductless mini-split heating and cooling system. It pairs with the indoor unit to provide efficient zoned comfort with inverter-driven operation and cold-climate heating performance.

The system delivers a rated cooling capacity of 11,500 BTU/h and a rated heating capacity of 12,000 BTU/h, with variable capacity operation to help maintain comfortable indoor temperatures while managing energy consumption. The system supports cold-climate heating operation down to -15°F (-26°C) and uses R32 refrigerant.

The CU-XZ12AKUAC features an inverter-driven hermetic rotary compressor with a brushless 6-pole motor. When matched with the compatible Panasonic indoor unit, the system achieves ENERGY STAR® Cold Climate certification and provides efficient heating and cooling for residential applications.

Key Features

• ClimaPure XZ Series outdoor unit
• Designed for the XZ12AKUA single-split ductless system
• Compatible indoor unit: CS-XZ12AKUAW
• Rated cooling capacity of 11,500 BTU/h
• Cooling capacity range of 2,900–16,100 BTU/h
• Rated heating capacity of 12,000 BTU/h
• Heating capacity range of 3,200–23,600 BTU/h
• Cold-climate heating operation down to -15°F (-26°C)
• Inverter-driven hermetic rotary compressor
• Brushless 6-pole compressor motor
• R32 refrigerant
• ENERGY STAR® Cold Climate Certified system
• 208–230V single-phase, 60Hz power supply
• Designed for single-zone ductless heating and cooling

Specifications

• Brand: Panasonic
• Series: ClimaPure XZ
• Model: CU-XZ12AKUAC
• System: XZ12AKUA
• Product Type: Ductless Mini-Split Outdoor Unit
• System Type: Single-Split Heat Pump
• Cooling Capacity: 11,500 BTU/h rated
• Cooling Capacity Range: 2,900–16,100 BTU/h
• Heating Capacity: 12,000 BTU/h rated
• Heating Capacity Range: 3,200–23,600 BTU/h
• Power Supply: 208–230V, 1 Phase, 60Hz
• Refrigerant: R32
• Compressor Type: Inverter-driven hermetic rotary
• Compressor Motor: Brushless, 6-pole
• Compressor Output: 900 W
• Maximum Current: 8.9 A
• Maximum Input Power: 1,900 W
• Starting Current: 4.0 A
• Outdoor Unit Dimensions: 24-1/2" H x 32-15/32" W x 11-25/32" D
• Outdoor Unit Dimensions: 622 x 824 x 299 mm
• Outdoor Unit Weight: 79 lbs (36 kg)

Performance Attributes

• SEER2: 25.00
• EER2: 14.35
• HSPF2 Region 4: 11.70
• HSPF2 Region 5: 8.90
• COP: 4.44
• Cooling Capacity – Min / Rated / Max: 2,900 / 11,500 / 16,100 BTU/h
• Heating Capacity – Min / Rated / Max: 3,200 / 12,000 / 23,600 BTU/h
• Cooling Power Input – Min / Rated / Max: 0.17 / 0.80 / 1.20 kW
• Heating Power Input – Min / Rated / Max: 0.16 / 0.79 / 1.90 kW
• Heating Capacity at 17°F: 16,500 BTU/h
• Maximum Heating Capacity at 5°F: 13,700 BTU/h
• Outdoor Noise – Cooling: 48 dB-A
• Outdoor Noise – Heating: 49 dB-A
• Outdoor Sound Power Level – Cooling: 63 dB
• Outdoor Sound Power Level – Heating: 64 dB

System Attributes

• Outdoor Unit: CU-XZ12AKUAC
• Installation Type: Ductless
• Operation: Heating and Cooling
• Cold Climate Heating: Down to -15°F (-26°C)
• Refrigerant Type: R32
• Power Supply: 208–230V / 1 Phase / 60Hz
• Certification: ENERGY STAR® Cold Climate Certified
• Rating Standard: AHRI 210/240
