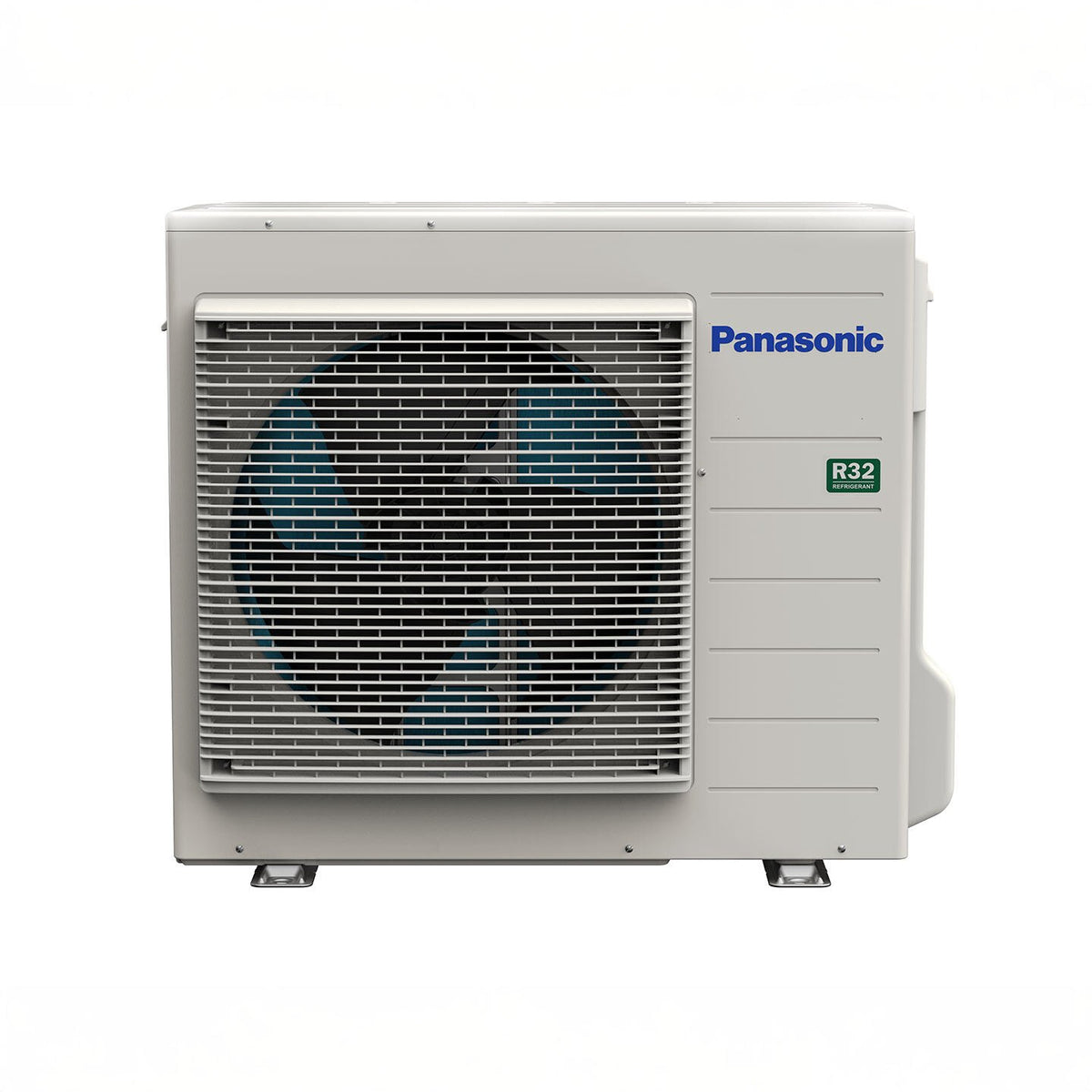

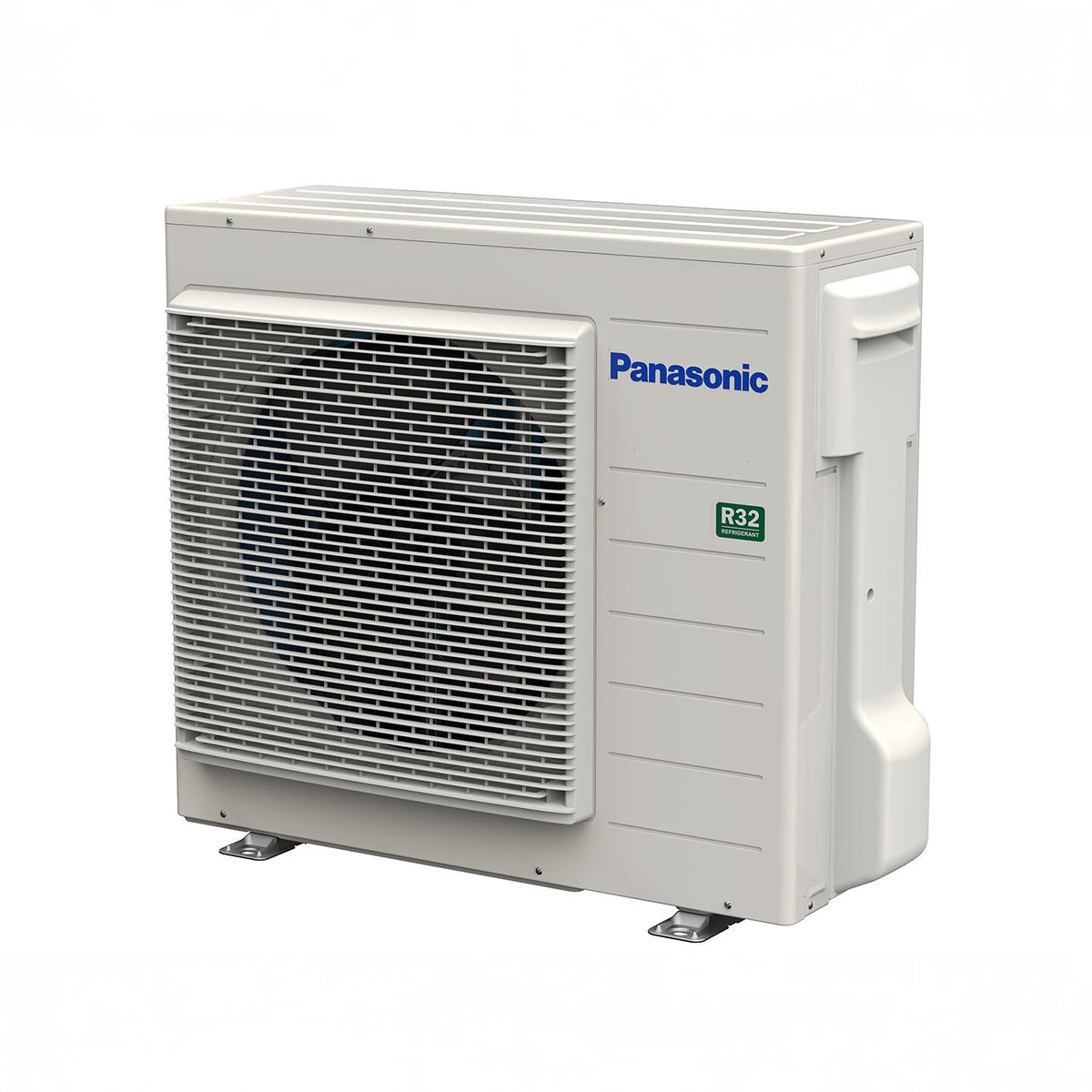

Panasonic CU-XZ18AKUAC ClimaPure XZ Series 18,000 BTU Ductless Mini Split Outdoor Unit

Product Description

The Panasonic ClimaPure XZ Series CU-XZ18AKUAC is the outdoor unit designed for the XZ18AKUA single-split ductless heat pump system. It pairs with the indoor unit to provide efficient heating and cooling with inverter-driven variable-capacity operation.

The matched system delivers a rated cooling capacity of 17,200 BTU/h and a rated heating capacity of 20,400 BTU/h. Cooling capacity ranges from 6,100 to 22,200 BTU/h, while heating capacity ranges from 6,800 to 30,400 BTU/h. The system is designed for cold-climate heating operation down to -15°F (-26°C) and uses R32 refrigerant.

The CU-XZ18AKUAC uses an inverter-driven hermetic rotary compressor with a brushless 6-pole motor. When matched with the compatible indoor unit, the system achieves SEER2 of 22.00, EER2 of 13.65 and HSPF2 of 11.70. Panasonic also lists the XZ18AKUA system as ENERGY STAR® Cold Climate Certified.

Key Features

• ClimaPure XZ Series outdoor unit
• Designed for the XZ18AKUA single-split ductless system
• Rated cooling capacity of 17,200 BTU/h
• Cooling capacity range of 6,100–22,200 BTU/h
• Rated heating capacity of 20,400 BTU/h
• Heating capacity range of 6,800–30,400 BTU/h
• Cold-climate heating operation down to -15°F (-26°C)
• Inverter-driven hermetic rotary compressor
• Brushless 6-pole compressor motor
• R32 refrigerant
• ENERGY STAR® Cold Climate Certified system
• 208–230V single-phase, 60Hz power supply
• Designed for ductless heating and cooling applications

Specifications

• Brand: Panasonic
• Series: ClimaPure XZ
• Model: CU-XZ18AKUAC
• System: XZ18AKUA
• Product Type: Ductless Mini-Split Outdoor Unit
• System Type: Single-Split Heat Pump
• Cooling Capacity: 17,200 BTU/h rated
• Cooling Capacity Range: 6,100–22,200 BTU/h
• Cooling Capacity: 5.04 kW
• Heating Capacity: 20,400 BTU/h rated
• Heating Capacity Range: 6,800–30,400 BTU/h
• Heating Capacity: 5.97 kW
• Power Supply: 208–230V, 1 Phase, 60Hz
• Refrigerant: R32
• Compressor Type: Inverter-driven hermetic rotary
• Compressor Motor: Brushless, 6-pole
• Compressor Output: 1,500 W
• Maximum Current: 11.3 A
• Maximum Input Power: 2,600 W
• Starting Current: 7.6 A

Performance Attributes

• SEER2: 22.00
• EER2: 13.65
• HSPF2 Region 4: 11.70
• HSPF2 Region 5: 8.80
• COP: 3.88
• Cooling Capacity – Min / Rated / Max: 6,100 / 17,200 / 22,200 BTU/h
• Heating Capacity – Min / Rated / Max: 6,800 / 20,400 / 30,400 BTU/h
• Cooling Power Input – Min / Rated / Max: 0.44 / 1.26 / 1.66 kW
• Heating Power Input – Min / Rated / Max: 0.40 / 1.54 / 2.60 kW
• Heating Capacity at 17°F: 21,000 BTU/h
• Maximum Heating Capacity at 5°F: 17,800 BTU/h
• Power Input at 17°F: 2,460 W

Electrical Attributes

• Power Supply: 208–230V / 1 Phase / 60Hz
• Maximum Current: 11.3 A
• Maximum Input Power: 2,600 W
• Starting Current: 7.6 A
• Cooling Current at 208V: 6.30 A
• Cooling Current at 230V: 5.70 A
• Heating Current at 208V: 7.60 A
• Heating Current at 230V: 6.90 A

Noise Attributes

• Outdoor Noise – Cooling: 50 dB-A
• Outdoor Noise – Heating: 52 dB-A
• Outdoor Sound Power Level – Cooling: 64 dB
• Outdoor Sound Power Level – Heating: 66 dB

System Attributes

• Outdoor Unit: CU-XZ18AKUAC
• Installation Type: Ductless
• Operation: Heating and Cooling
• Cold Climate Heating: Down to -15°F (-26°C)
• Refrigerant Type: R32
• Power Supply: 208–230V / 1 Phase / 60Hz
• Energy Certification: ENERGY STAR® Cold Climate Certified
• Rating Standard: AHRI 210/240
