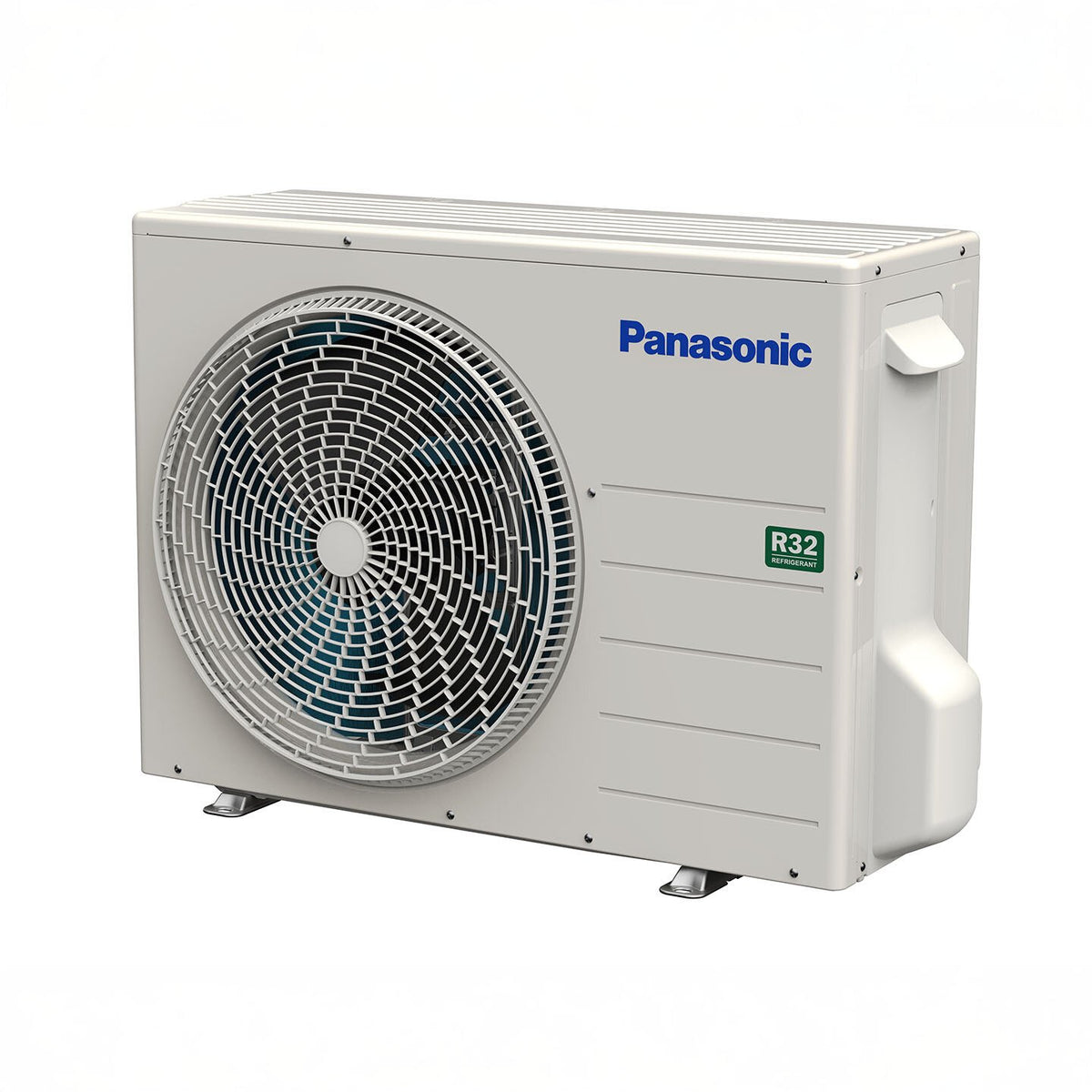

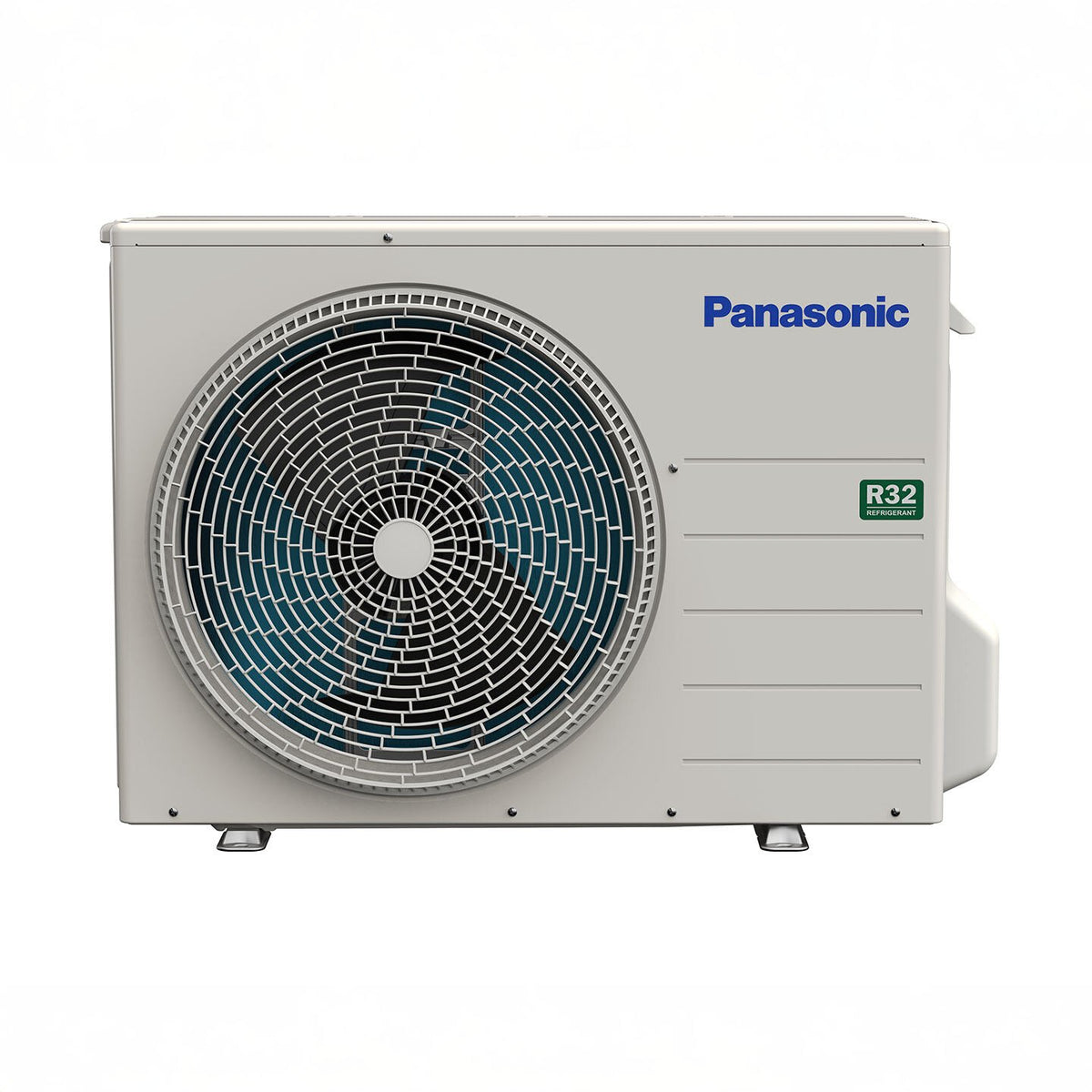

Panasonic CU-XZ9AKUAC ClimaPure XZ Series 9,000 BTU Ductless Mini Split Outdoor Unit

Product Description

The Panasonic ClimaPure XZ Series CU-XZ9AKUAC is the outdoor unit designed for the XZ9AKUA single-zone ductless mini-split heating and cooling system. It pairs with the indoor unit to provide efficient zoned comfort with inverter-driven operation and cold-climate heating capability.

The system provides a rated cooling capacity of 8,700 BTU/h and a rated heating capacity of 10,900 BTU/h, with capacity modulation to match changing comfort requirements. The system is designed for cold-climate operation down to -15°F (-26°C) and uses R32 refrigerant. It is also ENERGY STAR® Cold Climate Certified when properly matched and installed.

The CU-XZ9AKUAC features an inverter-driven hermetic rotary compressor with a brushless 6-pole motor. Its outdoor unit design supports efficient operation while maintaining relatively low outdoor sound levels for residential and light commercial applications.

Key Features

• Outdoor unit for Panasonic ClimaPure XZ9AKUA single-split system
• Rated cooling capacity of 8,700 BTU/h
• Cooling capacity range of 2,900–12,600 BTU/h
• Rated heating capacity of 10,900 BTU/h
• Heating capacity range of 3,200–19,900 BTU/h
• Cold-climate heating operation down to -15°F (-26°C)
• Inverter-driven hermetic rotary compressor
• Brushless 6-pole compressor motor
• R32 refrigerant
• ENERGY STAR® Cold Climate Certified system
• 208–230V, single-phase, 60Hz power supply
• Built for single-zone ductless mini-split applications

Specifications

• Brand: Panasonic
• Series: ClimaPure XZ
• Model: CU-XZ9AKUAC
• System: XZ9AKUA
• Product Type: Ductless Mini-Split Outdoor Unit
• Compatible Indoor Unit: CS-XZ9AKUAW
• Cooling Capacity: 8,700 BTU/h rated
• Cooling Capacity Range: 2,900–12,600 BTU/h
• Heating Capacity: 10,900 BTU/h rated
• Heating Capacity Range: 3,200–19,900 BTU/h
• Power Supply: 208–230V, 1 Phase, 60Hz
• Refrigerant: R32
• Compressor Type: Inverter-driven hermetic rotary
• Compressor Motor: Brushless, 6-pole
• Compressor Output: 900 W
• Maximum Current: 7.8 A
• Maximum Input Power: 1,780 W
• Starting Current: 3.4 A
• Outdoor Unit Dimensions: 24-1/2" H x 32-15/32" W x 11-25/32" D
• Outdoor Unit Dimensions: 622 x 824 x 299 mm
• Outdoor Unit Weight: 79 lbs (36 kg)

Performance Attributes

• SEER2: 27.50
• EER2: 16.40
• HSPF2 Region 4: 12.00
• HSPF2 Region 5: 9.20
• COP: 4.79
• Cooling Power Input: 0.17–0.89 kW
• Heating Power Input: 0.16–1.78 kW
• Heating Capacity at 17°F: 14,500 BTU/h rated
• Maximum Heating Capacity at 5°F: 11,700 BTU/h
• Outdoor Noise – Cooling: 47 dB-A
• Outdoor Noise – Heating: 48 dB-A
• Outdoor Sound Power Level – Cooling: 62 dB
• Outdoor Sound Power Level – Heating: 63 dB

System Attributes

• Indoor Unit: CS-XZ9AKUAW
• Outdoor Unit: CU-XZ9AKUAC
• System Type: Single-Split Heat Pump
• Installation Type: Ductless
• Operation: Heating and Cooling
• Cold Climate Heating: Up to -15°F (-26°C)
• Refrigerant Type: R32
• Energy Certification: ENERGY STAR® Cold Climate Certified
